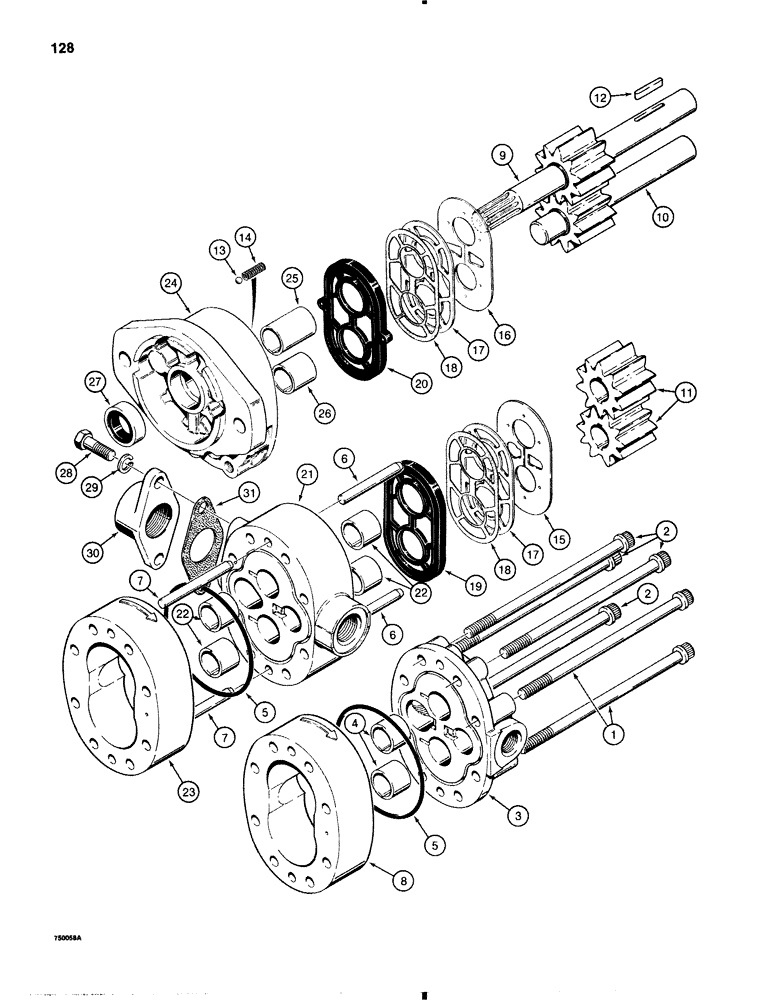

Запчасти Case IH 1845B (128) - D82186 DUAL PUMP (06) - POWER TRAIN

D82186

PUMP

ASSEMBLY hydraulic, new, Cessna No 24388-RAM, if used

1шт.

363595A1R

REMAN-HYD PUMP

1845B Reman for new P/N D82186

1шт.

363595A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

Used prior to P.I.N. 9880983 P.I.N. 9880983 and after use D121753 pump assembly

1шт.

DR82186

REMAN-INJECTION PUMP

PUMP ASSEMBLY hydraulic, remanufactured, component parts shown

1шт.

363595A1R

REMAN-HYD PUMP

1845B Reman for new P/N DR82186

1шт.

363595A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

on this page do not apply to the remanufactured assembly

1шт.

DC82186

CORE-HYDRAULIC PUMP

RETURN NUMBER use this part number to return the pump core for credit when using a remanufactured assembly, Inc: Ref. 1 - 31

1шт.

1

166-40

12 PT SCREW,Flg, 5/16" - 18 x 6", Gr 8

BOLT Ferry head, 5/16" - 18 NC x 6"

4шт.

2

166-20

12 PT SCREW,Flg, 5/16" - 18 x 5 3/4", Gr 8

BOLT Ferry head, 5/16" - 18 NC x 5-3/4"

4шт.

3

N6031

COVER

port end, Inc: Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING cover

2шт.

5

H758599

O-RING,2.989" ID x 3.129" OD

port end cover

2шт.

Part of seal kit, P/N N6030

1шт.

6

A7975

PIN

DOWEL PIN, 2-1/4", 57 mm long

2шт.

7

D51707

PIN

DOWEL PIN 2-1/2", 64 mm long

2шт.

8

D71206

HOUSING

GEAR HOUSING port endp

1шт.

9

D71207

GEAR

DRIVE GEAR AND SHAFT pump

1шт.

10

N6032

GEAR

DRIVEN GEAR AND SHAFT pump

1шт.

11

D71205

GEAR

drive and driven, port end

2шт.

12

D71209

KEY

1/8" x 3/16" x 13/32"

1шт.

13

211-205

BALL

steel

2шт.

Part of seal kit, P/N N6030

1шт.

14

F9883

SPRING

ball

2шт.

Part of seal kit, P/N N6030

1шт.

15

H325613

DIAPHRAGM

port end

1шт.

Part of seal kit, P/N N6030

1шт.

16

D77645

DIAPHRAGM

shaft end

1шт.

Part of seal kit, P/N N6030

1шт.

17

H366922

GASKET

backup

2шт.

Part of seal kit, P/N N6030

1шт.

18

H262477

GUARD

PROTECTOR gasket

2шт.

Part of seal kit, P/N N6030

1шт.

19

H264994

SEAL

diaphragm, port end

1шт.

Part of seal kit, P/N N6030

1шт.

20

H262469

SEAL

diaphragm, shaft end

1шт.

Part of seal kit, P/N N6030

1шт.

21

N6618

HOUSING

BODY center, Inc: Ref. 22

1шт.

22

NSS

NOT SOLD SEPARAT

BUSHING body

4шт.

23

D56912

HOUSING

GEAR HOUSING shaft end

1шт.

24

R33009

COVER

shaft end, Inc: Ref. 25 - 26

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING cover, long

1шт.

26

NSS

NOT SOLD SEPARAT

BUSHING cover, short

1шт.

27

F11406

SEAL

shaft

1шт.

Part of seal kit, P/N N6030

1шт.

28

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

hex head, 3/8" - 16 NC x 1", grade 8

2шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

30

H173831

ADAPTER

port

1шт.

31

H173823

GASKET

port

1шт.

Part of seal kit, P/N N6030

1шт.

N6030

SEAL KIT

seal, Includes: Ref. 5, 13, 14, 15, 16, 17, 18, 19, 20, 27, 31

1шт.
