Запчасти Case IH 1845B (122) - HYDROSTATIC DRIVE HYDRAULIC CIRCUIT, FILTER TO PUMP AND PUMP TO RESERVOIR (06) - POWER TRAIN

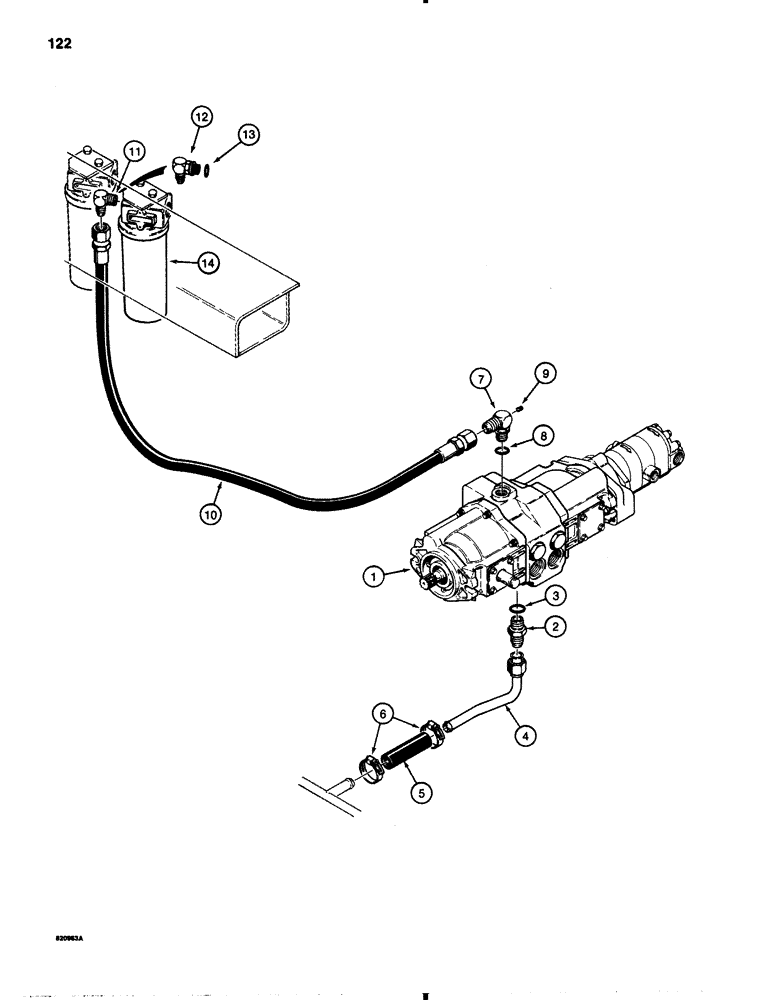

Схема запчастей Case IH 1845B - (122) - HYDROSTATIC DRIVE HYDRAULIC CIRCUIT, FILTER TO PUMP AND PUMP TO RESERVOIR (06) - POWER TRAIN
8
9
7
12
13
11
1
2
14
5
10
4
6
3

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP tandem, parts list and mounting parts fig. 126

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, male, Inc: Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

adapter

1шт.

4

D120862

TUBE ASSY.

TUBE pump drain

1шт.

5

REF

INSTRUCTION

HOSE tube to reservoir, 3/4", 19 mm ID x 4-1/2", 114 mm long, cut from S118382 hose, see below

1шт.

6

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

7

R30286

FITTING

ELBOW 90 degree, male

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow, Inc: Ref. 7

1шт.

9

221-849

PLUG,Hex Soc, 1/8"-27

hex socket head, 1/8" NPT

1шт.

10

R21395

HOSE

from filter to pump, 62", 1575 mm long

1шт.

11

218-1046

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

90 degree, male, useds on models with D126666 filter, see fig. 140 for filter identification, if used

1шт.

12

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90 degree, adjustable, used on models with D131330 filter, see fig. 140 for for filter identification, if used, Inc: Ref. 13

1шт.

13

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

elbow

1шт.

14

REF

INSTRUCTION

FILTER hydraulic oil, parts list fig. 140

2шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

TIE STRAP hose to D69218 tube, reference number 8, fig. 118, not shown

1шт.

S118382

HOSE,0.75" ID x 240.00", SAE 100R4

0.75" ID x 240.00" Bulk, SAE 100R4

1шт.

Выбрано товаров: 16
