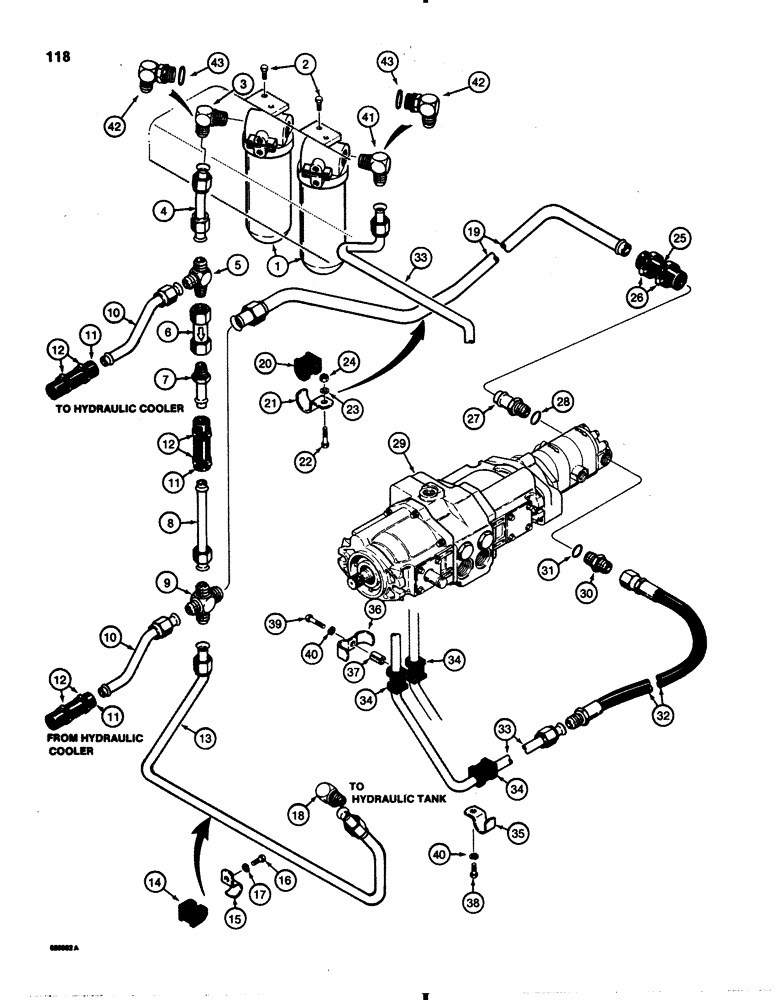

Запчасти Case IH 1845B (118) - HYDROSTATIC DRIVE HYDRAULIC CIRCUIT, FILTER TO COOLER, RESERVOIR, AND PUMP (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
FILTER hydraulic oil, parts list Figure 140
2шт.
3
218-1046
ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF
90 degree, male, used on models with D126666 filter, see Fig. 140 for filter identification, if used
1шт.
4
D120515
TUBE charge circuit outlet
1шт.
5
218-616
TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Run
male, to oil cooler
1шт.
6
R27233
VALVE
BYPASS VALVE charge circuit
1шт.
7
217-155
FITTING,3/4" Hose Barb x 3/4" Male NPTF
STEM FITTING hose
1шт.
8
D69218
TUBE,0.75" OD x 8.5" L
bypass valve to cross
1шт.
9
D94500
TUBE,1.81, 1.78" L
CROSS male, cooler and bypass tubes
1шт.
10
D74996
TUBE oil cooler to cross 0.75" OD x 2.84, 8.3" L
2шт.
11
REF
INSTRUCTION
HOSE 3/4", 19 mm ID x 4-1/2", 114 mm long, cut from S118382 hose, see below
3шт.
12
214-255
HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm
6шт.
13
D70463
TUBE,0.75" OD x 10.45, 26.56" L
cross to reservoir
1шт.
14
D74182
GROMMET,3/4" ID x 1.46" L
INSULATOR tube
1шт.
15
D74192
CLAMP
tube
1шт.
17
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
18
218-486
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF
90 degree, male
1шт.
19
D122651
TUBE ASSY.
TUBE cross to pump, used on models with D82186 pump, see fig. 128 for pump identification
1шт.
19
D123843
TUBE ASSY.
TUBE cross to pump, used on models with D121753 pump, see page 130 for pump identification
1шт.
20
D67297
BLOCK
INSULATOR tube
1шт.
21
D68846
CLAMP
tube
1шт.
22
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
23
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
24
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
1шт.
S118382
HOSE,0.75" ID x 240.00", SAE 100R4
0.75" ID x 240.00" Bulk, SAE 100R4
1шт.
25
REF
INSTRUCTION
HOSE 1" 25 mm ID x 4", 102 mm long, cut from S118383 hose, see below
1шт.
26
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP hose
2шт.
27
217-390
FITTING,1" Hose Barb x 1-1/16" - 12 Male ORB
STEM FITTING hose to pump, used on models with D82186 pump, see Fig. 128 for pump identification
1шт.
28
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
stem fitting, used with 217-390 stem fitting
1шт.
28
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
stem fitting, used with 217-179 stem fitting
1шт.
29
REF
INSTRUCTION
PUMP tandem, parts list and mounting parts Figs. 128 or 130
1шт.
30
218-5353
HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring
ADAPTER straight, male, used on models with D82186 pump, see Fig. 128 for pump identification
1шт.
30
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
ADAPTER straight, male, used on models with D121753 pump, see Fig. 130 for pump identification, Inc: Ref. 31
1шт.
31
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
used with 218- 5064 adapter
1шт.
32
D92879
HOSE
from pump, charge circuit, 33", 850 mm long
1шт.
33
D120517
TUBE
, Serial Range: TUBE-filter
1шт.
34
D74182
GROMMET,3/4" ID x 1.46" L
INSULATOR tube
3шт.
35
D74192
CLAMP
single tube
1шт.
36
D74185
CLAMP
double tube
1шт.
37
D76210
SPACER
double tube clamp
1шт.
39
113-233
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
1шт.
40
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
41
218-1046
ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF
90 degree, male, used on models with D126666 filter, see Fig. 140 for filter identification, if used
1шт.
42
218-5118
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
90 degree adjustable, used on models with D131330 filter, see Fig. 140 for filter identification, if used, Inc: Ref. 43
2шт.
43
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
elbow
1шт.
S118383
HOSE,1.00" ID x 192.00", SAE 100R3
1.00" ID x 192.00" Bulk, SAE 100R3
1шт.
31
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk, used with 218- 5353 adapter
1шт.
Выбрано товаров: 49
