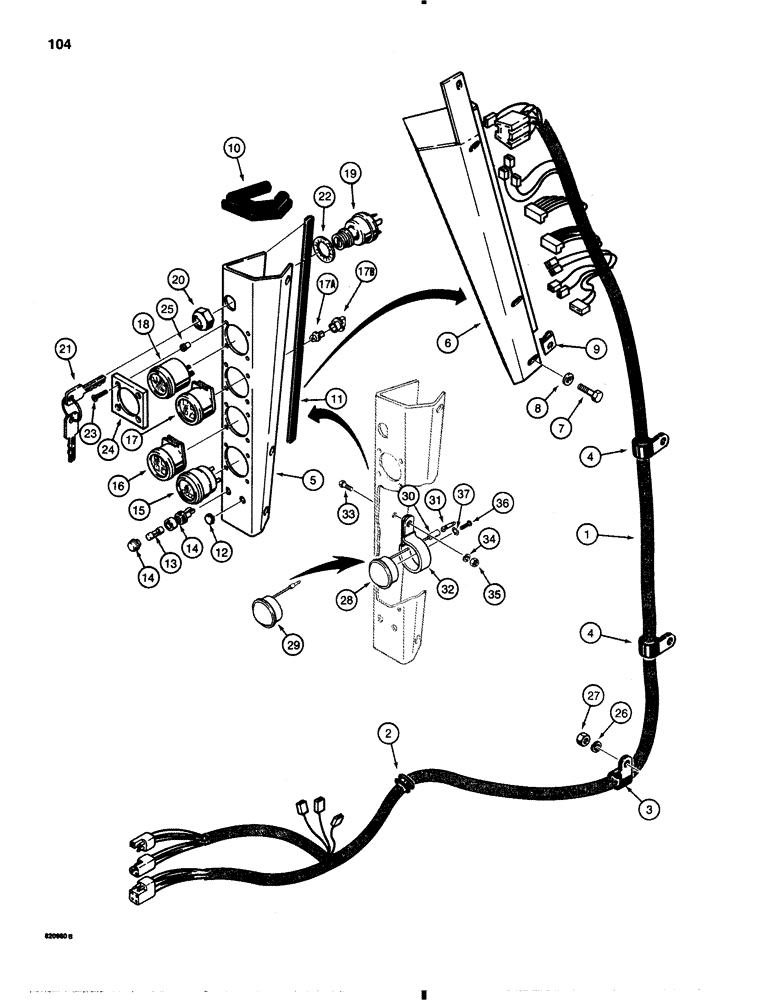

Запчасти Case IH 1845B (104) - ELECTRICAL SYSTEM, FRONT HARNESS AND INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

D123654

HARNESS

front

1шт.

2

H114272

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

front harness

1шт.

3

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-style, harness, lower, use upper right-hand fender bolt and, items 26 and 27

1шт.

4

49838

CLAMP

P-style, harness, use ROPS mounting hardware

2шт.

5

D123586

PANEL

INSTRUMENT PANEL used on models with standard ROPS

1шт.

6

D123707

INSTRUMENT PANEL used on models with ROPS enclosure or forestry models

1шт.

7

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9

131-863

SPRING NUT,Tinn, U, 5/16"-18

U-type, 5/16" - 18 NC

2шт.

Ref # 9 131-863 can use 131-124 or 131-134 per note in 1845B parts catalog 8-1852

1шт.

10

D123669

SEAL

instrument panel, upper

1шт.

11

D123670

CHANNEL

trim, instrument panel, side

1шт.

12

L18398

HOLE PLUG BUTTON,13/32"

PLUG, , 10 mm diameter hole 13/32"

1шт.

13

223-27

FUSE,20 Amp, Type 3AG

20 ampere

1шт.

14

A22874

HOLDER

fuse

1шт.

15

D121644

GAUGE

HOURMETER engine

1шт.

16

D123592

GAUGE

warning, lower

1шт.

17

D123591

GAUGE

warning, upper, Inc: Ref. 17A - 17B

1шт.

17a

N8320

BULB

D123592 and D123591 warning lamps

4шт.

17b

N13259

SOCKET

lamp

1шт.

18

D121645

FUEL GAUGE

GAUGE fuel

1шт.

19

D134737

IGNITION SWITCH

KEY SWITCH includes two keys, Inc: Ref. 20 - 21

1шт.

20

A77314

NUT

key switch mounting

1шт.

21

A77313

SET OF 2 KEYS

Metal Without Padding

1шт.

22

193-37

LOCK WASHER,Int Tooth, 1"

WASHER, LOCK, Int Tooth, 1"

1шт.

23

179-164

SCREW,Cross Oval Hd, #6 - 32 x 7/8"

MACHINE SCREW Phillips head, No 6 - 32 NC x 7/8", Teflon coated

16шт.

24

D121637

COVER

warning lamps and gauges

4шт.

25

D121600

ISOLATOR

cover mounting screw

16шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

28

L103666

ALARM

engine oil pressure, General Constructors No.16005051, no longer available, order D126995 for service, if used

1шт.

29

D126995

BUZZER

ALARM engine oil pressure, General Constructors No.16005051-BT, if used

1шт.

30

223-125

TUBE

SHRINK TUBING alarm, used with L103666 alarm

1шт.

31

L11778

CONNECTOR, ELEC

CONNECTOR male, bullet, used with L103666 alarm

1шт.

32

D120561

CLAMP

alarm

1шт.

33

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

34

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

35

9635082

NUT,5/16" - 18, Gr 5

1шт.

36

182-81

SCREW,Slotted Pan Hd, #8-32 x 3/16"

MACHINE SCREW slotted pan head, No. 8 - 32 NC x 3/16"

1шт.

37

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

1шт.
