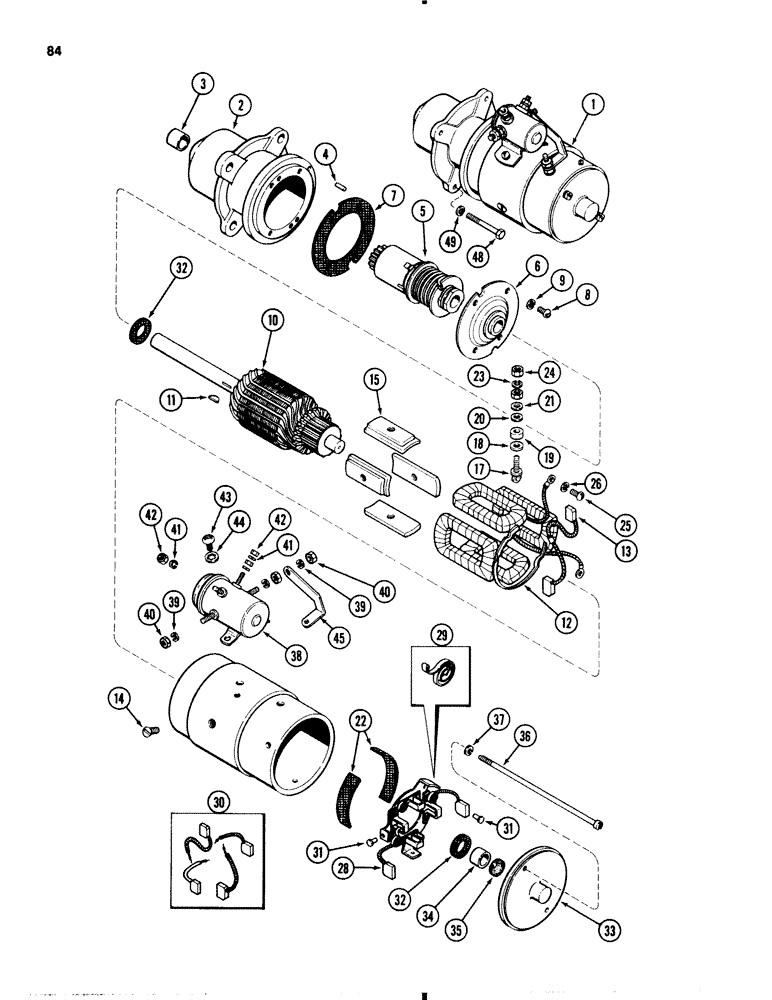

Запчасти Case IH 1845B (084) - A51910 STARTER, 159 SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

A47462

REMAN-STARTER

Starter Assembly Remanufactured

1шт.

A47463

CORE-STARTER

Return Number use this part no. to return starter core for credit

1шт.

1

A51910

STARTER MOTOR

STARTER ASSEMBLY Prestolite No. MDU-7116, Inc: Refs. 2 - 44

1шт.

1

104456A1R

REMAN-STARTER

Remanufactured Starter 12 volt, presto inertia

1шт.

1

104456A1C

CORE-STARTER

Return Number, Starter 12 volt, presto inertia

1шт.

2

A25610

HOUSING

HOUSING ASSEMBLY drive end, Inc: Refs. 3 - 4

1шт.

3

A25611

BEARING

BEARING armature shaft

1шт.

4

NSS

NOT SOLD SEPARAT

PIN housing locating

1шт.

5

A40272

DRIVE

DRIVE ASSEMBLY starter

1шт.

6

A43257

BUSHING

PLATE ASSEMBLY intermediate bearing

1шт.

7

G46910

GASKET

GASKET bearing plate

1шт.

8

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW round head, No. 10-32 x 7/16 inch

4шт.

9

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

10

A44996

ARMATURE

SPARE PART ARMATURE with stainless steel shaft

1шт.

11

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, #6, 5/32" x 5/8", HT

1шт.

12

A25604

PACKAGE

COIL ASSEMBLY field, Inc: Ref. 13

1шт.

13

NSS

NOT SOLD SEPARAT

BRUSH, Order: A25603

2шт.

14

NSS

NOT SOLD SEPARAT

SCREW pole shoes

4шт.

15

NSS

NOT SOLD SEPARAT

SHOE pole

4шт.

A40278

KIT

TERMINAL KIT field stud, Inc: Refs. 17 - 22

1шт.

17

NSS

NOT SOLD SEPARAT

STUD field terminal

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER insulating, inner

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING insulating, terminal stud in frame

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER insulating, outer

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER terminal stud

1шт.

22

NSS

NOT SOLD SEPARAT

INSULATION field coil

2шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

2шт.

25

182-545

SCREW,Slotted Pan Hd, #8-32 x 5/16"

SCREW round head, No. 8-32 x 5/16 inch

1шт.

26

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

A25612

PLATE

PLATE ASSEMBLY brush carrier, Inc: Refs. 28 - 29

1шт.

28

NSS

NOT SOLD SEPARAT

BRUSH, Order: A25603

2шт.

29

A40275

SPRING

SPRING KIT brush Set of 4

1шт.

30

A25603

BRUSH SET

BRUSH SET, Set of 4

1шт.

31

NSS

NOT SOLD SEPARAT

RIVET brush plate

3шт.

A40277

KIT

THRUST WASHER KIT, Inc: Ref. 32

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER bearing plate and commutator end, 1/32 inch

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER commutator end, 3/64 inch

1шт.

33

A40274

HEAD

HEAD ASSEMBLY commutator end, Inc: Refs. 33 - 34

1шт.

34

NSS

NOT SOLD SEPARAT

BUSHING armature shaft

1шт.

35

NSS

NOT SOLD SEPARAT

FELT oiler

1шт.

36

A25601

SCREW

BOLT through

2шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , through bolt 1/4"

2шт.

38

A43415

SOLENOID

SOLENOID ASSEMBLY, Inc: Refs. 39 - 42

1шт.

39

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

40

129-122

NUT,5/16"-24, G5

NUT, 5/16"-24, G5

3шт.

41

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

42

129-37

NUT,#10-32

NUT, #10-32

1шт.

43

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

SCREW round head, No. 10-32 x 1/4 inch

2шт.

44

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

45

G46297

CONNECTOR, ELEC

CONNECTOR CONNECTOR, Serial Range: solenoid-field

1шт.

48

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

3шт.

49

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.
