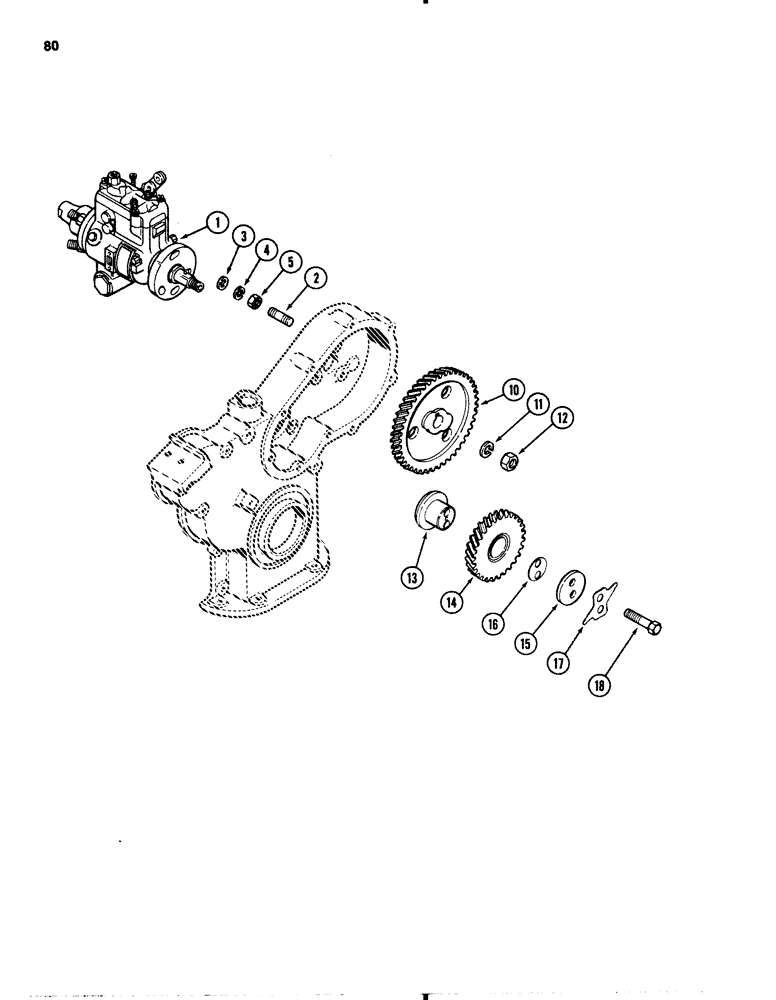

Запчасти Case IH 1845B (080) - INJECTION PUMP DRIVE, 188 DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY injection See Fig. 78

1шт.

2

G102128

BOLT

3/8 NC x 1-7/16 inch

3шт.

3

A30043

WASHER

3/8 x 7/8 x 1/8 inch, 10 x 22 x 3 mm

3шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

10

G2076

GEAR

drive, injection pump

1шт.

11

192-24

LOCK WASHER,9/16"

WASHER, LOCK, , Drive gear 9/16"

1шт.

12

25-159

JAM NUT,Jam, 9/16"-18, G5

hex jam, 9/16 inch NF

1шт.

13

G11726

HUB

idler gear

1шт.

14

G11852

GEAR

ASSEMBLY idler Includes bushing

1шт.

15

G11732

PLATE

thrust, idler gear

1шт.

16

G11728

SHIM,.005" Thk

Idler gear (0.127 mm) .005" Thk

1шт.

16

G11729

SHIM,.006" Thk

Idler gear (0.152 mm) .006" Thk

1шт.

16

G11730

SHIM,.007" Thk

Idler gear (0.178 mm) .007" Thk

1шт.

16

G11731

SHIM,.009" Thk

Idler gear (0.229 mm) .009" Thk

1шт.

17

G11746

PLATE

lock, idler gear

1шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.
