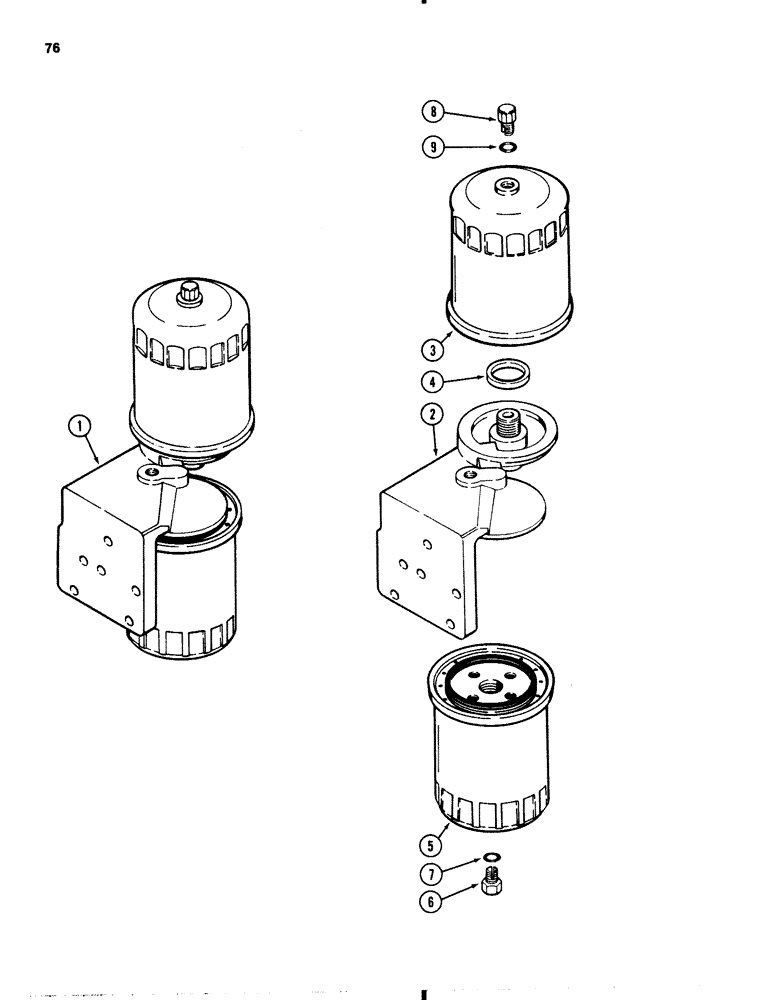

Запчасти Case IH 1845B (076) - FUEL FILTER, 188 DIESEL ENGINE (03) - FUEL SYSTEM

1

A154934

FILTER

ASSEMBLY fuel, Inc: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD filter base Order: A154934 Reference No. A154909

1шт.

A151281

FUEL FILTER

FILTER KIT fuel, Inc: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY secondary, 15/16 inch threads

1шт.

4

A42315

GASKET

filter to head, 15/16 x 1-1/4 x 1/4 inch, 24 x 32 x 6 mm

1шт.

5

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY primary, 13/16 inch threads

1шт.

6

G49080

PLUG

drain, primary filter, 3/8 inch NF, 12 point head, nylon

1шт.

7

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, drain plug

1шт.

8

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Assy, Drain, Secondary filter, Includes Ref. 9 Hex Hd, 3/8"-24 ORB

1шт.

9

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.
