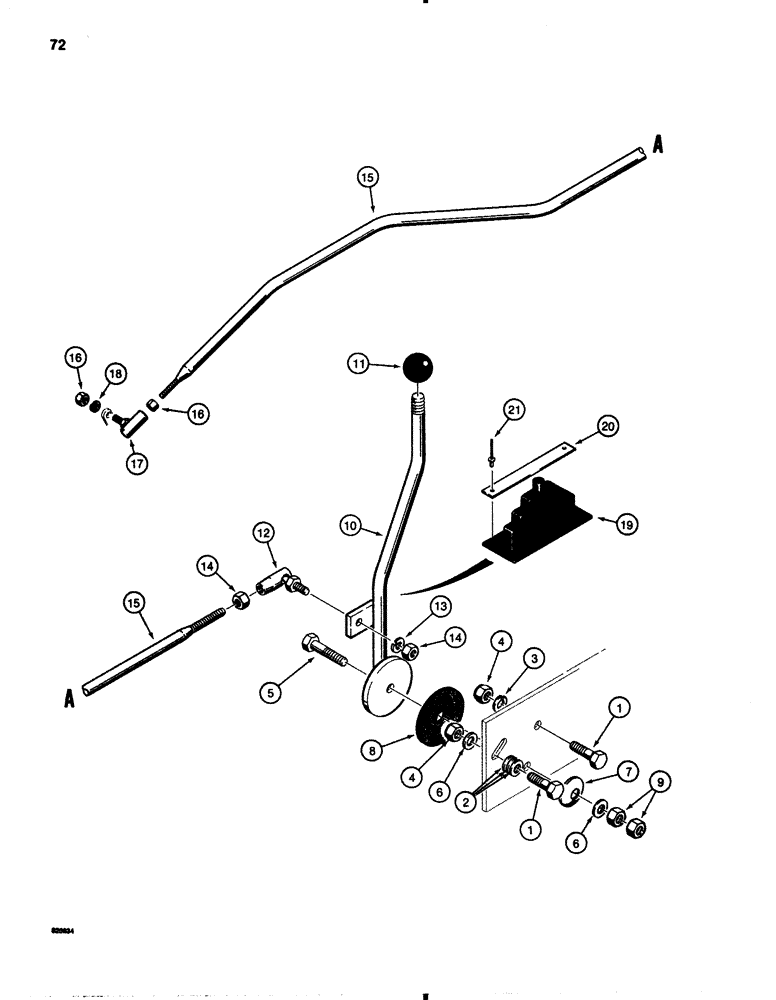

Запчасти Case IH 1845B (072) - DIESEL ENGINE CONTROLS (03) - FUEL SYSTEM

1

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

2

195-525

WASHER,3/8", SAE

flat, 3/8", plated

3шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

25-146

JAM NUT,Jam, 3/8"-16, G5

hex, jam, 3/8" - 16 NC

2шт.

5

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

6

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

7

R14771

WASHER

BELLEVILLE SPRING throttle lever

1шт.

8

R15071

DISC

FRICTION DISC throttle lever

1шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

D121585

LEVER

throttle control

1шт.

11

D59912

KNOB

lever

1шт.

12

A19105

BALL JOINT

5/16"

1шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

14

129-122

NUT,5/16"-24, G5

2шт.

15

D121588

ROD

throttle

1шт.

16

129-121

NUT,1/4"-28, G5

2шт.

17

A10329

BALL JOINT,1/4" - 28 x 1"

1/4"

1шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

19

D122915

BOOT

throttle handle, used only on models with noise control

1шт.

20

D76875

LOCKING TAB

TAB boot mounting, used with item 19

2шт.

21

151-538

RIVET,Pop, 3/16" x .575"

POP RIVET, 3/16", used with item 19

4шт.
