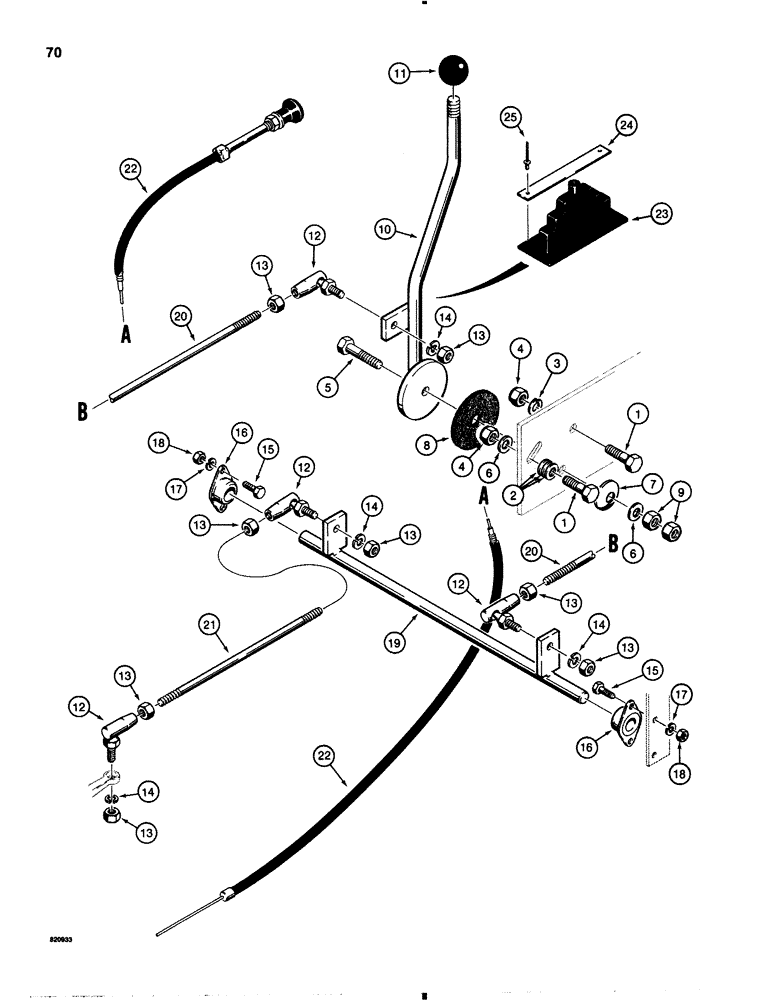

Запчасти Case IH 1845B (070) - GASOLINE ENGINE CONTROLS (03) - FUEL SYSTEM

1

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

2

195-525

WASHER,3/8", SAE

flat, 3/8", plated

3шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

25-146

JAM NUT,Jam, 3/8"-16, G5

JAM NUT hex, 3/8" - 16 NC

2шт.

5

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

6

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

7

R14771

WASHER

BELLEVILLE SPRING throttle lever

1шт.

8

R15071

DISC

FRICTION DISC throttle lever

1шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

D121585

LEVER

throttle control

1шт.

11

D59912

KNOB

lever

1шт.

12

A19105

BALL JOINT

5/16"

4шт.

13

129-122

NUT,5/16"-24, G5

8шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

15

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

16

D63966

FLANGED BEARING,0.508" ID x 1.12" OD x 0.56"

BEARING side, flange style

2шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

19

D121584

CROSS SHAFT

SHAFT cross, throttle control

1шт.

20

R26943

ROD

throttle linkage, 13.8", 351 mm long

1шт.

21

D73385

ROD

throttle, gas, 9", 229 mm long

1шт.

22

D68745

CABLE

choke control

1шт.

23

D122915

BOOT

throttle handle, used only on models with noise control

1шт.

24

D76875

LOCKING TAB

TAB boot mounting, used with item 23

2шт.

25

151-538

RIVET,Pop, 3/16" x .575"

POP RIVET, 3/16", used with item 23

4шт.
