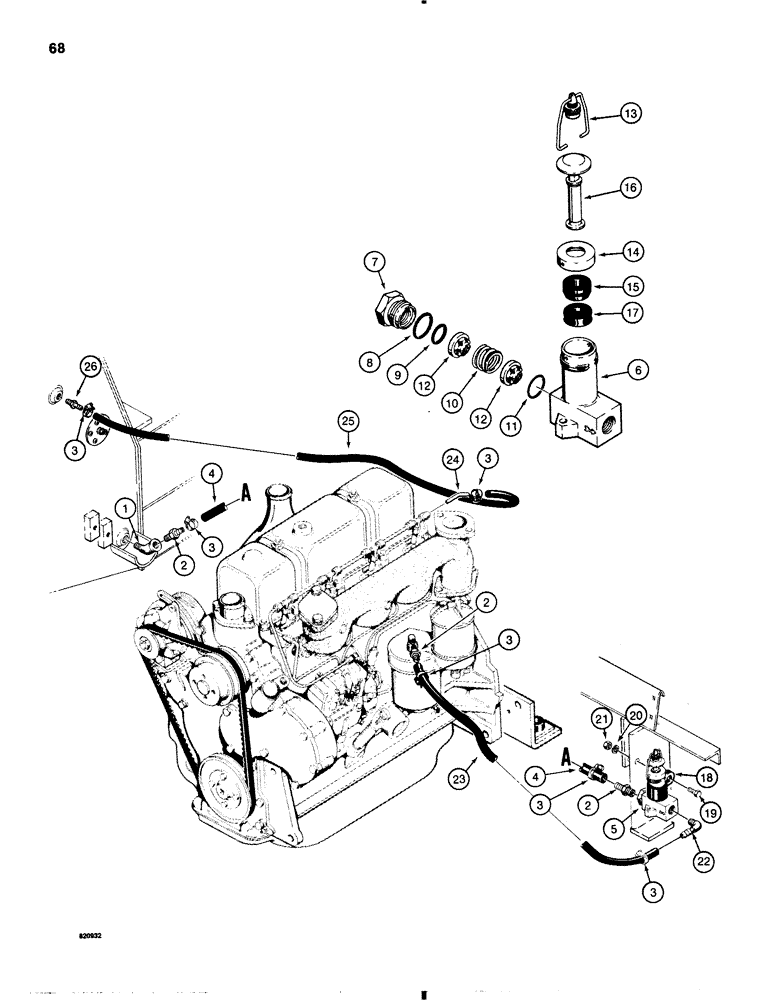

Запчасти Case IH 1845B (068) - FUEL LINES AND HAND PRIMER - DIESEL MODELS (03) - FUEL SYSTEM

1

221-402

ELBOW,45 Degree, 1/4"-27, NPT

45 degree, 1/4" NPT, if used

1шт.

2

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

ADAPTER straight, hose barb, 1/4" NPT

3шт.

3

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

6шт.

4

REF

INSTRUCTION

HOSE fuel, 1/4", 6 mm ID x 40", 1016 mm long, cut from H400184 hose, see below, Inc: Ref. 5 - 17

1шт.

5

D75092

PUMP

PRIMER fuel line

1шт.

6

F10070

BODY

primer

1шт.

7

F10068

NUT

primer valve

1шт.

8

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL valve nut

1шт.

9

51200832

SEAL ASSY.

SEAL valve, inner

1шт.

10

D75866

SPRING

valve retainer

1шт.

11

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

SEAL valve, outer

1шт.

12

F10076

LOCK VALVE

VALVE primer

2шт.

13

F10073

CLAMP

BAIL AND CLAMP primer

1шт.

N7519

KIT

plunger, Inc: Ref. 14 - 17

1шт.

14

D75865

KIT

CAP guide retaining

1шт.

15

F10072

GUIDE

plunger

1шт.

16

F10074

KIT

PLUNGER primer

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL plunger

1шт.

18

R21385

CLAMP

primer

1шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

22

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

ELBOW 90 degree, hose barb, 1/4" NPT

1шт.

23

REF

INSTRUCTION

HOSE fuel, 1/4", 6 mm ID x 20", 508 mm long, cut from H400184 hose, see below

1шт.

24

D67306

TUBE

fuel return

1шт.

25

REF

INSTRUCTION

HOSE fuel return, 1/4", 6 mm ID x 31", 787 mm long, cut from H400184, hose, see below

1шт.

26

217-150

FITTING,1/4" Hose Barb x 1/8" Male NPTF

ADAPTER straight, hose barb, 1/8" NPT

1шт.

H400184

FUEL HOSE,6.35 mm ID x 1905.00 mm, SAE 30R1, SAE 30R3

6.35 mm ID x 1905.00 mm Bulk, SAE 30R1, SAE 30R3, Cut from Bulk Hose

1шт.
