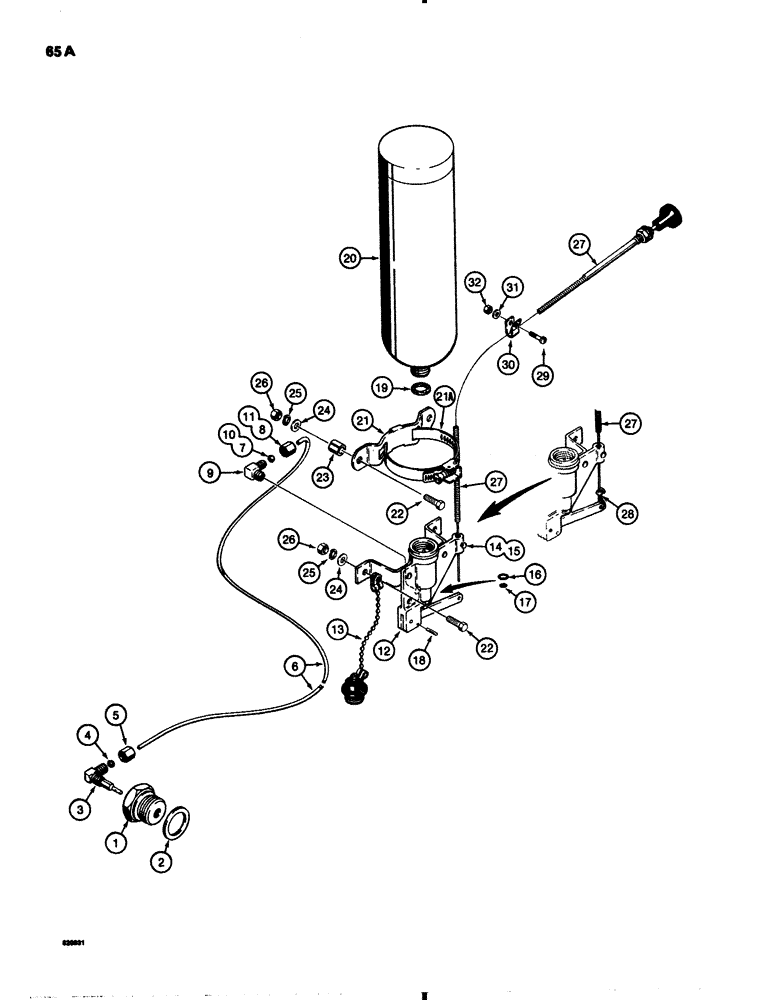

Запчасти Case IH 1845B (065A) - COLD START SYSTEM (02) - ENGINE

1

L10283

PLUG

manifold

1шт.

2

A20916

MANIFOLD GASKET

WASHER special

1шт.

D55946

JET

INJECTOR ASSEMBLY cold start, Inc: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

INJECTOR cold start, 90 degree

1шт.

4

222-650

SLEEVE,1/8" Tube, Comp

Brass 1/8" Tube, Comp

1шт.

5

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8", brass 5/16"-24, 45º Fl, Comp

1шт.

N8728

TUBE,1/8" OD x 96" L

ASSEMBLY valve to injector, Inc: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

TUBE, 60" 1524 mm long, cut to 48" 1219 mm

1шт.

7

222-650

SLEEVE,1/8" Tube, Comp

Brass 1/8" Tube, Comp

2шт.

8

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8", brass 5/16"-24, 45º Fl, Comp

2шт.

D55948

VALVE

ASSEMBLY starting fluid injection, Inc: Ref. 9 - 19

1шт.

9

NSS

NOT SOLD SEPARAT

ELBOW ASSEMBLY valve, 90 degree, Inc Ref. 10 - 11

1шт.

10

222-650

SLEEVE,1/8" Tube, Comp

Brass 1/8" Tube, Comp

1шт.

11

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8", brass 5/16"-24, 45º Fl, Comp

1шт.

12

NSS

NOT SOLD SEPARAT

VALVE actuator

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG valve, with chain

1шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

15

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

No. 10 - 24 NC x 1/2", plated

1шт.

16

A51274

O-RING,0.145" ID x 0.285" OD

internal plunger, upper

1шт.

17

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

internal plunger, lower

1шт.

18

135-313

GROOVED PIN,3/32" x 1/2"

Pin, Grooved, , drive 3/32" x 1/2"

1шт.

19

D74422

GASKET

SEAL cylinder to valve, cork

1шт.

20

D55767

CYLINDER

starting fluid

1шт.

21

L35279

BRACKET

cylinder

1шт.

21a

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP cylinder

1шт.

22

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

22

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Used on models with noise control Hex, 1/4"-20 x 1", G5

4шт.

23

D76208

SPACER

bolt, used on models with noise control

4шт.

24

195-102

WASHER,1/4"

flat, , plated 1/4"

4шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

27

D88741

CABLE

cold start control, 40" 1016 mm long

1шт.

28

222-650

SLEEVE,1/8" Tube, Comp

Brass, Control cable to valve lever 1/8" Tube, Comp

1шт.

29

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

MACHINE SCREW pan, Philips head, No 10 - 24 NC x 5/8", plated

1шт.

30

T40341

CLAMP,1/4", 1/4" Bolt

cable

1шт.

31

195-513

WASHER,#10

flat, No. 10, plated

1шт.

32

129-17

NUT,Hex, #10 - 24

NUT hex, No. 10 - 24 NC, plated

1шт.
