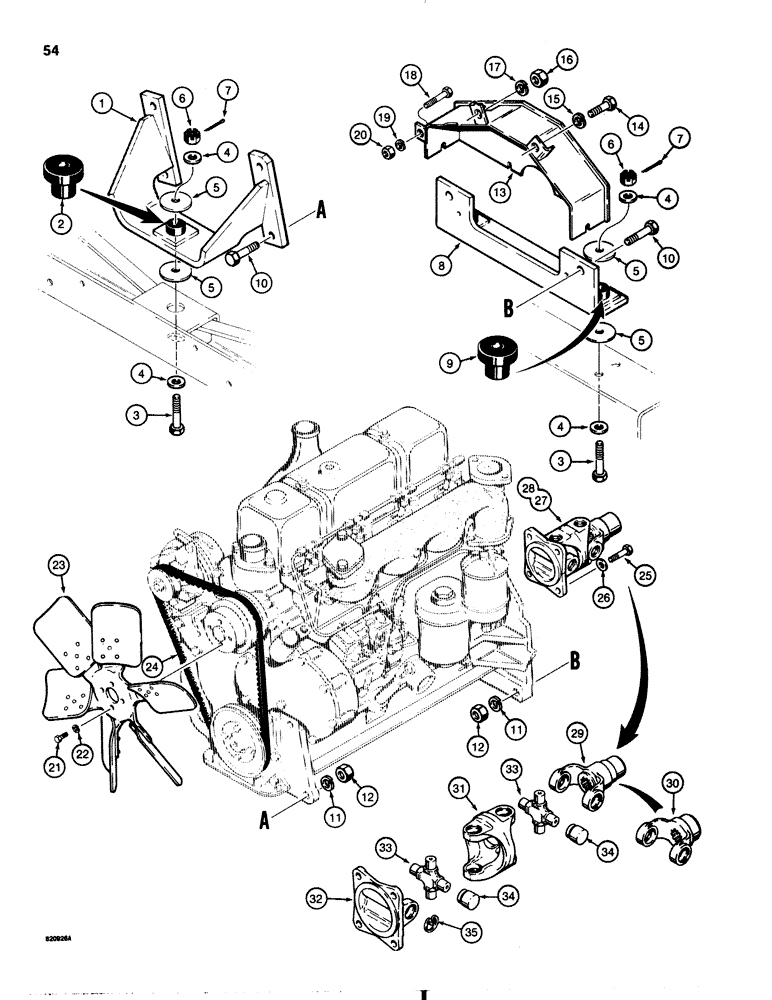

Запчасти Case IH 1845B (054) - ENGINE MOUNTING, FLYWHEEL GUARD, FAN, AND FAN BELT (02) - ENGINE

1

D63930

BRACKET

MOUNT engine, rear

1шт.

2

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

INSULATOR rubber mount

1шт.

3

D64065

BOLT

hex head, 5/8" - 18 NF x 3-1/2"

3шт.

4

195-541

WASHER,5/8", SAE

flat, 5/8", plated

6шт.

5

CASD35009

WASHER,16.67mm ID x 63.5mm OD

flat, special, hardened

6шт.

6

129-610

SLOTTED NUT,5/8"-18, G5

3шт.

7

132-311

COTTER PIN,5/32" x 1 1/4"

5/32" x 1 1/4"

3шт.

8

D63923

BRACKET

MOUNT engine, front, Inc: Ref. 9

1шт.

9

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

INSULATOR rubber

2шт.

10

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

6шт.

11

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

12

129-107

NUT,5/8"-11, G5

6шт.

13

D64238

GUARD

flywheel

1шт.

14

113-602

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

1шт.

15

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

16

129-127

NUT,5/8"-18, G5

1шт.

17

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

18

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

21

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Used with D68865 fan

4шт.

21

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Used with A172885 fan Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

23

D68865

FAN

PUSHER FAN engine cooling, uses 3/4" long bolts, no longer available, order 1 A172885 and 4 113-113 bolts

1шт.

23

A172885

FAN

PUSHER FAN engine cooling, uses 7/8" long bolts, the Case part number, is stamped on fan blade for identification

1шт.

24

A38824

BELT

Fan and Alternator, Gasoline Models

1шт.

24

A11444

BELT,0.53" W x 50.50" L

Fan and Alternator, Diesel Models 0.53" W x 50.50" L

1шт.

25

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

4шт.

26

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

flat, special

4шт.

27

D64445

JOINT

UNIVERSAL JOINT gasoline models, complete assembly not available, order individual components

1шт.

28

D64444

JOINT

UNIVERSAL JOINT diesel models, complete assembly not available, order individual components

1шт.

29

D70628

YOKE

pump end, D64445 universal joint, gasoline models

1шт.

30

D70625

YOKE

pump end, D64444 universal joint, diesel models, Inc: Ref. 31 - 35

1шт.

31

D70626

YOKE

center

1шт.

32

D70624

YOKE

FLANGE engine end

1шт.

D70629

U-JOINT SPIDER

KIT universal joint, Inc: Ref. 33 - 35

2шт.

33

NSS

NOT SOLD SEPARAT

CROSS universal

1шт.

34

NSS

NOT SOLD SEPARAT

BEARING universal

4шт.

35

11256

SNAP RING

SNAP RING bearing

4шт.
