Запчасти Case IH 1845B (038) - CYLINDER HEAD AND COVER, 188 DIESEL ENGINE (02) - ENGINE

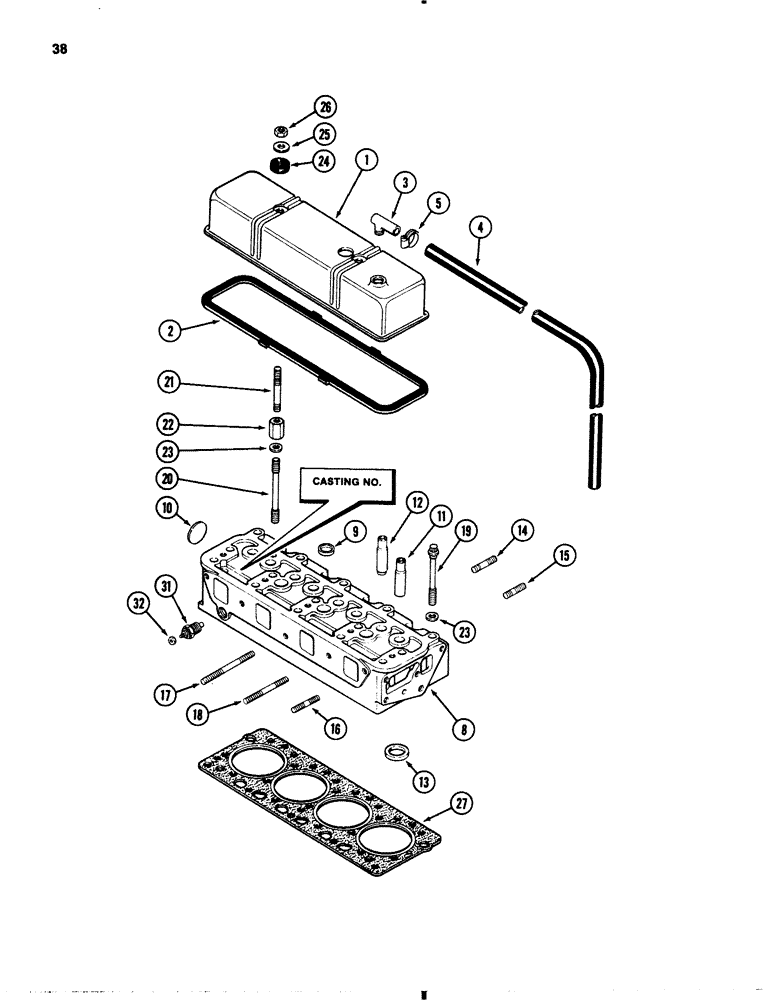

Схема запчастей Case IH 1845B - (038) - CYLINDER HEAD AND COVER, 188 DIESEL ENGINE (02) - ENGINE
2
4
13
8
25
20
17
23
21
1
27
22
24
12
31
3
10
16
18
15
32
14
5
26
23
19
11
9

Артикул

Название

Примечание

Количество

1

A36815

COVER

cylinder head

1шт.

2

REF

INSTRUCTION

GASKET cover to cylinder head See Ref. 52

1шт.

3

A9155

90 ELBOW

breather

1шт.

4

A39570

HOSE

breather hose

1шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, 9/16 inch to 1-1/16 inch (14 to 27 mm)

1шт.

8

A166029

HEAD (CYLINDER)

HEAD ASSEMBLY cylinder, with drilled push rod holes, Casting No. A155925

1шт.

8

A153261

CYLINDER BLOCK

HEAD ASSEMBLY cylinder, with cast push rod holes, Inc: Ref. 9 - 18, Casting No. A150384

1шт.

9

41-1016

PLUG,Cup, 1"

top, 1 cup type 25 mm

3шт.

10

41-1028

PLUG,Cup, 1 3/4"

rear, 1-3/4 inch cup type 44 mm

1шт.

11

G2069

GUIDE

exhaust valve

4шт.

12

G2068

GUIDE

intake valve

4шт.

13

G47078

INSERT exhaust valve seat

4шт.

14

A140924

STUD

exhaust manifold, clamps, 3/8 NC x 2-1/16 inch

3шт.

15

A29431

STUD

exhaust manifold, ends, 3/8 NC x 1-3/4 inch

2шт.

16

A140924

STUD

intake manifold, ends, 3/8 NC x 2-7/16 inch

2шт.

17

A153248

STUD

intake manifold, intermediate, 3/8 NC x 4-5/16 inch

2шт.

18

A51500

STUD

intake manifold, center, 3/8 NC x 5-5/16 inch

1шт.

19

A39047

12 PT SCREW

BOLT 12 point head, 1/2 NC x 3-1/2 inch

4шт.

19

A39048

12 PT SCREW

BOLT 12 point head, 1/2 NC x 5-1/8 inch

11шт.

19

A39049

12 PT SCREW

BOLT 12 point head, 1/2 NC x 5-5/8 inch

2шт.

20

A36902

STUD

cylinder head, lower, 1/2 NC x 5-5/8 inch

2шт.

21

A51271

STUD

cylinder head cover, 3/8 NC x 3-3/4 inch

2шт.

22

A51114

NUT

1/2 NC and 3/8 inch NC

2шт.

23

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

1/2 x 7/8 x 1/8 inch, 13 x 22 x 3 mm

19шт.

24

A142098

GROMMET

cover

2шт.

25

195-137

WASHER,13/32" x 1 1/8" x .180"

3/8 x 1-1/8 x 1/8 inch, 10 x 29 x 3 mm

2шт.

26

25-106

NUT,3/8"-16, G5

hex, 3/8 inch NC

2шт.

27

REF

INSTRUCTION

GASKET cylinder head See Figure 52

1шт.

31

A154283

SWITCH

SENDING UNIT engine temperature

1шт.

32

193-1000

NUT,Keps, w/LW,#10-32

hex, No. 10 NF

1шт.

Выбрано товаров: 30
