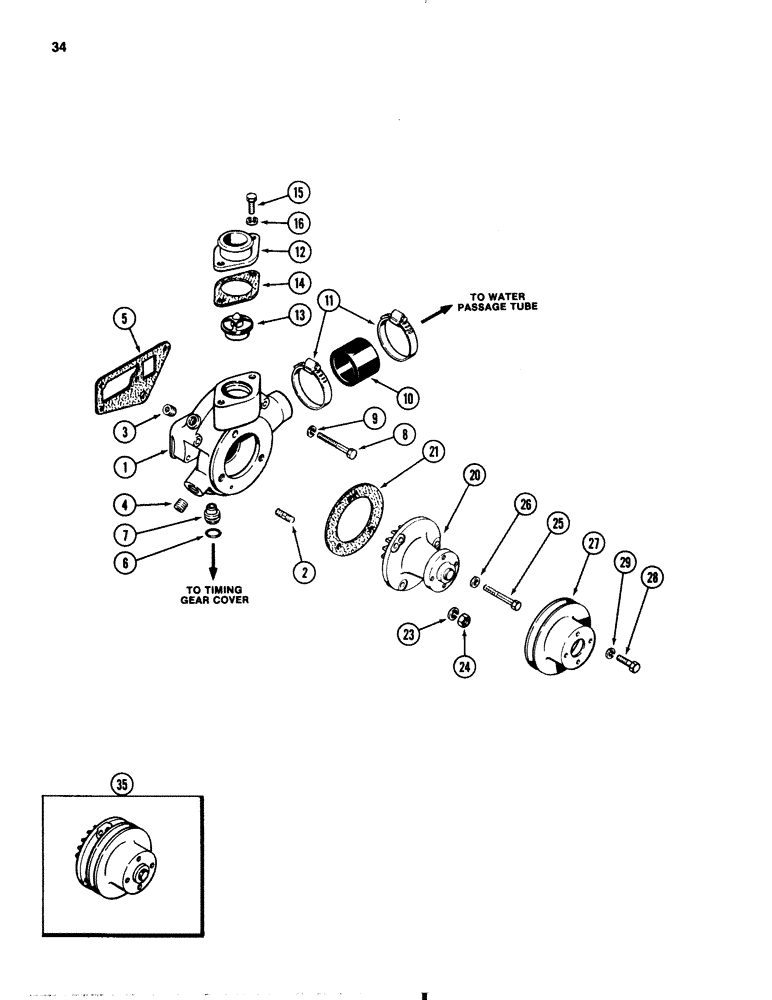

Запчасти Case IH 1845B (034) - WATER PUMP AND THERMOSTAT, 188 DIESEL ENGINE (02) - ENGINE

1

A152801

BODY

BODY ASSEMBLY water pump, Inc: Ref. 2 - 4

1шт.

2

A29433

STUD

STUD 3/8 NC x 1 inch

2шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

PLUG hex socket head, 3/8 inch PT

1шт.

4

221-844

PLUG,Hex Soc, 1/2"-14

PLUG hex socket head, 1/2 inch PT

1шт.

5

A38084

GASKET,1.27mm Thk

GASKET pump body to cylinder head

1шт.

6

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O-RING body to cover, 3/4 x 1 x 1/8 inch, 19 x 25 x 3 mm

1шт.

7

A152715

COUPLING

FITTING water pump body inlet

1шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

1шт.

8

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT hex, 3/8 NC x 2-3/4 inch

2шт.

9

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

10

A7249

HOSE

HOSE body to water passage tube, 2 ID x 1-3/4 inch, 51 x 44 mm

1шт.

11

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, (46 to 70 mm) #36, 1.81/2.75 Type F Worm

2шт.

12

G2144

FITTING

HOUSING thermostat

1шт.

13

A57641

THERMOSTAT

THERMOSTAT 180\\ deF, 82\\ deC

1шт.

14

G46907

GASKET

GASKET thermostat housing

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

20

A146584

PUMP, WATER

PUMP ASSEMBLY water, New, Also see Fig. 35, Inc: Ref. 21

1шт.

20

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

20

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Pump Assembly

1шт.

20

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

20

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

20

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

21

A38083

GASKET

GASKET, Serial Range: pump-body

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

25

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT hex, 3/8 NC x 2-3/4 inch

1шт.

26

A7085

WASHER

WASHER 3/8 x 9/16 x 1/32 inch copper 10 x 14 x 1 mm

1шт.

27

G11339

PULLEY

PULLEY fan

1шт.

28

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

35

A51767

PUMP

PUMP ASSEMBLY water Includes fan pulley, For optional noise control package

1шт.
