Запчасти Case IH 1845B (032) - GOVERNOR AND LINKAGE, 159 SPARK IGNITION ENGINE (02) - ENGINE

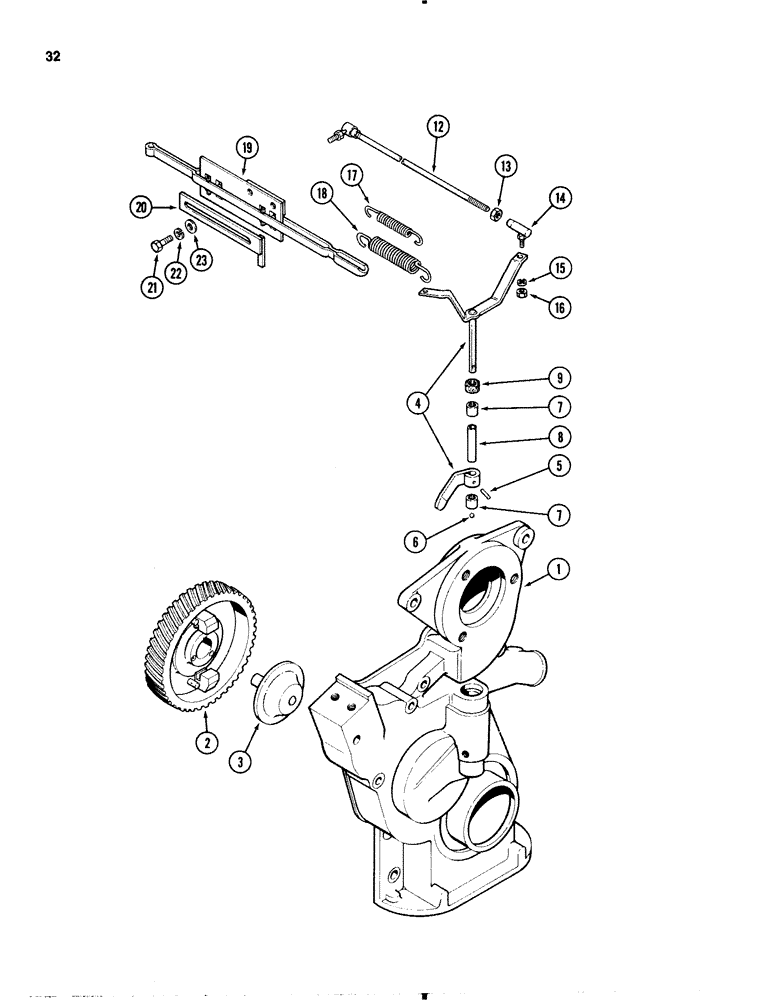

Схема запчастей Case IH 1845B - (032) - GOVERNOR AND LINKAGE, 159 SPARK IGNITION ENGINE (02) - ENGINE
5
9
6
21
19
8
3
22
15
16
2
4
23
14
17
7
12
1
20
18
7
13

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

COVER ASSEMBLY timing gear See ref. 12

1шт.

2

G37066

GEAR

ASSEMBLY camshaft, with governor weights

1шт.

3

A29957

SHAFT

ASSEMBLY governor

1шт.

4

A51754

LEVER

SHAFT AND LEVER ASSEMBLY governor control, Inc: Ref. 5

1шт.

5

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

6

211-5

BALL,3/16" Dia

thrust, 3/16 inch diameter, 5 mm

1шт.

7

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING needle

2шт.

8

A30012

SPACER

thrust

1шт.

9

A30011

SEAL

dust, felt, 3/8 x 13/16 x 3/8 inch, 10 x 21 x 10 mm

1шт.

12

A38301

ROD

ASSEMBLY governor to carburetor, Inc: Ref. 13 - 14

1шт.

13

129-121

NUT,1/4"-28, G5

1шт.

14

A10329

BALL JOINT,1/4" - 28 x 1"

rod end

1шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

16

129-121

NUT,1/4"-28, G5

2шт.

17

A30711

SPRING

governor speed, inner, 43/64 inch OD 17 mm

1шт.

18

G47064

SPRING

governor speed, outer, 13/16 inch OD 21 mm

1шт.

19

G45793

ROD

ASSEMBLY governor control

1шт.

20

G45792

STOP

GUIDE control rod

1шт.

21

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

23

195-103

WASHER,5/16"

5/16 x 11/16 x 1/16 inch, 8 x 17 x 2 mm

2шт.

Выбрано товаров: 21
