Запчасти Case IH 1845B (030) - A135849 CARBURETOR, 159 SPARK IGNITION ENGINE (02) - ENGINE

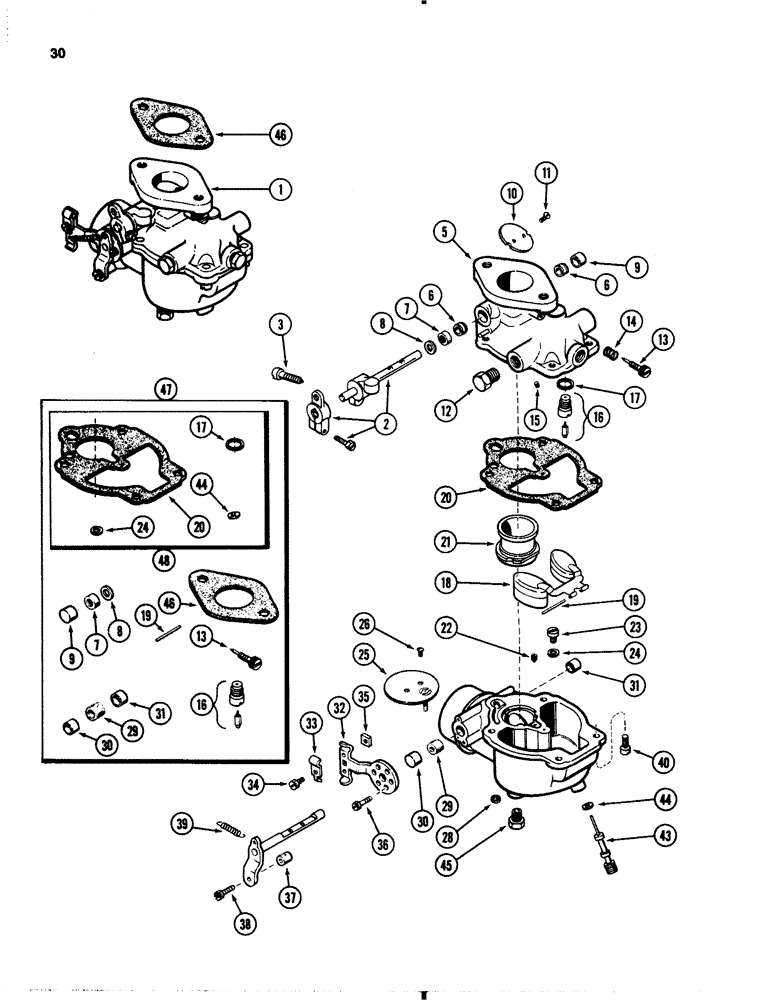

Схема запчастей Case IH 1845B - (030) - A135849 CARBURETOR, 159 SPARK IGNITION ENGINE (02) - ENGINE
21
44
20
20
46
29
37
9
26
13
5
36
23
7
12
23
25
17
30
24
44
11
24
16
34
19
31
17
15
8
38
46
16
9
35
13
31
3
18
7
22
32
10
8
2
45
19
30
1
39
40
6
14
6
48
47
33
28
29

Артикул

Название

Примечание

Количество

1

A135849

CARBURETOR

ASSEMBLY engine Zenith No. 13783, Inc: Ref. 2 - 45

1шт.

2

A45322

SHAFT

ASSEMBLY throttle

1шт.

3

B51582

SCREW stop, No. 8-36 x 3/4 inch

1шт.

5

NSS

NOT SOLD SEPARAT

BODY throttle

1шт.

6

A40609

BUSHING

throttle shaft brass

2шт.

7

B51528

SEAL

throttle shaft, 1/4 x 1/2 x 1/8 inch 6 x 13 x 3 mm

1шт.

Part of Major Repari Kit. P/N A40940

1шт.

8

B59360

RETAINER

WASHER seal retaining

1шт.

Part of Major Repari Kit. P/N A40940

1шт.

9

A40612

PLUG

throttle shaft hole, 7/16 inch cup type 11 mm

1шт.

Part of Major Repari Kit. P/N A40940

1шт.

10

B51211

PLATE

throttle

1шт.

11

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

throttle plate, round head with lockwasher, No. 5 - 40

2шт.

12

B51541

PLUG

hex head, 1/8 inch PT

2шт.

13

A41389

SCREW

NEEDLE idle adjusting

1шт.

Part of Major Repari Kit. P/N A40940

1шт.

14

B51404

SPRING

idle adjusting needle

1шт.

15

NSS

NOT SOLD SEPARAT

JET idle

1шт.

16

A40938

VALVE

ASSEMBLY fuel seat matched, Inc: Ref. 17

1шт.

Part of Major Repari Kit. P/N A40940

1шт.

17

A166172

WASHER

valve seat See Ref 48

1шт.

Part of Minor Repair Kit P/N B51496

1шт.

18

B51359

FLOAT

ASSEMBLY fuel level

1шт.

19

B51433

AXLE

float pivot

1шт.

Part of Major Repari Kit. P/N A40940

1шт.

20

B51471

GASKET

bowl to body See Ref 48

1шт.

Part of Major Repari Kit. P/N A40940

1шт.

Part of Minor Repair Kit P/N B51496

1шт.

21

A25170

VENTURI

carburetor

1шт.

22

B51340

JET

wall vent

1шт.

23

A25173

JET

main

1шт.

24

B51619

WASHER

main jet See Ref. 48

1шт.

Part of Major Repari Kit. P/N A40940

1шт.

Part of Minor Repair Kit P/N B51496

1шт.

25

B51365

PLATE

ASSEMBLY choke

1шт.

26

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

choke plate, round head with lockwasher, No. 5 - 40

2шт.

27

B51180

BOWL

ASSEMBLY fuel, Inc: Ref. 28 - 31

1шт.

28

B51442

FILTER

DISC drain

1шт.

29

B51533

WASHER

packing felt seal

1шт.

Part of Major Repari Kit. P/N A40940

1шт.

30

B51439

RETAINER

packing washer

1шт.

Part of Major Repari Kit. P/N A40940

1шт.

31

B51509

PLUG

choke shaft hole

1шт.

Part of Major Repari Kit. P/N A40940

1шт.

32

B51400

SUPPORT

BRACKET ASSEMBLY choke cable, Inc: Ref. 33 - 35

1шт.

33

B51403

CLIP

choke cable

1шт.

34

B51580

SCREW

round head, No. 8 - 36

1шт.

35

129-76

SQUARE NUT,#8 - 36

square, No. 8 - 36

1шт.

36

B51458

SCREW,#8 - 32 x 0.37"

, Serial Range: bracket-bowl

2шт.

37

A25176

SHAFT

ASSEMBLY choke, Inc: Ref. 38

1шт.

38

A25179

SCREW round head, No. 8 - 36

1шт.

39

B51412

SPRING

return, choke lever

1шт.

40

B51635

SCREW,5/8" x 0.335"

round head with lockwasher, No. 12 - 24

4шт.

43

A25175

JET

ASSEMBLY discharge

1шт.

44

B51610

WASHER

discharge jet See Ref. 48

1шт.

Part of Major Repari Kit. P/N A40940

1шт.

Part of Minor Repair Kit P/N B51496

1шт.

45

B51541

PLUG

bowl drain, 1/8 inch PT

1шт.

46

G46826

GASKET

carburetor, replaced by 1342824C1

1шт.

Part of Major Repari Kit. P/N A40940

1шт.

47

CASA40940

KIT

REPAIR KIT major, Includes: ref. nos. 7, 8, 9, 13, 16, 19, 20, 24, 29, 30, 31, 44, 46, 47, 48

1шт.

48

B51496

GASKET

REPAIR KIT minor Includes ref. 17, 20, 24 and 44

1шт.

Part of Major Repari Kit. P/N A40940

1шт.
