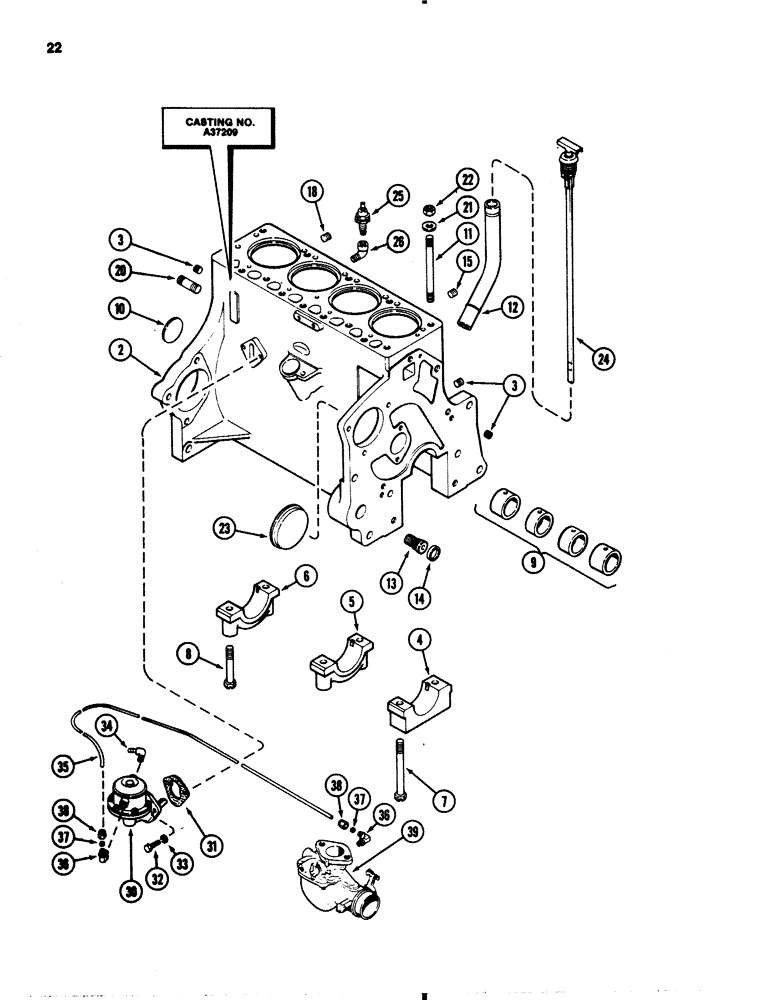

Запчасти Case IH 1845B (022) - CYLINDER BLOCK & FUEL PUMP, 159 SPARK IGNITION ENGINE (02) - ENGINE

A41599

SKELETON ENGINE

BLOCK ASSEMBLY short incudes stripped block, crankshaft block, crankshaft bearings, connecting crankshaft and bearings, pistion assembly, camshaft and bushings, oil pump and timing gears

1шт.

2

A46347

SKELETON ENGINE

BLOCK ASSEMBLY stripped Casting No. A37209, Inc: Ref. 3 - 14

1шт.

3

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

3шт.

4

G2035

CAP

main bearing, front

1шт.

5

G2036

CAP

main bearing, center

1шт.

6

G2037

CAP

main bearing, rear

1шт.

7

G49059

BOLT

bearing cap, front, hex, 1/2 NC x 4-3/4 inch

2шт.

8

G49037

BOLT

bearing cap, rear and center, hex, 1/2 NC x 3 inch

4шт.

9

REF

INSTRUCTION

BUSHING camshaft See Fig. 20

1шт.

10

A39241

PLUG,Exp, 2.12" dia

camshaft hole

1шт.

11

A30057

STUD

cylinder head, 1/2 NF x 2 inch

9шт.

11

A29436

STUD

cylinder head, 1/2 NF x 5-7/8 inch

5шт.

12

A39281

TUBE

oil filler and dipstick

1шт.

13

A153552

ADAPTER

oil filter

1шт.

14

41-1016

PLUG,Cup, 1"

adapter, 1 cup type 25 mm

1шт.

15

221-850

PLUG,Hex Soc, 1/16"-27

countersunk head, 1/16 inch NPT

1шт.

18

221-841

PLUG

drain, hex head, 1/4 inch PT

1шт.

20

A51412

STUD

5/8 NF x 1-3/4 inch

1шт.

21

G49404

WASHER

cylinder head studs

14шт.

22

A30021

NUT

hex, 1/2 inch NF

14шт.

23

41-1052

PLUG,Cup, 3 1/4"

COVER timing gear hole, 3-1/4 inch cup type 83 mm

1шт.

24

A136379

DIPSTICK

ASSEMBLY engine oil level

1шт.

25

A162297

SWITCH

SENDING UNIT oil pressure

1шт.

26

221-401

ELBOW,45 Degree, 1/8"-27, NPT

sending unit, 45 degree, street, 1/8 inch PT

1шт.

30

G45778

PUMP

ASSEMBLY fuel pump

1шт.

31

A65561

GASKET

fuel, Serial Range: pump-block

1шт.

32

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

33

92-5

LOCK WASHER,5/16"

2шт.

34

217-291

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/8" Male NPTF

ELBOW fuel pump inlet

1шт.

35

A141054

TUBE

LINE fuel, Serial Range: pump-carburetor

1шт.

36

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

ASSEMBLY fuel line

2шт.

37

222-653

SLEEVE,5/16" Tube, Comp

for 5/16 inch tube

1шт.

38

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT for 5/16 inch tube

1шт.

39

REF

INSTRUCTION

CARBURETOR ASSEMBLY, See Figure 30

1шт.

Per Roger K. there is no reman engine for the 1845B

1шт.
