Запчасти Case IH 1845B (016) - CYLINDER HEAD AND COVER, 159 SPARK IGNITION ENGINE (02) - ENGINE

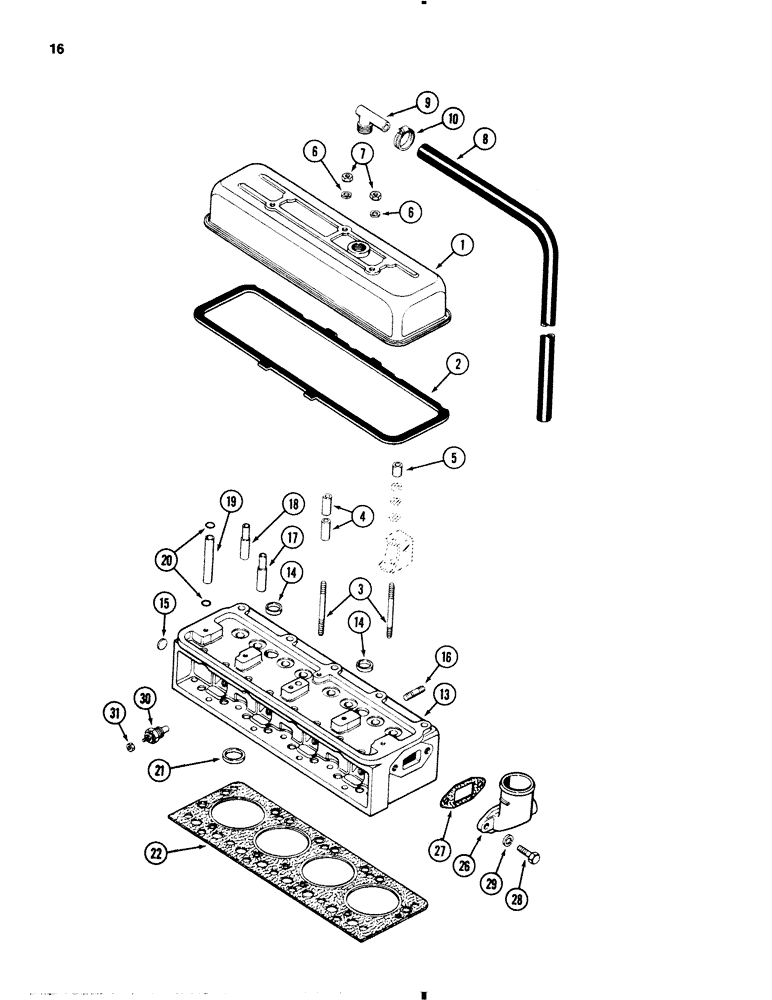

Схема запчастей Case IH 1845B - (016) - CYLINDER HEAD AND COVER, 159 SPARK IGNITION ENGINE (02) - ENGINE
5
6
15
19
30
13
10
7
3
16
4
22
1
21
14
29
26
9
18
17
14
20
31
6
2
8
27
28

Артикул

Название

Примечание

Количество

1

A37212

COVER

ASSEMBLY cylinder head

1шт.

2

A43021

GASKET

, Serial Range: cover-head

1шт.

3

G49505

STUD

cylinder head cover, 3/8 NC x 4-5/8 inch

3шт.

4

A29999

SPACER

cover, center, 5/8 inch long, 16 mm

2шт.

5

A30065

SPACER

cover, ends, 1/2 inch long, 13 mm

2шт.

6

A29277

WASHER

cover

3шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

8

A39570

HOSE

breather

1шт.

9

A9155

90 ELBOW

breather, Serial Range: tube-cover

1шт.

10

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP tube, 9/16 to 1-1/16 inch, 14 to 27 mm

1шт.

13

G11874

HEAD (CYLINDER)

HEAD ASSEMBLY cylinder, casting No. G2088, Inc: Ref. 14 - 21

1шт.

14

41-1016

PLUG,Cup, 1"

1 inch cup type, 25 mm

2шт.

15

41-18

PLUG

1-1/8 inch expansion, 29 mm

1шт.

16

A29431

STUD

manifold, 3/8 NC x 1-3/4 inch

7шт.

17

A29955

GUIDE

intake valve, 2-7/16 inch long, 62 mm

4шт.

18

A29954

GUIDE

exhaust valve, 2-11/16 inch long, 68 mm

4шт.

19

G11360

TUBE,0.687" OD x 3.687" L

push rod

8шт.

20

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

tube

16шт.

21

G2106

INSERT

exhaust valve seat

4шт.

22

REF

INSTRUCTION

GASKET cylinder head to block See Figure 28

1шт.

26

G11965

ELBOW

water outlet and thermostat body

1шт.

27

A30003

GASKET

elbow to cylinder head

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Ebow Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

A154283

SWITCH

SENDING UNIT temperature

1шт.

31

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF Keps

1шт.

Выбрано товаров: 26
