Запчасти Case IH 1845B (240) - DECAL KIT - GASOLINE AND DIESEL MODELS, USED ON MODELS WITH BROWN AND TAN COLOR SCHEME (09) - CHASSIS/ATTACHMENTS

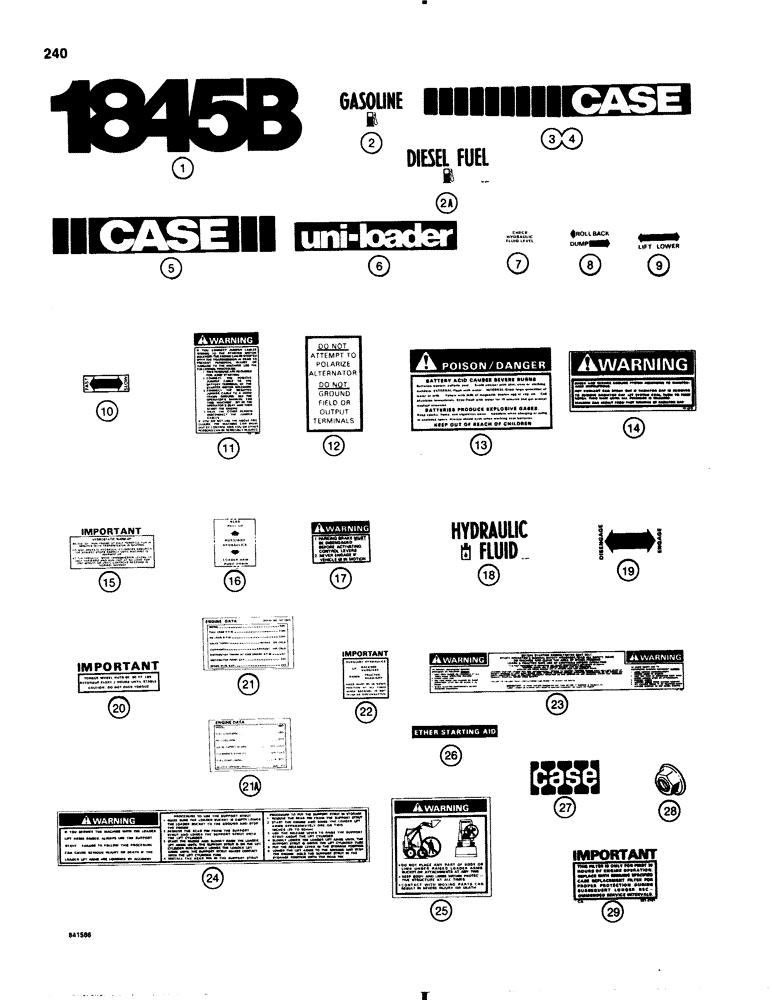

Схема запчастей Case IH 1845B - (240) - DECAL KIT - GASOLINE AND DIESEL MODELS, USED ON MODELS WITH BROWN AND TAN COLOR SCHEME (09) - CHASSIS/ATTACHMENTS
22
23
11
4
3
27
15
6
17
12
16
2a
18
14
8
20
10
21
1
29
5
2
7
19
26
13
9
24
25
21a
28

Артикул

Название

Примечание

Количество

D132418

KIT

decal, gasoline and diesel models, Inc: Ref. 1 - 26

1шт.

1

D123990

DECAL

1845B, brown

2шт.

2

321-6375

DECAL

gasoline

1шт.

2a

321-6374

DECAL

diesel fuel

1шт.

3

D123975

DECAL

Case, loader frame, left-hand, 5", 127 mm high, brown

1шт.

4

D123974

DECAL

Case, loader frame, right-hand, 5", 127 mm high, brown

1шт.

5

H427963

DECAL

Case, rear swing out counterweight, 5", 127 mm high, brown

1шт.

6

D123964

DECAL

Uni-Loader, brown

2шт.

7

321-2733

DECAL

hydraulic fluid

1шт.

8

321-2506

DECAL

Rollback-Dump

1шт.

9

321-2509

DECAL

Lift-Lower

1шт.

10

321-3171

DECAL

Slow-Fast

1шт.

11

321-5974

DECAL

jump start

1шт.

12

321-1061

DECAL

alternator

1шт.

13

321-2996

DECAL

Poison/Danger

1шт.

14

321-6672

DECAL

Warning, hot coolant

1шт.

15

321-4197

DECAL

Warm-up instructions

1шт.

16

321-3158

DECAL

Auxiliary Hydraulics

1шт.

17

321-2599

DECAL

Parking Brake

1шт.

18

321-6376

DECAL

hydraulic fluid

1шт.

18

321-6376

DECAL

hydraulic fluid

1шт.

19

321-3174

DECAL

Disengage-Engage

1шт.

20

321-2973

DECAL

torque wheel nuts

2шт.

21

321-2945

DECAL

engine data, gasoline models

1шт.

21a

321-2559

DECAL

engine data, diesel models

1шт.

22

321-2757

DECAL

auxiliary hydraulics, Up-Down

1шт.

23

321-6460

DECAL

Warning, before starting engine, etc.

1шт.

24

321-6214

DECAL

Warning, support strut

1шт.

25

D120889

DECAL

Warning, personal safety instructions

1шт.

25a

D55216

PAD,2" x 9"

PAD nonskid, floor plate and loader frame, not shown

5шт.

26

D124152

DECAL

Ether Starting Aid, diesel models

1шт.

27

321-4739

EMBLEM

Case

1шт.

28

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT push on, special, for emblem, item 27

2шт.

29

321-2101

DECAL

oil filter

1шт.

Выбрано товаров: 34
