Запчасти Case IH 1845B (238) - DECAL KIT - DIESEL MODELS, USED ON MODELS WITH BLACK AND YELLOW COLOR SCHEME (09) - CHASSIS/ATTACHMENTS

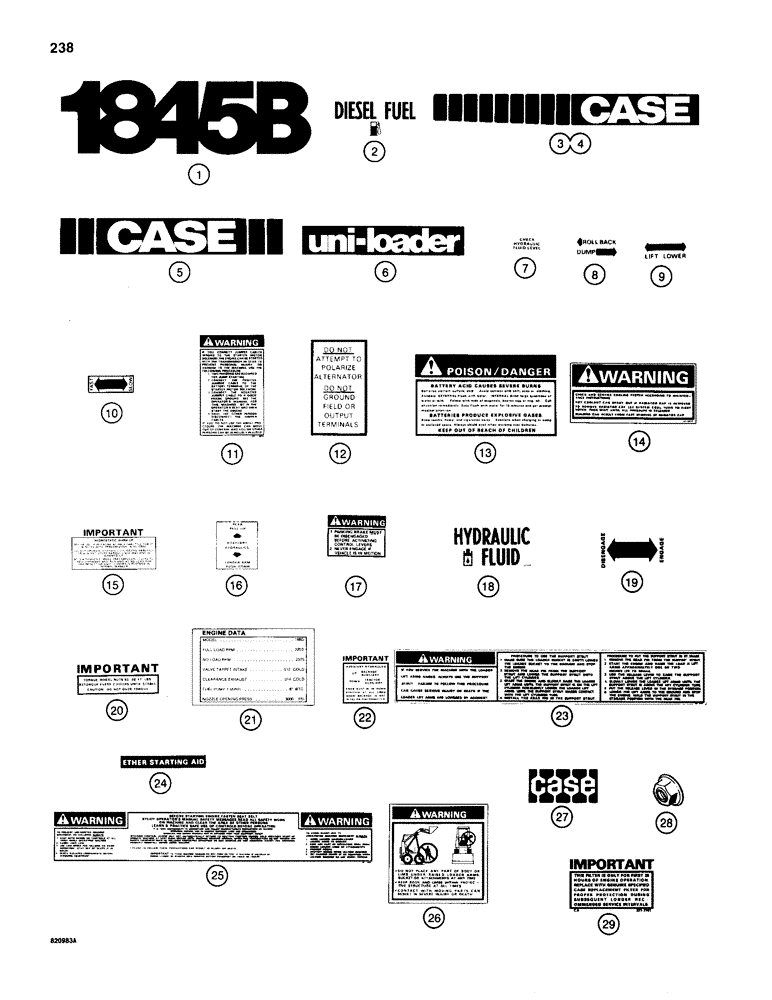

Схема запчастей Case IH 1845B - (238) - DECAL KIT - DIESEL MODELS, USED ON MODELS WITH BLACK AND YELLOW COLOR SCHEME (09) - CHASSIS/ATTACHMENTS
23
5
2
10
14
11
22
7
17
9
18
21
26
16
19
13
3
28
6
20
25
8
24
4
15
27
29
1
12

Артикул

Название

Примечание

Количество

N8248

DECAL

KIT decal, diesel models, Inc: Ref. 1 - 26

1шт.

1

D123581

DECAL

1845B, black

2шт.

2

321-6374

DECAL

diesel fuel

1шт.

3

321-5081

DECAL

Case, loader frame, left-hand, 5", 127 mm high, black

1шт.

4

321-5080

DECAL

Case, loader frame, right-hand, 5", 127 mm high, black

1шт.

5

321-5082

DECAL

Case, rear swing out counterweight, 5", 127 mm high, black

1шт.

6

321-3150

DECAL

Uni-Loader, black

2шт.

7

321-2733

DECAL

hydraulic fluid

1шт.

8

321-2506

DECAL

Rollback-Dump

1шт.

9

321-2509

DECAL

Lift-Lower

1шт.

10

321-3171

DECAL

Slow-Fast

1шт.

11

321-5974

DECAL

jump start

1шт.

12

321-1061

DECAL

alternator

1шт.

13

321-2996

DECAL

Poison/Danger

1шт.

14

321-6672

DECAL

Warning, hot coolant

1шт.

15

321-4197

DECAL

Warm-up instructions

1шт.

16

321-3158

DECAL

Auxiliary Hydraulics

1шт.

17

321-2599

DECAL

Parking Brake

1шт.

18

321-6376

DECAL

hydraulic fluid

1шт.

19

321-3174

DECAL

Disengage-Engage

1шт.

20

321-2973

DECAL

torque wheel nuts

2шт.

21

321-2559

DECAL

engine data

1шт.

22

321-2757

DECAL

auxiliary hydraulics, Up-Down

1шт.

23

321-6214

DECAL

Warning, support strut

1шт.

24

D124152

DECAL

Ether Starting Aid

1шт.

25

321-6460

DECAL

Warning, before starting engine, etc

1шт.

26

D120889

DECAL

Warning, personal safety instructions

1шт.

27

321-4739

EMBLEM

Case

1шт.

28

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT push on, special, for emblem, item 27

2шт.

29

321-2101

DECAL

oil filter

1шт.

Выбрано товаров: 30
