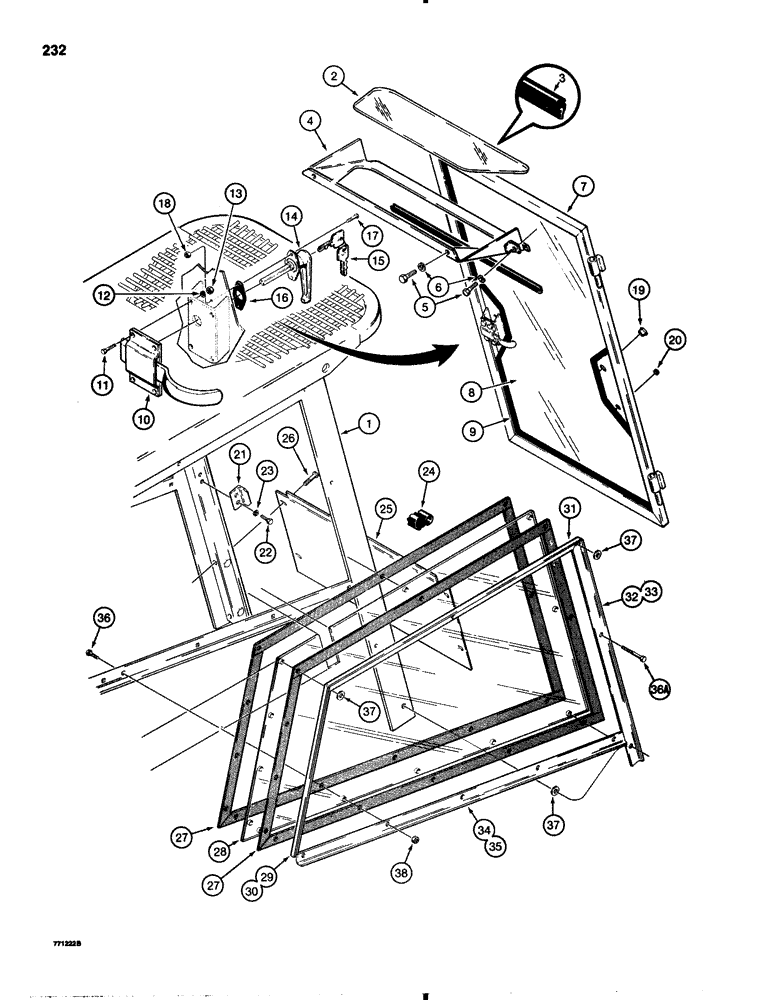

Запчасти Case IH 1845B (232) - ROPS ENCLOSURE, FRONT DOOR AND SIDE WINDOWS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME ROPS, see Fig. 220

1шт.

2

F43434

WINDOW

WINDOW upper

1шт.

3

F43435

MOLDING

SPARE PART SEAL, Serial Range: window-frame

1шт.

4

F93702

SPARE PART FRAME window, upper

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

7

F93709

FRAME ASSY

FRAME door

1шт.

8

F43449

GLASS

WINDOW door

1шт.

9

F43450

GASKET

MOLDING door window

1шт.

10

F93204

LATCH ASSY.

LATCH door

1шт.

11

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

4шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

13

129-141

JAM NUT,Jam, 1/4"-20, G5

NUT, Jam, 1/4"-20, G5

4шт.

14

F93675

HANDLE

HANDLE door, Inc: Ref. 15

1шт.

15

A42653

SET OF 2 KEYS

KEY door, set of two

1шт.

16

F63860

GASKET

GASKET door handle

1шт.

17

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

SCREW No. 10 - 24 NC x 5/8"

2шт.

18

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

19

353-407

PLUG,Dome, .687" hole, Nylon

PLUG wiper mounting hole, if used

1шт.

20

205-11

X

PLUG button, wiper mounting, if used

1шт.

21

D73551

SPARE PART STRIKER door latch

1шт.

22

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

24

D73589

SEAL

SEAL door

1шт.

25

F43454

SPARE PART PANEL closure

1шт.

26

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW, 1/4" - 20 NC x 1/2", plated

4шт.

27

REF

INSTRUCTION

SEAL window mount, cut to length from D73553, see below:

1шт.

28

D71928

SPARE PART WINDOW side

2шт.

29

D72634

SPARE PART FRAME right-hand side window, rear

1шт.

30

D72635

ANGLE

FRAME left-hand side window, rear

1шт.

31

D72638

SPARE PART FRAME side window, upper

2шт.

32

D72637

SPARE PART FRAME right-hand side window, front

1шт.

33

D72636

ANGLE

FRAME left-hand side window, front

1шт.

34

D72633

SPARE PART FRAME right-hand side window, lower

1шт.

35

D72632

SPARE PART FRAME left-hand side window, lower

1шт.

36

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

25шт.

36a

113-133

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

BOLT hex head, 5/16" - 18 NC x 3-1/4", plated

1шт.

37

195-521

WASHER,5/16", SAE

6шт.

38

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self-locking, 5/16" - 18 NC, plated

26шт.

D73553

SEALING STRIP

SEAL 60 ft., 18.3 metre bulk roll

1шт.
