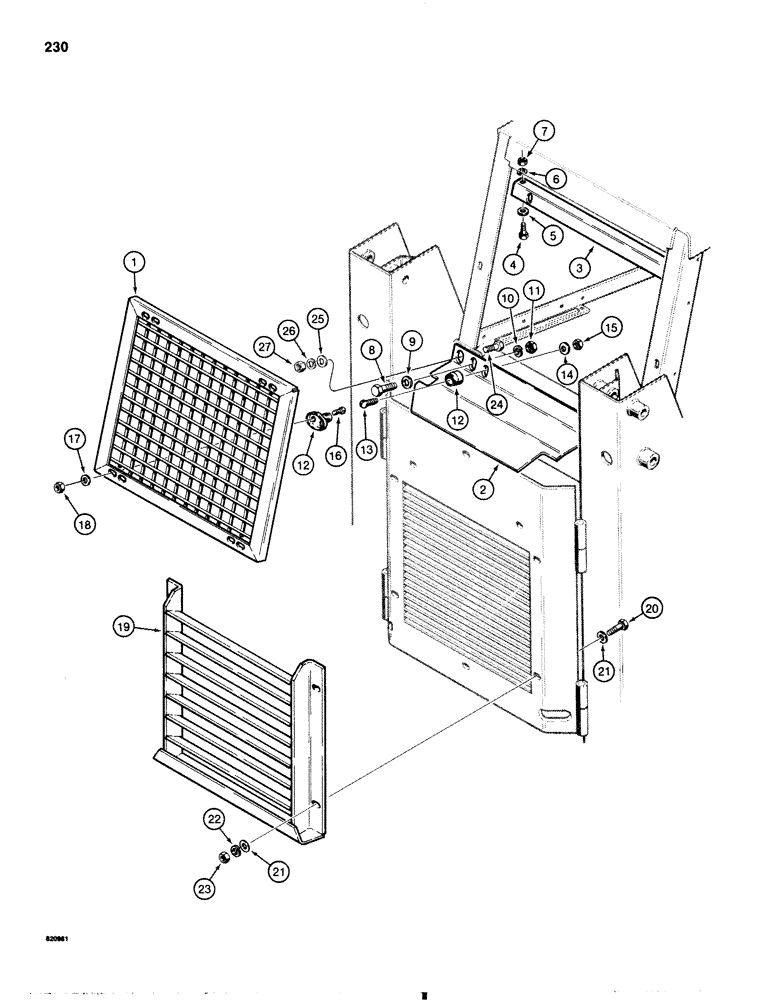

Запчасти Case IH 1845B (230) - FORESTRY GUARDS, REAR SCREENS (09) - CHASSIS/ATTACHMENTS

1

D72953

SCREEN rear

1шт.

2

D72990

SHIELD

swing out counterweight

1шт.

3

D72868

BRACKET support, rear door

1шт.

4

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

5

195-521

WASHER,5/16", SAE

flat, 5/16", plated

2шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

2шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

195-521

WASHER,5/16", SAE

flat, 5/16", plated

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

12

F93104

HOLDER

RETAINER two-piece, rear screen

4шт.

13

182-534

SCREW,Sl Pan Hd, 1/4" - 20 x 1"

MACHINE SCREW pan head slotted, 1/4" - 20 NC x 1", plated

4шт.

14

195-518

WASHER,1/4", SAE

flat, 1/4", plated

4шт.

15

193-1006

NUT,Keps, w/LW, 1/4"-20

hex, self-locking, 1/4" - 20 NC

4шт.

16

171-244

SCREW,Sl Flat Hd, #10 - 24 x 1"

MACHINE SCREW flat head slotted, No. 10 - 24 NC x 1", plated

8шт.

17

195-513

WASHER,#10

flat, No. 10, plated

8шт.

18

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT hex, self-locking, No. 10 - 24 NC

8шт.

19

D79957

GUARD swing out counterweight

1шт.

20

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

21

195-533

WASHER,1/2", SAE

flat, 1/2", plated

8шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

24

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

25

195-533

WASHER,1/2", SAE

flat, 1/2", plated

2шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
