Запчасти Case IH 1845B (010) - MANIFOLDS & CARBURETOR, 159 SPARK IGNITION ENGINE (02) - ENGINE

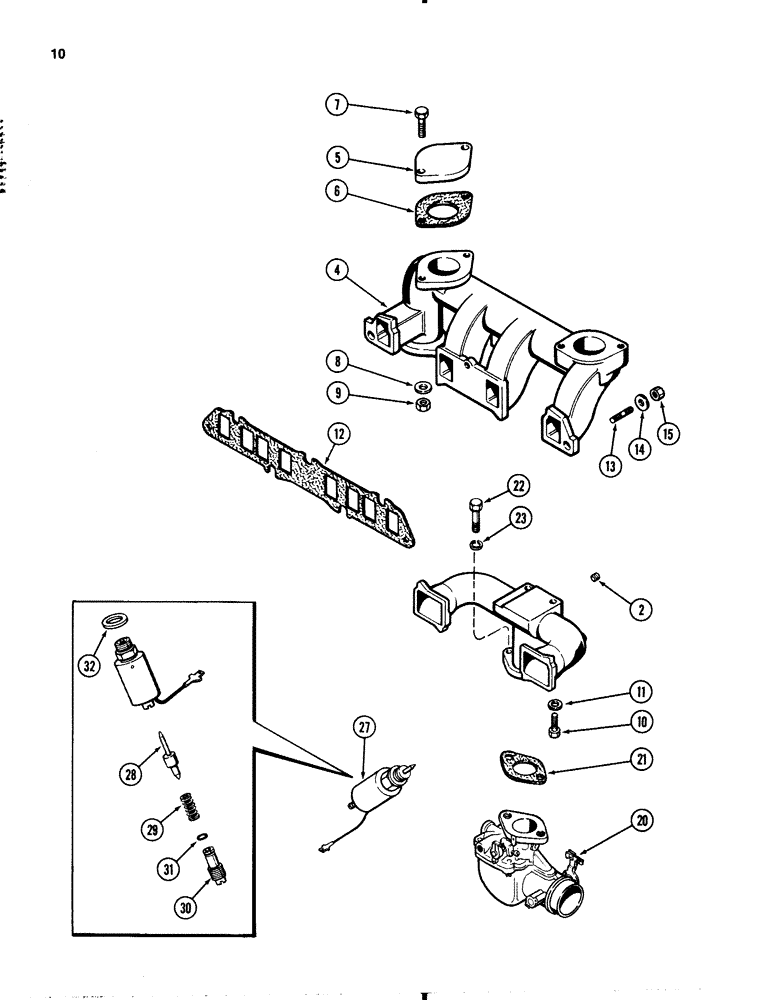

Схема запчастей Case IH 1845B - (010) - MANIFOLDS & CARBURETOR, 159 SPARK IGNITION ENGINE (02) - ENGINE
9
15
14
27
12
23
32
10
29
21
5
7
13
28
22
2
6
8
20
30
4
11
31

Артикул

Название

Примечание

Количество

1

A37004

MANIFOLD

intake

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

square head, 1/4 inch PT

1шт.

A39231

MANIFOLD ASSY

MANIFOLD ASSEMBLY exhaust, Inc: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

MANIFOLD exhaust \s8, Reference No. A39230, \s10

1шт.

5

A38188

PLATE

exhaust manifold

2шт.

6

G46853

MANIFOLD GASKET

manifold plates

2шт.

7

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

8

195-525

WASHER,3/8", SAE

3/8 x 13/16 x 1/16 inch, 10 x 20 x 2 mm

4шт.

9

131-903

NUT,3/8"-16

NUT, 3/8 inch NC, Seez-Pruf

4шт.

10

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

A30030

GASKET

intake and exhaust manifolds

1шт.

13

A29431

STUD

3/8 NC x 1-3/4 inch

7шт.

14

A30058

WASHER

3/8 x 7/8 x 1/8 inch, 10 x 22 x 3 mm

4шт.

14

195-525

WASHER,3/8", SAE

3/8 x 13/16 x 1/16 inch, 10 x 20 x 2 mm

3шт.

15

131-903

NUT,3/8"-16

NUT brass, hex, 3/8 inch NC

7шт.

20

REF

INSTRUCTION

CARBURETOR ASSEMBLY, See Figure 30 CARBURETOR

1шт.

21

1342824C1

GASKET

carburetor to manifold CARBURETOR

1шт.

22

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Carburetor Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

23

92-6

LOCK WASHER,3/8"

Carburetor 3/8"

2шт.

27

A38253

SOLENOID

ASSEMBLY, anti dieseling, Carburetor, Inc: Ref. 28 - 32

1шт.

28

NSS

NOT SOLD SEPARAT

PLUNGER solenoid, Order: A38253, Carburetor

1шт.

29

A41557

SPRING

plunger, 3/4 inch free length, 19 mm, Carburetor

1шт.

30

A41559

SCREW

spring adjusting, Carburetor

1шт.

31

A51274

O-RING,0.145" ID x 0.285" OD

adjusting screw, Carburetor

1шт.

32

B51707

GASKET

solenoid, Carburetor

1шт.

Выбрано товаров: 26
