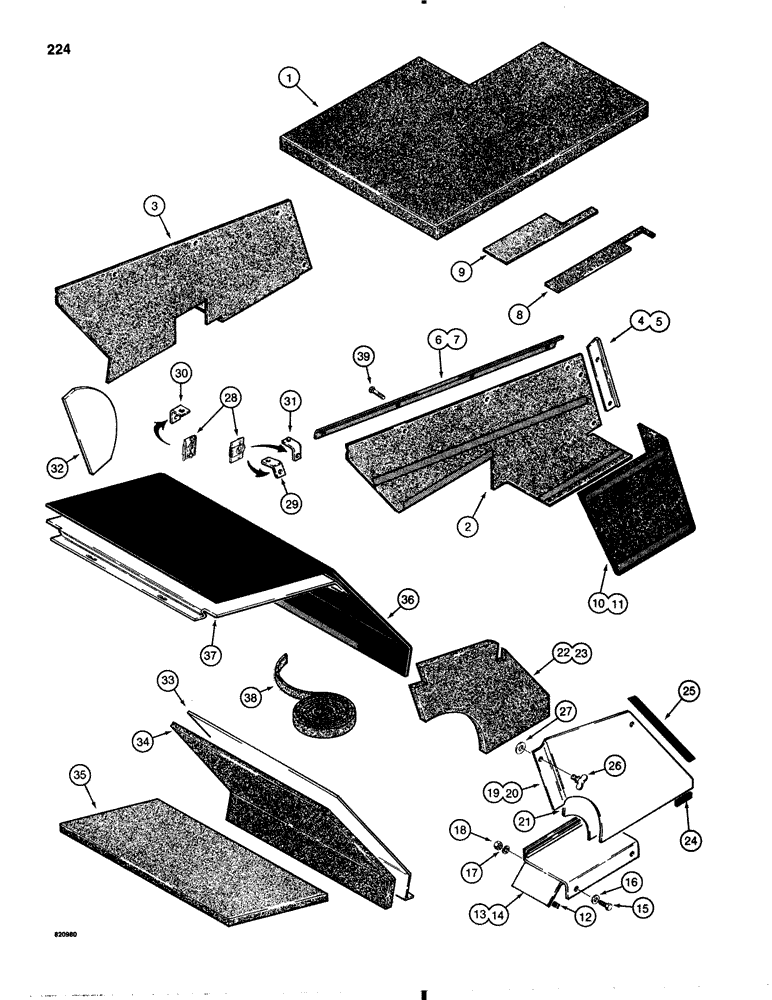

Запчасти Case IH 1845B (224) - NOISE CONTROL PADS AND PANELS (09) - CHASSIS/ATTACHMENTS

1

D73167

LINING

HEADLINER ROPS

1шт.

2

D87363

PADDING

PAD side panel, right-hand

1шт.

3

D87362

PADDING

PAD side panel, left-hand

1шт.

4

D76884

STRIP

trim, right-hand, front

1шт.

5

D76883

STRIP

trim, left-hand, front

1шт.

6

D76817

STRIP

trim, right-hand, top

1шт.

7

D76818

STRIP

trim, left-hand, top

1шт.

8

D123631

PADDING

PAD front closure panel, right-hand

1шт.

9

D86787

PAD

front closure panel, left-hand

1шт.

10

D76819

RUBBER PAD

PAD fender, right-hand

1шт.

11

D76820

RUBBER PAD

PAD fender, left-hand

1шт.

12

D66072

SEALING STRIP

sealing, rear closure panel

2шт.

13

D75661

PANEL

rear closure, right-hand

1шт.

14

D72936

PANEL rear closure, left-hand

1шт.

15

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

16

195-521

WASHER,5/16", SAE

flat, 5/16", plated

4шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

18

9635082

NUT,5/16" - 18, Gr 5

4шт.

19

D75007

PANEL

engine, right-hand

1шт.

20

D75006

PANEL

engine, left-hand

1шт.

21

D76785

PLATE

closure, engine side panel

2шт.

22

D74701

LARGE PLATE

PAD engine panel, right-hand

1шт.

23

D74702

LARGE PLATE

PAD engine panel, left-hand

1шт.

24

D66072

SEALING STRIP

sealing, engine panel, lower

2шт.

25

D66071

SEALING STRIP

sealing, engine panel, side

2шт.

26

D79733

STUD

wing head

4шт.

27

D77754

GROMMET

WASHER rubber

4шт.

28

D77757

HOLDER

RETAINER engine panel brackets

4шт.

29

D72931

BRACKET

engine panel, right-hand, rear

1шт.

30

D72932

BRACKET

engine panel, left-hand, rear

1шт.

31

D77246

BRACKET

engine panel, front

2шт.

32

D76786

PLATE

closure, engine panel, on frame

2шт.

33

D71088

SHIELD heat, lower

1шт.

34

D74720

PADDING

PAD lower heat shield

1шт.

35

D122760

NO LONGER SERVICED

PAD upper heat shield

1шт.

36

D122759

INSULATOR

MAT vinyl covered, heat shield

1шт.

37

REF

INSTRUCTION

SHIELD heat, upper, see Fig. 222

1шт.

38

D76905

FASTENER

hook and loop, vibration insulator, 75 ft 2286 cm long

1шт.

39

111-221

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1 1/2", G2

8шт.
