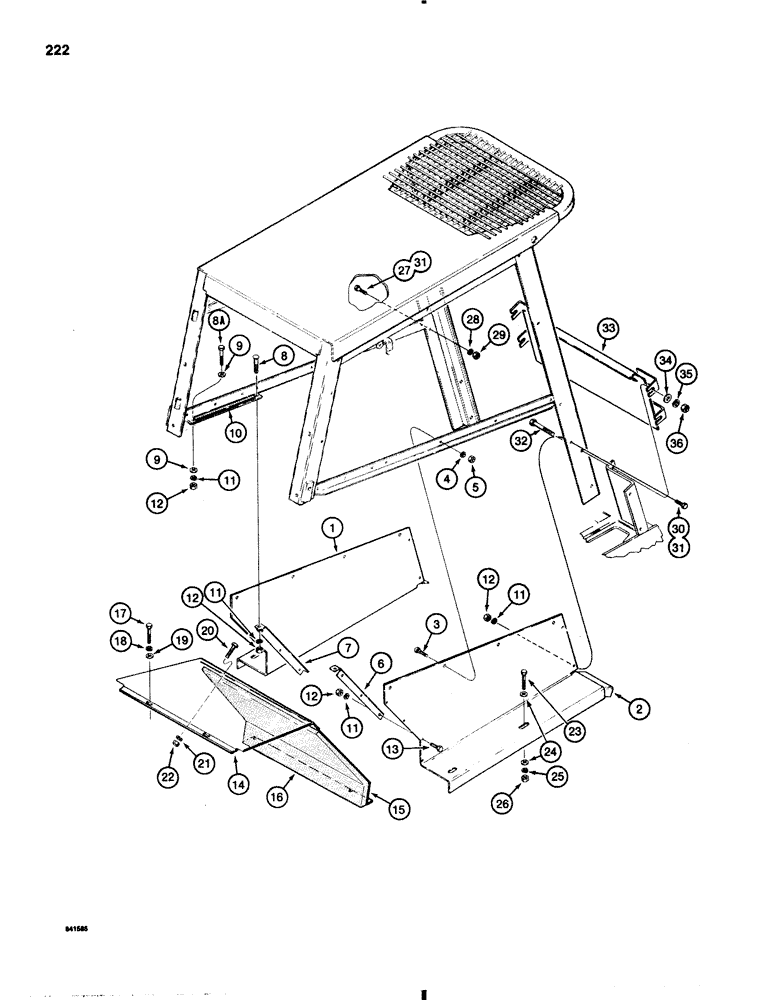

Запчасти Case IH 1845B (222) - ROPS CANOPY CLOSURE PANELS (09) - CHASSIS/ATTACHMENTS

1

D72187

KIT

CLOSURE left-hand, includes decals

1шт.

2

D72186

KIT

CLOSURE right-hand, includes decals

1шт.

3

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2, Used on models without noise control, see Figure 224 for hardware used on noise control models

8шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

5

9635082

NUT,5/16" - 18, Gr 5

8шт.

6

D72551

SUPPORT

closure, right-hand

1шт.

7

D72550

SUPPORT

closure, left-hand

1шт.

8

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

8a

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

195-521

WASHER,5/16", SAE

flat, 5/16", plated

4шт.

10

D72506

PAD

heat shield support

2шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

12шт.

12

9635082

NUT,5/16" - 18, Gr 5

12шт.

13

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

14

D120876

GUARD

SHIELD heat, upper

1шт.

15

D72928

GUARD

SHIELD heat, lower, includes pad, Inc: Ref. 16

1шт.

16

REF

INSTRUCTION

PAD lower heat shield, 28-1/4", 716 mm x 19", 485 mm, cut from D59897 bulk pad, item 16A

1шт.

16a

D59897

PADDING

PAD bulk, 54", 1372 mm x 36", 914 mm x 1", 25 mm, not shown

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

23

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Used on forestry models Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

24

195-525

WASHER,3/8", SAE

flat, 3/8", plated, used on forestry models

8шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Used on forestry models 3/8"

4шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Used on forestry models 3/8"-16, G5

4шт.

27

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

29

9635082

NUT,5/16" - 18, Gr 5

2шт.

30

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

31

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

Replaces items 27 and 30 on noise control models Hex, 5/16"-18 x 1 1/4", G5

4шт.

32

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

33

D81727

GUARD

foot

1шт.

34

D78732

WASHER

special

4шт.

35

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

36

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.
