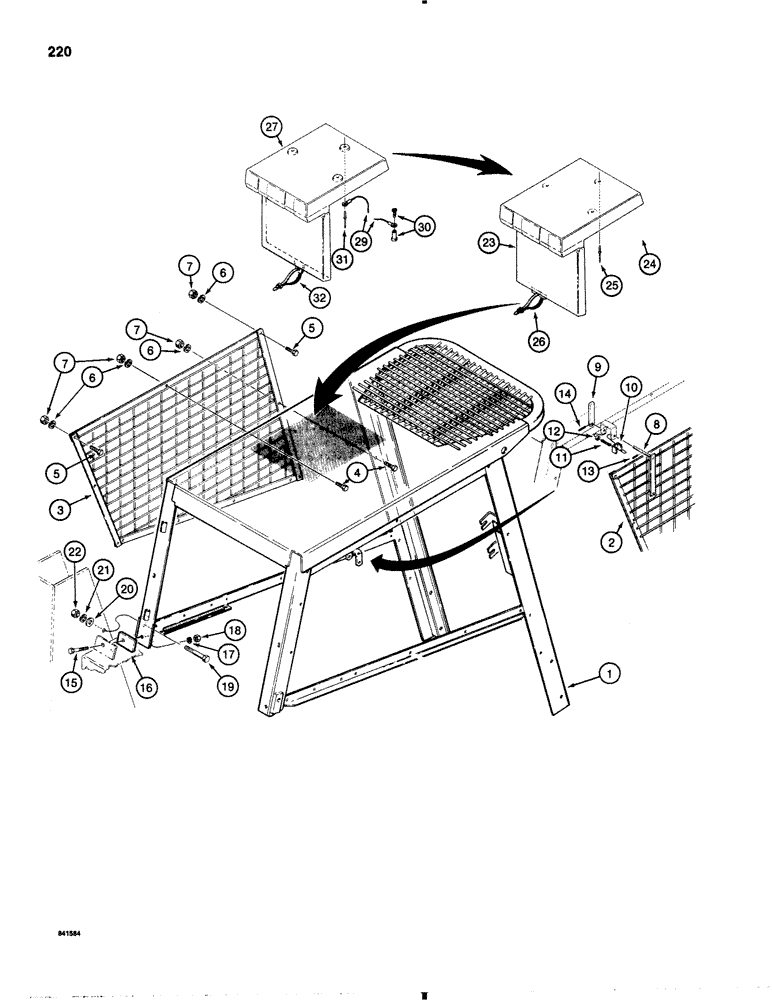

Запчасти Case IH 1845B (220) - ROPS CANOPY AND SIDE SCREENS (09) - CHASSIS/ATTACHMENTS

1

D76573

FRAME

ROPS, for service order D72185 kit, see below

1шт.

Part of service kit, P/N D72185

1шт.

2

D90230

SCREEN

right-hand

1шт.

Part of service kit, P/N D72185

1шт.

3

F93699

SCREEN

left-hand

1шт.

Part of service kit, P/N D72185

1шт.

4

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

See Figure: 104 for the mounting hardware used in the two upper holes located on the right-hand front ROPS post.

1шт.

5

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

3шт.

See Figure: 104 for the mounting hardware used in the two upper holes located on the right-hand front ROPS post.

1шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

See Figure: 104 for the mounting hardware used in the two upper holes located on the right-hand front ROPS post.

1шт.

7

9635082

NUT,5/16" - 18, Gr 5

6шт.

See Figure: 104 for the mounting hardware used in the two upper holes located on the right-hand front ROPS post.

1шт.

8

D89220

ARM

support strut

1шт.

9

D89708

LEVER

support strut

1шт.

10

D80803

BRACKET

support strut

1шт.

11

D79941

SPRING

support strut

1шт.

12

195-2028

WASHER,.391" x 5/8" x .065"

flat, 3/8"

1шт.

13

138-317

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

14

138-305

LOCK PIN,1/8" x 1", Slotted, Stainless

Pin, 1/8" x 1, Slotted, Stainless

1шт.

15

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

16

D71955

SHIM,.059" Thk

1шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

19

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

20

195-533

WASHER,1/2", SAE

flat, 1/2", plated

2шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

23

R38893

CASE

BOX operators manual, Inc: Ref. 24

1шт.

24

N7120

LATCH

operators manual box

1шт.

25

151-522

RIVET,Pop, 3/16" x .575"

POP RIVET operators manual box

3шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

27

R46464

CASE

BOX operators manual, if used, Inc: Ref. 28

1шт.

28

N7189

BEARING

LATCH used with R46464 operators manual box, if used

1шт.

29

R46465

CABLE,36mm L

CORD manual retaining, used with R46464 manual box

1шт.

30

R46463

SCREW,0.18" x 0.75"

special, manual retaining, used with R46464 manual box

1шт.

31

151-522

RIVET,Pop, 3/16" x .575"

POP RIVET operators manual box

3шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

D72185

KIT

service, ROPS frame, Includes: Ref. 1, 2, 3, plus mounting hardware and decals. Also includes items 1 and 2 on Fig. 222

1шт.
