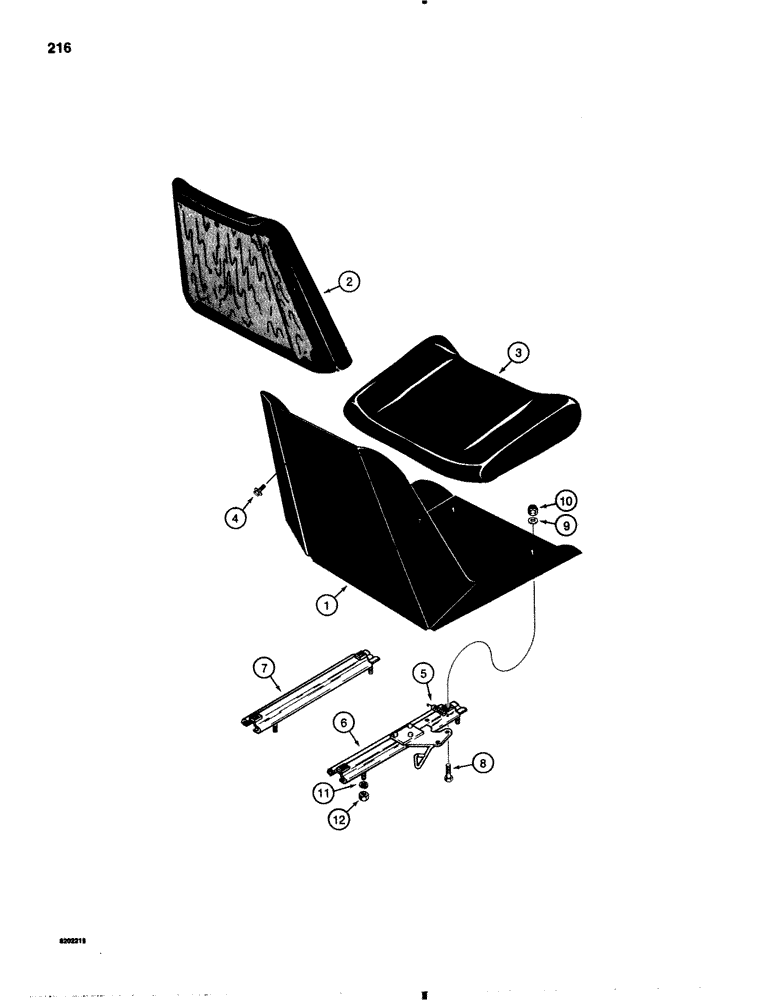

Запчасти Case IH 1845B (216) - STANDARD OPERATORS SEAT (09) - CHASSIS/ATTACHMENTS

D56576

SEAT

ASSEMBLY black, standard, without armrests, no longer available, order

1шт.

D124516 brown seat assembly for service, if used

1шт.

D124516

SEAT

ASSEMBLY brown, standard, without armrests, if used, Inc: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL seat

1шт.

2

D53583

CUSHION

BACKREST seat, black, if used

1шт.

2

N9035

CUSHION

BACKREST seat, brown, if used

1шт.

3

D53584

CUSHION

bottom, black, if used

1шт.

3

N9036

CUSHION

bottom, brown, if used

1шт.

4

193-545

SCREW,SEMS, Hex Hd, 1/4"-20 x 3/4"

MACHINE SCREW hex head, with internal tooth lock washer, 1/4" -20 NC x 3/4", zinc plated

5шт.

5

D55954

SPRING

return, adjuster

1шт.

6

D53585

CUSHION

SLIDE seat, adjuster

1шт.

7

D53586

SLIDE

seat, non-adjusting

1шт.

8

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

4шт.

9

195-103

WASHER,5/16"

flat, , plated 5/16"

4шт.

10

131-489

LOCK NUT,5/16"-24, G8

NUT hex, self-locking, 5/16" - 24 NF, plated

4шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

12

9635082

NUT,5/16" - 18, Gr 5

4шт.
