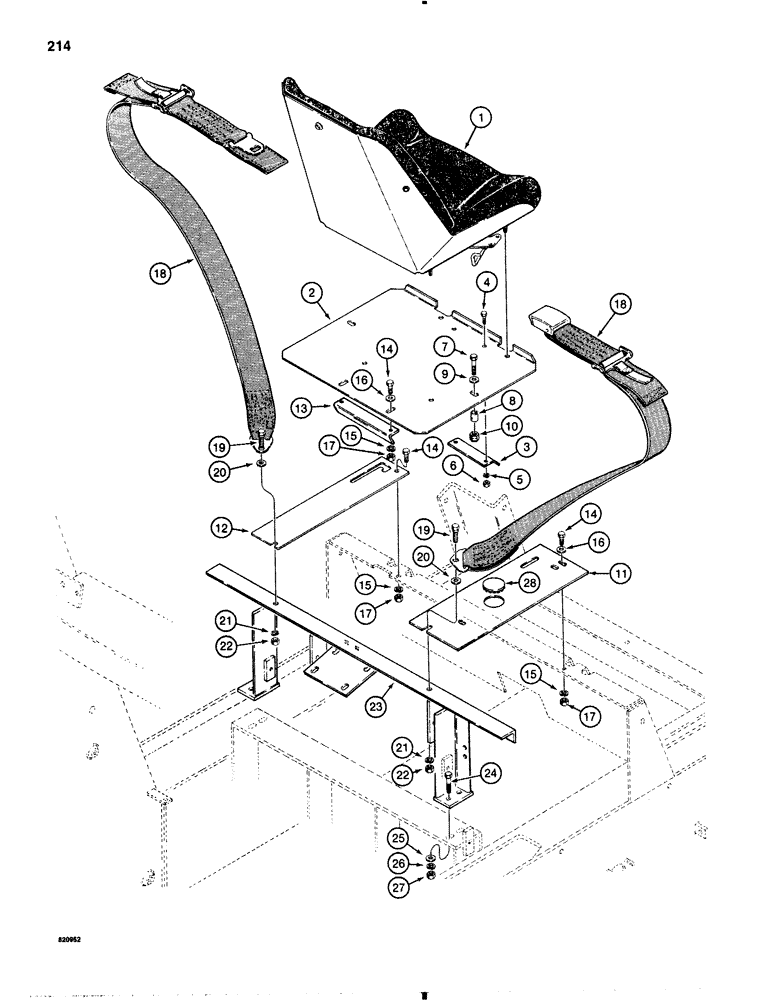

Запчасти Case IH 1845B (214) - SEAT MOUNTING AND SEAT BELTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SEAT ASSEMBLY for correct assembly and components, see Figures: 216 and 217A

1шт.

2

D64963

PLATE ASSY.

PLATE seat mounting

1шт.

3

D65236

BRACKET

ANGLE seat retainer, front

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

2шт.

7

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

8

D95554

SPACER

seat plate

2шт.

9

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

10

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self-locking, 3/8" - 16 NC, plated

2шт.

11

D121826

PANEL closure, right-hand

1шт.

12

D70427

PLATE

PANEL closure, left-hand

1шт.

13

D65012

BRACKET

ANGLE seat plate, rear

1шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

195-525

WASHER,3/8", SAE

flat, 3/8", plated

3шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

18

D85816

SAFETY BELT

SEAT BELT, 3", 76 mm wide, if used

1шт.

18

D133868

SAFETY BELT ,2.00" W

If used 2.00" W

1шт.

19

F42236

STEP BOLT

SHOULDER BOLT special

2шт.

20

195-104

WASHER,3/8"

flat, , plated 3/8"

2шт.

21

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

22

425-117

NUT,7/16"-20, G5

hex, 7/16" - 20 NC, plated

2шт.

23

D89733

SUPPORT

seat

1шт.

24

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

25

195-533

WASHER,1/2", SAE

flat, 1/2", plated

4шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

27

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

28

353-417

PLUG,Dome, 2.000" hole, Nylon

right-hand closure panel, 2", 51 mm diameter

1шт.
