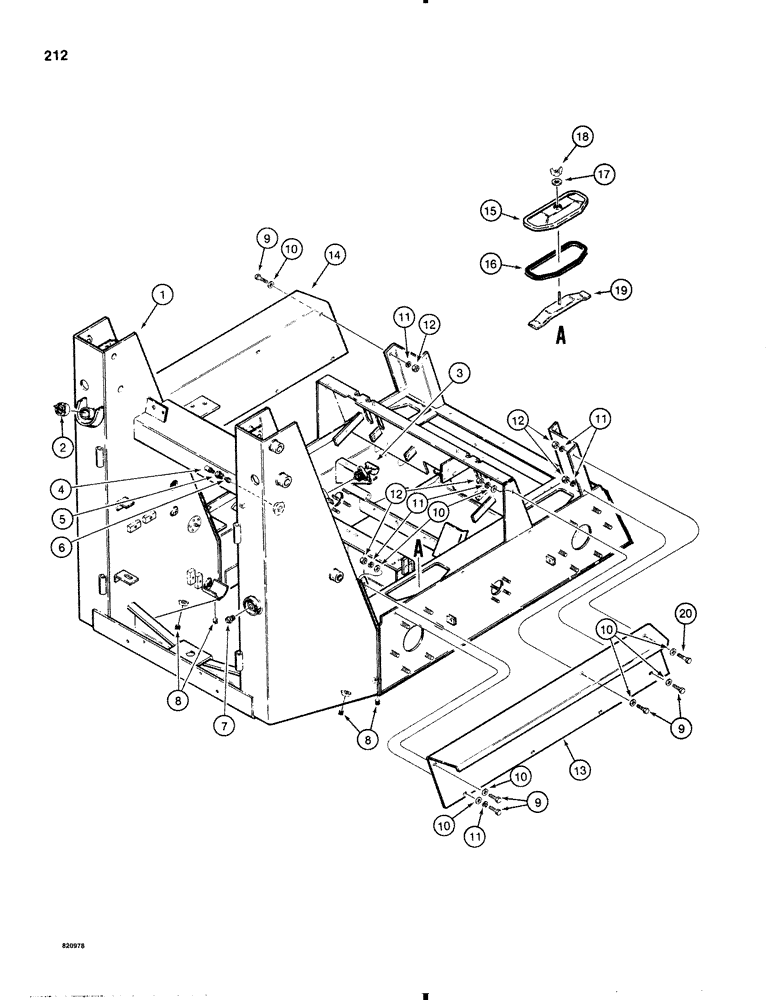

Запчасти Case IH 1845B (212) - CHASSIS (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

CHASSIS Uni-Loader

1шт.

2

D93757

CAP

fuel, vented

1шт.

3

D75653

CAP

hydraulic oil reservoir, nonvented

1шт.

4

R15538

VALVE

air inlet

1шт.

5

D63506

ADAPTER

breather

1шт.

6

D63543

BREATHER

FILTER valve, breather

1шт.

7

D63875

PLUG

GAUGE sight, oil

1шт.

8

221-844

PLUG,Hex Soc, 1/2"-14

square socket, 1/2" NPT

4шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

13шт.

10

195-525

WASHER,3/8", SAE

flat, 3/8", plated

18шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

13

D75679

FENDER

right-hand

1шт.

14

D75680

FENDER

left-hand

1шт.

15

D134109

COVER

chain access

4шт.

Part of kit, P/N D128544

1шт.

16

D89228

GASKET

cover, chain access, flat, order D128544 kit, see below

4шт.

16

D125759

GASKET,7.87mm Thk

- cover, chain access, double lip

4шт.

Part of kit, P/N D128544

1шт.

17

D70868

WASHER,9.53mm ID x 19.05mm OD x 3.05mm Thk

3/8", special, sealing

4шт.

18

129-410

WING NUT,3/8"-16

3/8" - 16 NC, plated

4шт.

19

D133239

BRACKET

RETAINER cover

4шт.

20

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

RH side Hex, 3/8"-16 x 1 3/4", G5

1шт.

D128544

GASKET

KIT inspection cover and gasket, Includes: Ref. 15, 16

1шт.
