Запчасти Case IH 1845B (210) - COUNTERWEIGHTS & DRAWBAR, SWING OUT COUNTERWT, FRONT COUNTERWT, REAR COUNTERWT, DRAWBAR (09) - CHASSIS/ATTACHMENTS

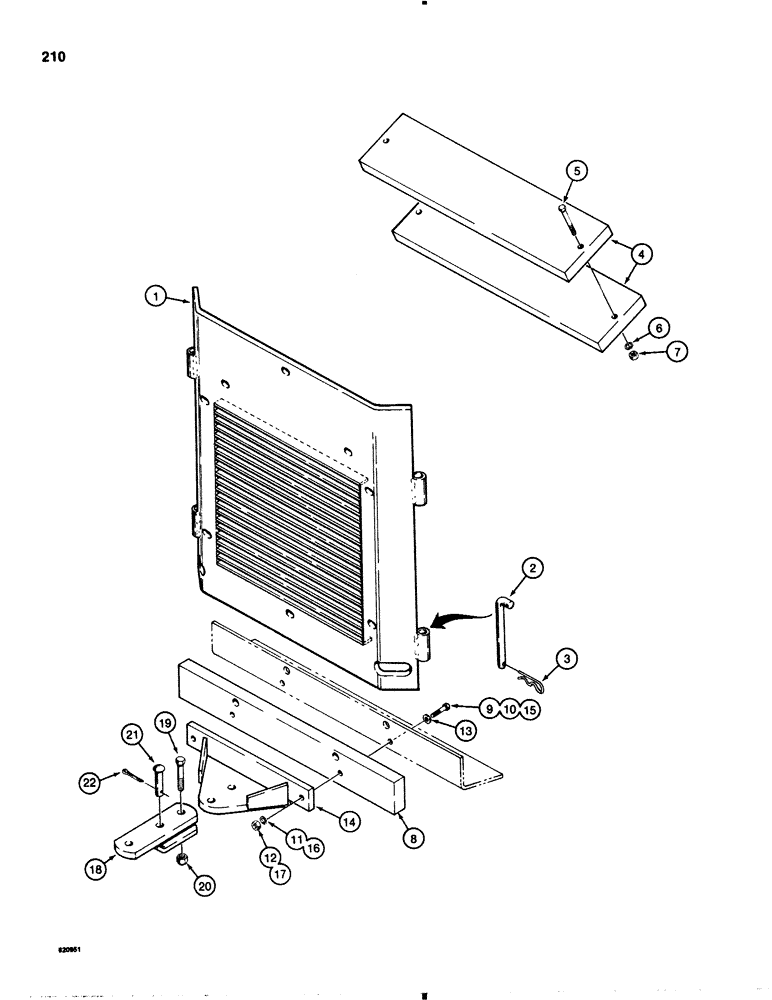

Схема запчастей Case IH 1845B - (210) - COUNTERWEIGHTS & DRAWBAR, SWING OUT COUNTERWT, FRONT COUNTERWT, REAR COUNTERWT, DRAWBAR (09) - CHASSIS/ATTACHMENTS
17
7
6
15
8
1
3
12
9
20
14
11
19
10
2
5
22
13
18
16
21
4

Артикул

Название

Примечание

Количество

1

D68476

WEIGHT

COUNTERWEIGHT swing out

1шт.

2

D59138

PIN

hinge, swing out counterweight

4шт.

3

136-164

COTTER PIN,Int, 5/16" x .120"

HAIR PIN pin retaining, swing out counterweight

4шт.

4

D53413

WEIGHT

COUNTERWEIGHT front

2шт.

5

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- hex head, 1/2" - 13 NC x 3-3/4", plated, front counterweight

2шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Front counterweight 1/2"

2шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

Front counterweight 1/2"-13, G5

2шт.

8

D65893

COUNTERWEIGHT rear, add on, uses 1/2" hardware, machinery item, see Fig. 2 for ordering, if used, rear counterweight

1-2шт.

8

D126937

COUNTERWEIGHT rear, add on, uses 5/8" hardware, machinery item, see Fig. 2 for ordering, if used, rear counterweight

1-2шт.

9

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

Used with two D65893 rear counterweights Hex, 1/2"-13 x 4 1/2", G5

2шт.

9

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

hex head, 5/8" - 11 NC x 4", plated, used with two D126937 rear counterweights

2шт.

10

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

Used with one D65893 rear counterweight Hex, 1/2"-13 x 3 1/4", G5

2шт.

10

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

hex head, 5/8" - 11 NC x 3", plated, used with one D126937 rear counterweight

2шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used with D65893 rear counterweight 1/2"

2шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

Used with D65893 rear counterweight 1/2"-13, G5

2шт.

12

129-107

NUT,5/8"-11, G5

Used with D126937 rear counterweight 5/8"-11, G5

2шт.

13

195-533

WASHER,1/2", SAE

flat, 1/2", plated, used with one D65893 rear counterweight

2шт.

14

D70392

DRAWBAR, SWINGING

FRAME drawbar

1шт.

15

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

If used, drawbar Hex, 1/2"-13 x 2", G5

2шт.

15

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

If used, drawbar Hex, 5/8"-11 x 2", G5

2шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , If used, drawbar 1/2"

2шт.

16

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , If used, drawbar 5/8"

2шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

If used, drawbar 1/2"-13, G5

2шт.

17

129-107

NUT,5/8"-11, G5

If used, drawbar 5/8"-11, G5

2шт.

18

D55525

DRAWBAR, SWINGING

DRAWBAR swinging

1шт.

19

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Drawbar Hex, 3/4"-10 x 3", G5

1шт.

20

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, , Drawbar 3/4"-10, GB

1шт.

21

VB1646

CLEVIS

PIN drawbar

1шт.

22

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4", drawbar

1шт.

Выбрано товаров: 29
