Запчасти Case IH 1845B (208) - SCARIFIER (09) - CHASSIS/ATTACHMENTS

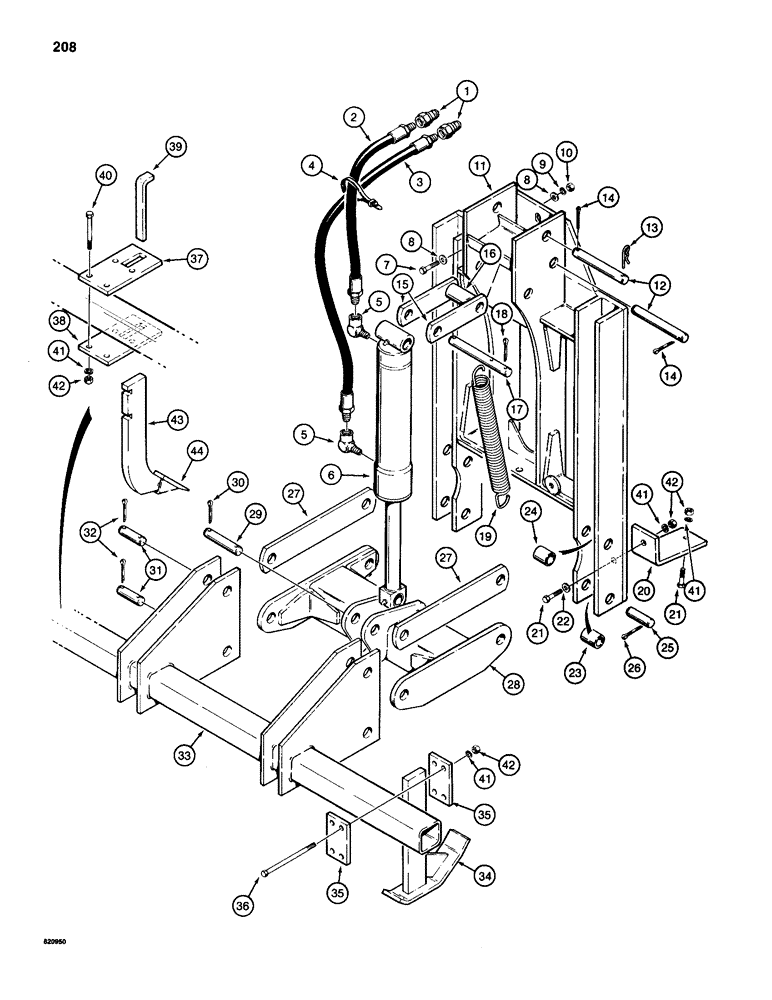

Схема запчастей Case IH 1845B - (208) - SCARIFIER (09) - CHASSIS/ATTACHMENTS
5
18
25
3
4
32
15
5
42
28
24
30
11
33
31
37
10
41
41
21
8
26
40
43
17
6
22
8
12
13
21
42
39
34
14
42
1
35
35
19
27
2
27
9
23
36
16
14
29
38
41
7
42
20
44

Артикул

Название

Примечание

Количество

1

D60708

COUPLING, BREAK AWAY

QUICK DISCONNECT coupling, male

2шт.

2

D70852

HOSE

cylinder, closed end, 32", 813 mm long

1шт.

2

D70852

HOSE

cylinder, closed end, 32", 813 mm long

1шт.

3

D70853

HOSE

cylinder, rod end, 42", 1067 mm long

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

5

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

STREET ELBOW 90 degree

2шт.

6

REF

INSTRUCTION

CYLINDER scarifier, parts list Figure 184

1шт.

7

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

8

R24323

WASHER

1/2", hardened

16шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

11

D72014

FRAME scarifier

1шт.

12

D69182

AXLE PIN

PIN retaining

2шт.

13

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

PIN, SPLIT (COTTER), , Hair, Retaining, Replaced by 1978738C1 Int, 7/16" x .177"

1шт.

14

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

3шт.

15

T42033

DRAG LINK

LINK cylinder, upper

2шт.

16

T42034

SPACER

link, frame, top

1шт.

17

T42035

AXLE PIN

PIN cylinder mounting

1шт.

18

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

3шт.

19

T42060

SPRING

tension

1шт.

20

D65836

STRAP

BRACKET, Serial Range: frame-loader

2шт.

21

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

22

R24323

WASHER

1/2", hardened

2шт.

23

B18283

SPACER

lower link

2шт.

24

D71769

SPACER upper link

2шт.

25

T42041

AXLE PIN

PIN links

4шт.

26

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

8шт.

27

D70749

LINK scarifier, upper

2шт.

28

D71752

LINK scarifier, lower

1шт.

29

T50222

PIN

cylinder to lower link

1шт.

30

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

31

T50222

PIN

links to tool bar

4шт.

32

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

8шт.

33

D71754

BAR tool

1шт.

34

D59800

SPARE PART

SHOE depth control

2шт.

35

D65907

PLATE clamp, shoe

4шт.

36

113-2421

BOLT,Hex, 1/2" - 13 x 8", Gr 5

8шт.

37

D65905

PLATE

tooth, upper

5шт.

38

D70739

PLATE

tooth, lower

5шт.

39

T42056

KEY

tooth, retaining

5шт.

40

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

20шт.

41

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

32шт.

42

129-105

NUT,Hex, 1/2" - 13, Gr 5

32шт.

T42054

TOOTH

ASSEMBLY scarifier, Inc: Ref. 43

5шт.

43

NSS

NOT SOLD SEPARAT

SHANK tooth

1шт.

44

K3871

POINT

tooth

1шт.
