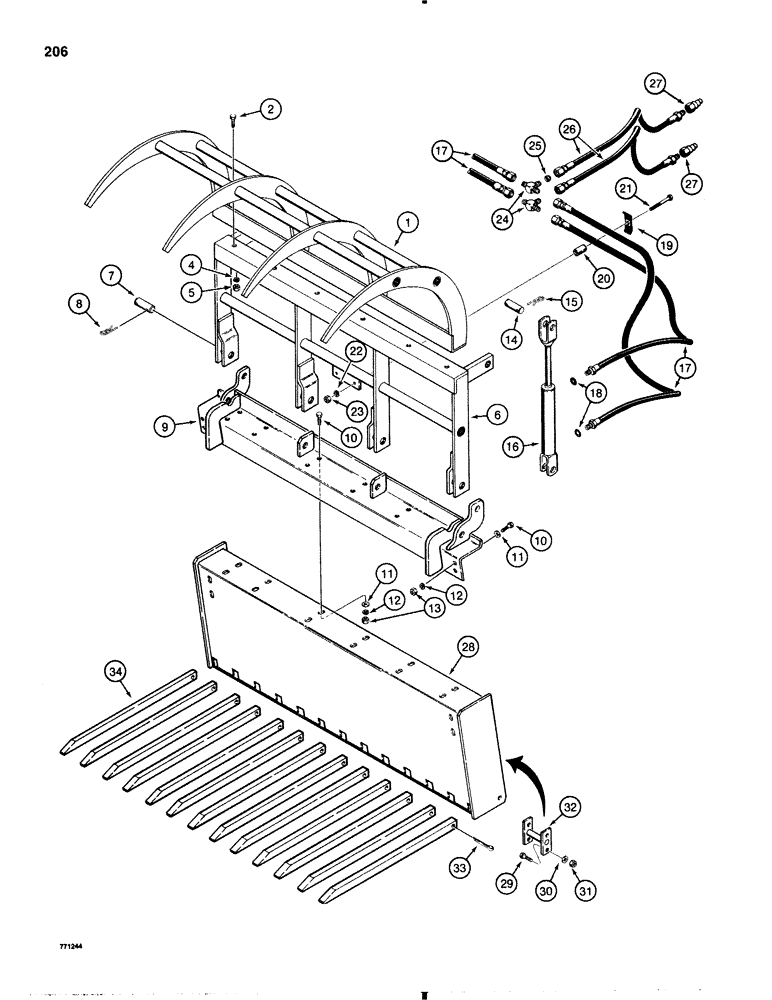

Запчасти Case IH 1845B (206) - MANURE FORK AND GRAPPLE (09) - CHASSIS/ATTACHMENTS

1

T41575

TINE

FORK grapple

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

3

RESERVED

1шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

6

D70960

FRAME

grapple mounting

1шт.

7

D61036

PIN

mounting, Serial Range: frame-upright

4шт.

8

1978738C1

HAIR PIN COTTER

retaining

8шт.

9

D72307

FRAME

upright

1шт.

10

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

16шт.

11

195-533

WASHER,1/2", SAE

flat, 1/2", plated

16шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

16шт.

14

D61036

PIN

mounting, cylinder

4шт.

15

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

PIN, SPLIT (COTTER), , Hair, Retaining Int, 7/16" x .177"

8шт.

16

REF

INSTRUCTION

CYLINDER grapple, parts list Figure: 186

2шт.

17

D70254

HOSE,9.53mm ID x 762mm L, SAE 100R2

at cylinders, 30", 762 mm long, Inc: Ref. 18

4шт.

19

D40236

CLAMP

hose

2шт.

20

D34244

SPACER

hose

2шт.

21

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

24

218-594

TEE,3/4"-16, 37 Degree

male

2шт.

25

D71629

FITTING

RESTRICTOR hose

1шт.

26

D72087

HOSE

to quick disconnect, 48", 1219 mm long

2шт.

27

D60708

COUPLING, BREAK AWAY

QUICK DISCONNECT coupling, male

2шт.

28

D66170

FRAME

manure fork

1шт.

29

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

8шт.

30

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER, 5/8",hardened, plated

8шт.

31

129-107

NUT,5/8"-11, G5

8шт.

32

D71787

PIN

tool tach

2шт.

33

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

13шт.

34

T40795

TINE

manure

13шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.
