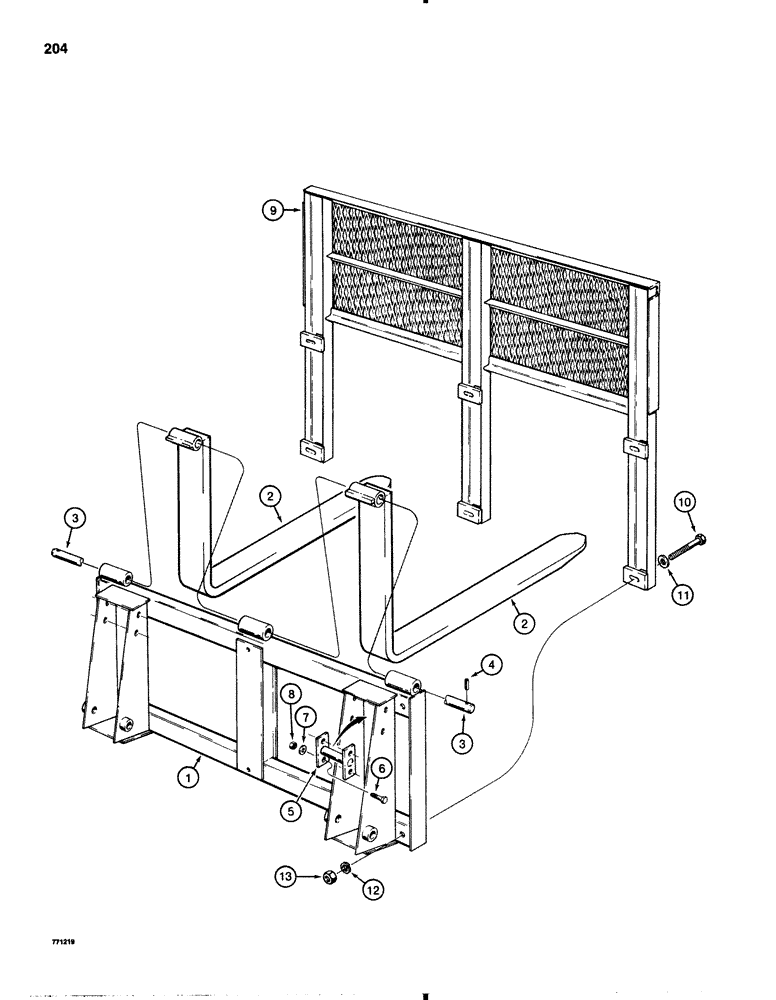

Запчасти Case IH 1845B (204) - PALLET FORKS AND BRICK GUARD (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME pallet fork, machinery item, see Figure: 2 for ordering

1шт.

2

D77683

FORK

pallet

2шт.

3

T41522

ROD

fork mounting

1шт.

4

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

5

D71787

PIN

tool tach

2шт.

6

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

8шт.

7

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER special

8шт.

8

129-107

NUT,5/8"-11, G5

8шт.

9

REF

INSTRUCTION

GUARD brick, machinery item, see Figure: 2 for ordering

1шт.

10

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

6шт.

11

195-106

WASHER,1/2"

flat, , plated 1/2"

6шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.
