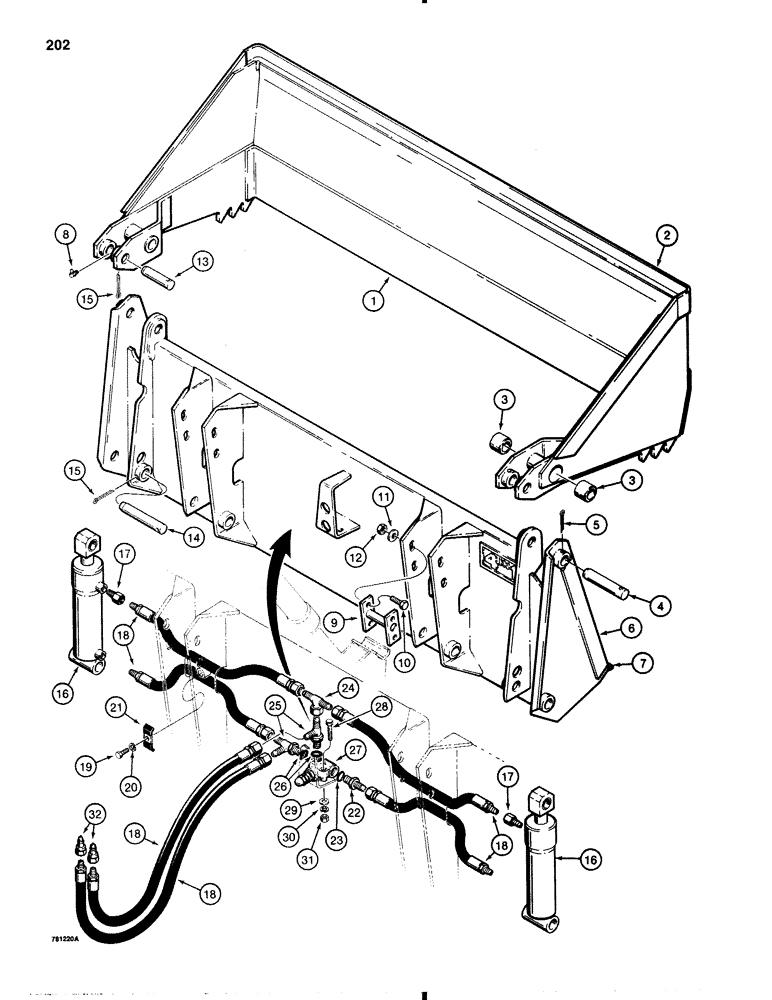

Запчасти Case IH 1845B (202) - CLAM BUCKET (09) - CHASSIS/ATTACHMENTS

D19122

BUCKET

ASSEMBLY clam, machinery item, see Figure: 2 for ordering, Inc: Ref. 1 - 7

1шт.

D77868

CLAMP

CLAM ASSEMBLY bucket, Inc: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

CLAM bucket

1шт.

2

D65097

EDGE, CUTTING

CUTTING EDGE clam

1шт.

3

D34203

BUSHING

clam pivot

4шт.

4

T42228

PIN

Pivot, Serial Range: Clam-blade

2шт.

5

132-159

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

2шт.

D79117

BLADE ASSEMBLY bucket, Inc: Ref. 7 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

BLADE bucket

1шт.

7

D77870

BLADE

CUTTING EDGE blade

1шт.

8

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Short 90º, 1/8" NPT x .84" lg

2шт.

9

D71787

PIN

tool tach

2шт.

10

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

11

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER special

8шт.

12

129-107

NUT,5/8"-11, G5

8шт.

13

T42227

PIN

Cylinder mounting, Upper

2шт.

14

T42234

PIN

cylinder mounting, lower

2шт.

15

132-159

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

4шт.

16

REF

INSTRUCTION

CYLINDER clam, parts list Figure: 182

2шт.

17

217-1012

ADAPTER,1/4" - 18 Male NPTF x 3/8" - 18 Female NPTF

straight, male - female

2шт.

18

D40809

HOSE

hydraulic, 33 - 1/2", 851 mm long

6шт.

19

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21

D40236

CLAMP

hose

2шт.

22

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 23 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

24

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

upper, Inc: Ref. 26

1шт.

25

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable 3/4"-16, 37º x 3/4"-18, O-Ring Run

2шт.

27

REF

INSTRUCTION

RELIEF VALVE parts list Fig: 172

1шт.

28

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

29

195-518

WASHER,1/4", SAE

flat, 1/4", plated

2шт.

30

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

31

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

32

D60708

COUPLING, BREAK AWAY

QUICK DISCONNECT coupling, male

2шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, tee

1шт.
