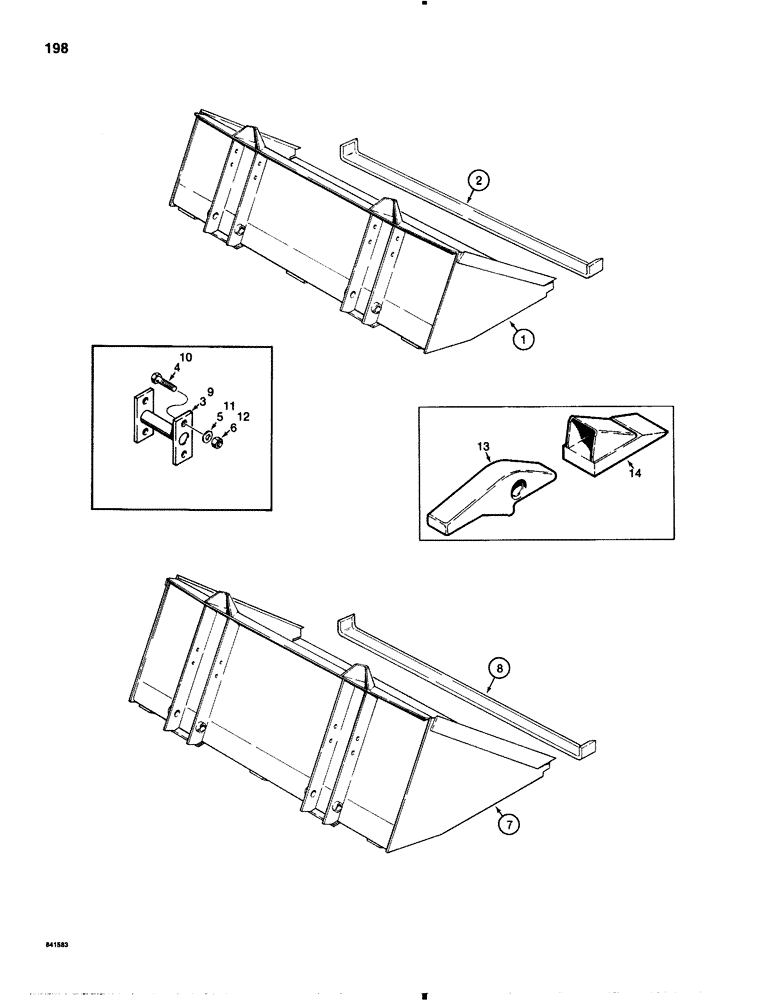

Запчасти Case IH 1845B (198) - DIRT AND UTILITY BUCKETS, 6" (152 MM) CUTTING EDGE, DIRT BUCKET, UTILITY BUCKET, BUCKET TEETH (09) - CHASSIS/ATTACHMENTS

D101469

BUCKET 73", 1854 mm wide, uses 6", 152 mm cutting edge, machinery, Inc: Ref. 1 - 6

1шт.

See Figure: 196 for buckets with a 3" 76 mm cutting edge.

1шт.

item, see Figure 2 for ordering

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET dirt

1шт.

2

D125851

EDGE

CUTTING EDGE bucket, 6" ,152 mm, dirt bucket

1шт.

See Figure: 196 for buckets with a 3" 76 mm cutting edge.

1шт.

3

D71787

PIN

tool tach, dirt bucket

2шт.

4

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Dirt bucket Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

5

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER special, dirt bucket

8шт.

6

129-107

NUT,5/8"-11, G5

Dirt bucket 5/8"-11, G5

8шт.

D101563

BUCKET, 73", 1854 mm wide, uses 6", 152 mm cutting edge, machinery, Inc: Ref. 7 - 12 , utility bucket

1шт.

See Figure: 196 for buckets with a 3" 76 mm cutting edge.

1шт.

item, see page 2 for ordering

1шт.

7

NSS

NOT SOLD SEPARAT

BUCKET utility

1шт.

8

D125851

EDGE

CUTTING EDGE bucket, 6", 152 mm, utility bucket

1шт.

See Figure: 196 for buckets with a 3" 76 mm cutting edge.

1шт.

9

D71787

PIN

tool tach, utility bucket

2шт.

10

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Utility bucket Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

11

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER special, utility bucket

8шт.

12

129-107

NUT,5/8"-11, G5

Utility bucket 5/8"-11, G5

8шт.

13

D127918

SHANK, BUCKET TOOTH

SHANK tooth, used on dirt buckets equipped with a 6", 154 mm cutting edge, bucket teeth

8шт.

See Figure: 196 for buckets with a 3" 76 mm cutting edge.

1шт.

14

T41166

TOOTH

POINT tooth, bucket teeth

8шт.
