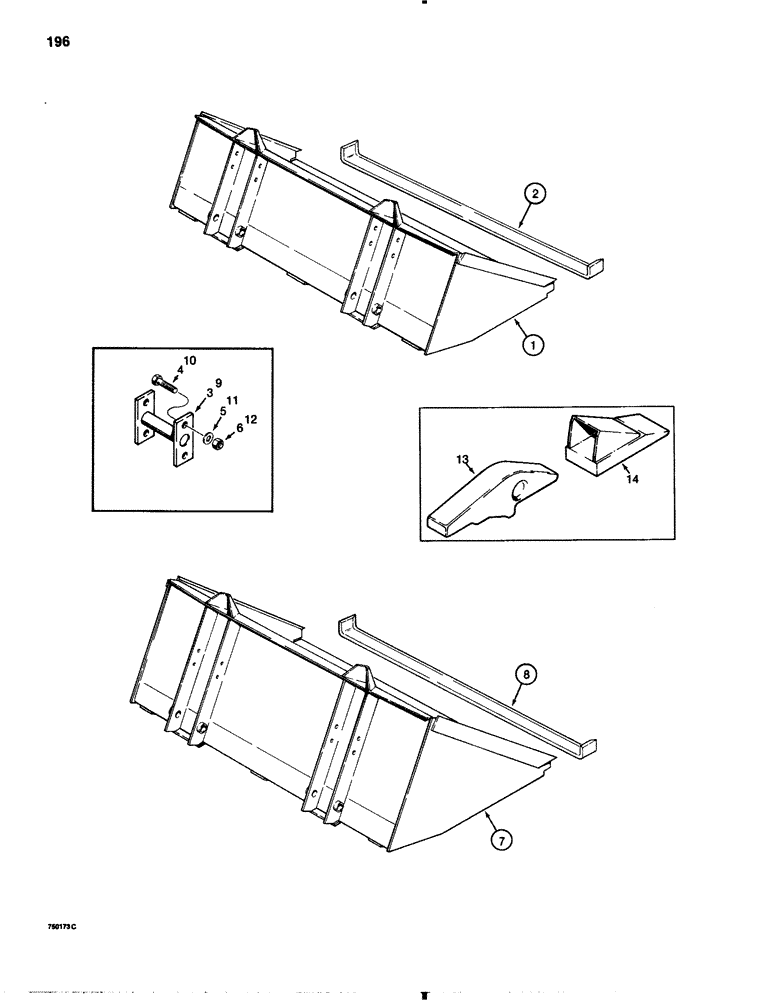

Запчасти Case IH 1845B (196) - DIRT AND UTILITY BUCKETS, 3" (76 MM) CUTTING EDGE, DIRT BUCKETS, UTILITY BUCKET, BUCKET TEETH (09) - CHASSIS/ATTACHMENTS

D17617

BUCKET, 63", 1600 mm wide, machinery item, see Figure 2 for ordering, Inc: Ref. 1 - 6

1шт.

See Figure: 198 for buckets with a 6", 152 mm cutting edge.

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKETdirt

1шт.

2

D63750

EDGE, CUTTING

CUTTING EDGE bucket, 3", 76 mm

1шт.

3

D71787

PIN

tool tach

2шт.

4

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

5

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER special

8шт.

6

129-107

NUT,5/8"-11, G5

8шт.

D17618

BUCKET, 73", 1854 mm wide, machinery item, see Figure 2 for ordering, Inc: Ref. 1 - 6

1шт.

See Figure: 198 for buckets with a 6", 152 mm cutting edge.

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET dirt

1шт.

2

D65097

EDGE, CUTTING

CUTTING EDGE bucket, 3", 76 mm

1шт.

See Figure: 198 for buckets with a 6", 152 mm cutting edge.

1шт.

3

D71787

PIN

tool tach

2шт.

4

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

5

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER special

8шт.

6

129-107

NUT,5/8"-11, G5

8шт.

D17619

BUCKET, 63", 1600 mm wide, machinery item, see Figure 2 for ordering, Inc: Ref.7 - 12, utility bucket

1шт.

7

NSS

NOT SOLD SEPARAT

BUCKET utility

1шт.

8

D63750

EDGE, CUTTING

CUTTING EDGE bucket, 3", 76 mm, utility bucket

1шт.

9

D71787

PIN

tool tach, utility bucket

2шт.

10

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Utility bucket Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

11

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER special, utility bucket

8шт.

12

129-107

NUT,5/8"-11, G5

Utility bucket 5/8"-11, G5

8шт.

D17620

BUCKET, 73", 1854 mm wide, machinery item, see Figure 2 for ordering, utility bucket, Inc: Ref. 7 - 12

1шт.

See Figure: 198 for buckets with a 6", 152 mm cutting edge.

1шт.

7

NSS

NOT SOLD SEPARAT

BUCKET utility

1шт.

8

D65097

EDGE, CUTTING

CUTTING EDGE bucket, 3", 76 mm, utility bucket

1шт.

See Figure: 198 for buckets with a 6", 152 mm cutting edge.

1шт.

9

D71787

PIN

tool tach, utility bucket

2шт.

10

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Utility bucket Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

11

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER special, utility bucket

8шт.

12

129-107

NUT,5/8"-11, G5

Utility bucket 5/8"-11, G5

8шт.

13

T41165

TOOTH

SHANK tooth, bucketteeth

1шт.

14

T41166

TOOTH

POINT tooth, bucket teeth

1шт.
