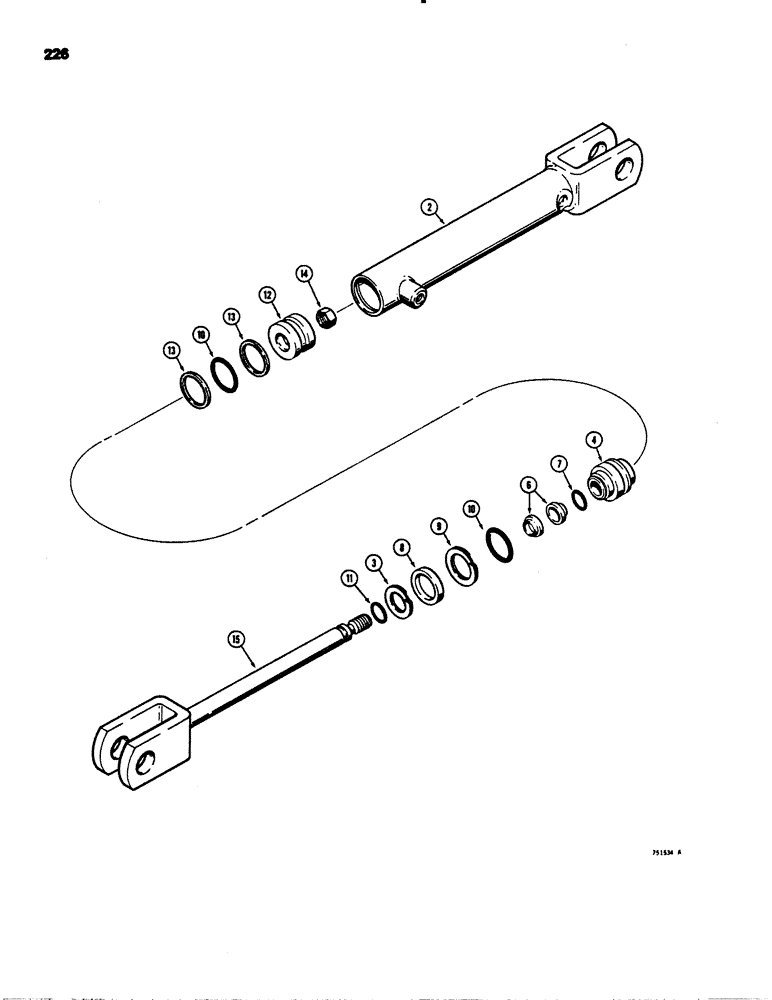

Запчасти Case IH 1845 (226) - D71057 GRAPPLE CYLINDER (35) - HYDRAULIC SYSTEMS

D71057

CYLINDER

grapple, 1-1/2", 38.1 mm ID x 6-5/8", 168.3 mm stroke, Includes Ref. 1-15

1шт.

1

RESERVED

1шт.

2

D72813

TUBE

cylinder

1шт.

3

A44654

SNAP RING,#125, 1.188", Ext Spiral

RING lock

1шт.

4

A47559

GLAND

HEAD ASSEMBLY, gland, Includes Ref. 5

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING not shown

1шт.

6

A44651

WIPER SEAL,18.49mm ID x 25.3mm OD x 3.63mm Thk

WIPER rod

2шт.

7

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

SEAL rod

1шт.

8

A44641

SPACER,31.62mm ID x 34.37mm OD x 7.7mm L

1шт.

9

A44652

SNAP RING,#150, 1.591", Int, Spiral

RING lock

1шт.

10

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

SEAL head and piston

2шт.

11

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

SEAL piston rod

1шт.

12

A44650

ATTACHMENT

PISTON

1шт.

13

S6909

SEAL

BACKUP RING

2шт.

14

131-1145

JAM NUT,5/8" - 18

NUT hex, self lock, 9/16" - 18 NF

1шт.

15

D72813

TUBE

ROD piston, 3/4", 19.05 mm OD

1шт.
