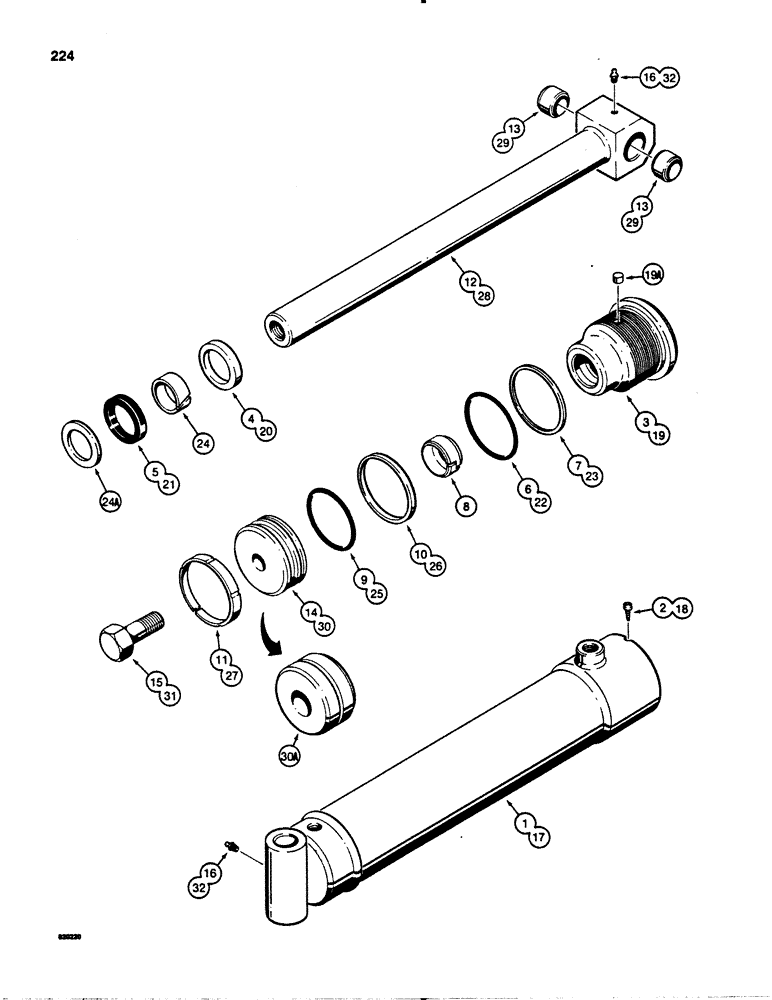

Запчасти Case IH 1845 (224) - G33744 SCARIFIER CYLINDER / G33744 SCARIFIER CYLINDER (35) - HYDRAULIC SYSTEMS

G33744

CYLINDER BLOCK

CYLINDER scarifier, 3", 76 mm dia. x 13", 330 mm stroke, Includes: Ref. 1 - 16

1шт.

Gland has Identification Ring

1шт.

1

G32271

TUBE,19.56" L

cylinder

1шт.

2

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW self tapping, No. 8-32 NC x 1"

1шт.

G34328

GLAND

ASSEMBLY, use G104222, parts list below, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod, outer

1шт.

Part of seal kit G105502

1шт.

5

D36969

CUP

SEAL piston rod

1шт.

Part of seal kit G105502

1шт.

6

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of seal kit G105502

1шт.

7

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING

1шт.

Part of seal kit G105502

1шт.

8

D27706

WIPER SEAL

WIPER piston rod, inner

1шт.

Part of seal kit G105502

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of seal kit G105502

1шт.

10

G32034

RING

BACKUP RING

1шт.

11

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING wear, piston

1шт.

Part of seal kit G105502

1шт.

12

G33753

ROD

piston, 1-1/2", 38 mm dia., Includes: Ref. 13

1шт.

13

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

rod

2шт.

14

G104108

PISTON

cylinder

1шт.

15

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

2шт.

G33744

CYLINDER BLOCK

CYLINDER scarifier, 3", 76 mm dia. x 13", 330 mm stroke, Includes: Ref. 17 - 32

1шт.

Gland is stamped with Cylinder Part Number

1шт.

17

G32271

TUBE,19.56" L

cylinder, G33744 scarifier cylinder gland is stamped with cylinder part number

1шт.

18

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW self tapping, No. 8-32 NC x 1", if used, G33744 scarifier cylinder gland is stamped with cylinder part number

1шт.

G104222

GLAND

ASSEMBLY, cylinder, Includes: Ref. 19 - 24, G33744 scarifier cylinder gland is stamped with cylinder part number

1шт.

19

NSS

NOT SOLD SEPARAT

GLAND cylinder, G33744 scarifier cylinder gland is stamped with cylinder part number

1шт.

19a

G102569

PLUG

nylon, thread locking, gland, if used, G33744 scarifier cylinder gland is stamped with cylinder part number

1шт.

20

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod, outr, G33744 scarifier cylinder gland is stamped with cylinder part number

1шт.

Part of seal kit G105502

1шт.

21

D36969

CUP

SEAL piston rod, G33744 scarifier cylinder gland is stamped with cylinder part number

1шт.

Part of seal kit G105502

1шт.

22

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

G33744 scarifier cylinder gland is stamped with cylinder part number

1шт.

Part of seal kit G105502

1шт.

23

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING, G33744 scarifier cylinder gland is stamped with cylinder part number

1шт.

Part of seal kit G105502

1шт.

24

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING, Rulon, G33744 scarifier cylinder Gland is stamped with cylinder part number

1шт.

Part of seal kit G105502

1шт.

24a

G104224

SEAL

piston rod, narrow, used in addition to Ref. 21 in some glands, G33744 scarifier cylinder is stamped with cylinder part number

1шт.

Also included in Kit G34656

1шт.

Part of seal kit G105502

1шт.

25

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

G33744 scarifier cylinder gland is stamped with cylinder part number

1шт.

Part of seal kit G105502

1шт.

26

G32034

RING

BACKUP RING, G33744 scarifier cylinder gland is stamped with cylinder part number

1шт.

Part of seal kit G105502

1шт.

27

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING wear, piston, used with G33747 piston only, G33744 scarifier cylinder gland is stamped with cylinder part number

1шт.

Part of seal kit G105502

1шт.

28

G33753

ROD

piston, 1-1/2", 38 mm dia., Includes: Ref. 29, G33744 scarifier cylinder gland is stamped with cylinder part number

1шт.

29

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

rod, G33744 scarifier cylinder gland is stamped with cylinder part number

2шт.

30

G104108

PISTON

cylinder, double groove, use G100449 wear ring, if used, G33744 scarifier cylinder gland is stamped with cylinder part number

1шт.

30a

G104108

PISTON

cylinder, single groove, Replaces: G33747 piston, if used, G33744 scarifier cylinder gland is stamped with cylinder part number

1шт.

31

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

G33744 scarifier cylinder gland is stamped with cylinder part number Hex, 3/4-16 x 2", G8, Full Thd

1шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT, G33744 scarifier cylinder gland is stamped with cylinder part number

2шт.

G105502

SEAL

KIT seal, cylinder, Includes Refs. 4, 5, 6, 7, 8, 9, 11, and 20 - 27, same as G34656 kit plus Ref. 24A above, G33744 scarifier cylinder gland is stamped with cylinder part number

1шт.

G100776

SEAL

piston rod, service option, severe heat or cold, Includes: Ref. 5 and 21, G33744 scarifier cylinder gland is stamped with cylinder part number

1шт.
