Запчасти Case IH 1845 (220) - G34926 BUCKET DUMP CYLINDER (35) - HYDRAULIC SYSTEMS

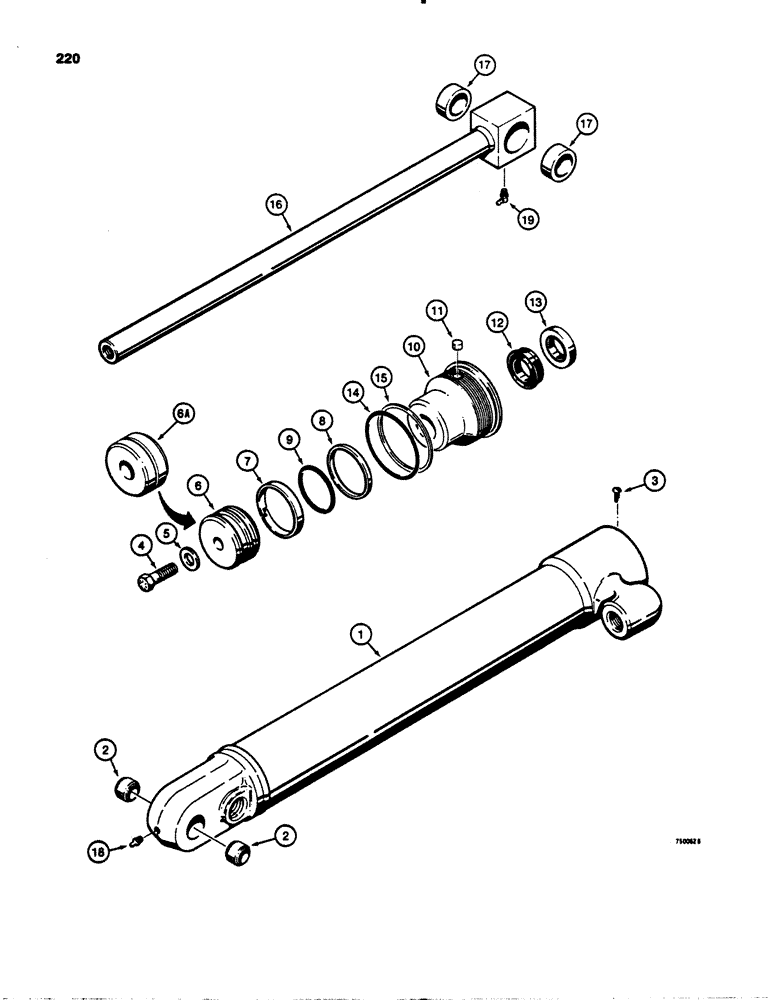

Схема запчастей Case IH 1845 - (220) - G34926 BUCKET DUMP CYLINDER (35) - HYDRAULIC SYSTEMS
19
8
9
15
2
3
4
6a
10
7
6
11
13
18
1
12
16
2
5
14
17
17

Артикул

Название

Примечание

Количество

G34926

CYLINDER

dump, 2-1/2", 63.5 mm ID x 21-1/4", 539.75 mm stroke, Includes Ref. 1-19

2шт.

118156A1R

1845 - CASE UNI-LOADER SKID STEER LOADER (NORTH AMERICA), 1845S - CASE UNI-LOADER SKID STEER LOADER; Reman for new P/N G34926

REMAN-HYD CYLINDER

2шт.

118156A1C

Return Number

CORE-HYD CYLINDER

1шт.

1

G34927

TUBE,2.5" DIA x 28.93" L

cylinder

1шт.

2

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

tube eye

2шт.

3

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW selt tapping, No. 8-32 NC x 1/4", if used

1шт.

4

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

5

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

hardened

1шт.

6

G33138

PISTON,62.94mm Bore, 31.85mm Rod, 25.4mm W

cylinder, double groove, for service use G104098

1шт.

6a

G104098

PISTON

cylinder, single groove, Replaces: G33138 piston

1шт.

7

G100714

RING

wear, used with G33138 piston only

1шт.

Part of seal kit G105507

1шт.

8

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

SEAL piston

1шт.

Part of seal kit G105507

1шт.

9

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

piston

1шт.

Part of seal kit G105507

1шт.

G103568

GLAND

ASSEMBLY, service, Includes Ref. 10-15

1шт.

10

NSS

NOT SOLD SEPARAT

GLAND

1шт.

11

G102569

PLUG

nylon, thread locking, gland, if used

1шт.

12

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

piston rod

1шт.

Part of seal kit G105507

1шт.

13

D95141

WIPER SEAL

WIPER rod, outer

1шт.

Part of seal kit G105507

1шт.

14

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of seal kit G105507

1шт.

15

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

BACKUP RING

1шт.

Part of seal kit G105507

1шт.

16

G34932

PISTON ROD

ROD piston, 1-1/4", 31.75 mm dia., Includes Ref. 17

1шт.

17

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

rod

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G105507

SEAL

KIT seal, Includes all Ref. 7, 8, 9, 12, 13, 14, and 15

1шт.

G100775

SEAL

piston rod, service option, severe heat or cold

1шт.
