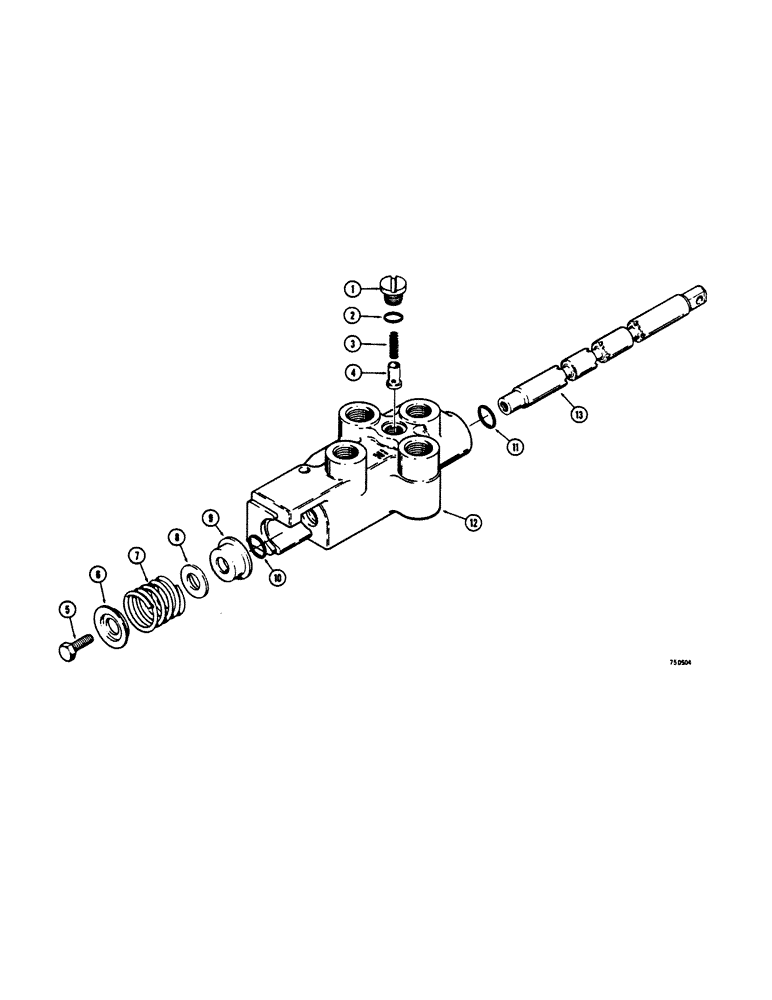

Запчасти Case IH 1845 (216[A]) - D64670 AUXILIARY CONTROL VALVE (1 SPOOL) CESSNA NO. 30511-AAK (35) - HYDRAULIC SYSTEMS

D64670

VALVE

hydraulic, Includes Ref. 1-13, D64670 auxiliary control valve (1 spool) cessna no. 30511-AAK

1шт.

1

FH730382

PLUG

check, Includes Ref. 2-4, D64670 auxiliary control valve (1 spool) cessna no. 30511-AAK

1шт.

2

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

D64670 auxiliary control valve (1 spool) cessna no. 30511-AAK

1шт.

3

FH730374

SPRING

check, D64670 auxiliary control valve (1 spool) cessna no. 30511-AAK

1шт.

4

FH730366

PLUNGER

check, D64670 auxiliary control valve (1 spool) cessna no. 30511-AAK

1шт.

5

H138248

SCREW,1/4" - 20 x 7/16"

BOLT special, D64670 auxiliary control valve (1 spool) cessna no. 30511-AAK

1шт.

6

F59116

WASHER

RETAINER spring, D64670 auxiliary control valve (1 spool) cessna no. 30511-AAK

1шт.

7

H220517

SPRING

spool, D64670 auxiliary control valve (1 spool) cessna no. 30511-AAK

1шт.

8

H746164

WASHER

special, D64670 auxiliary control valve (1 spool) cessna no. 30511-AAK

1шт.

9

H52902

CAP

RETAINER spring, D64670 auxiliary control valve (1 spool) cessna no. 30511-AAK

1шт.

10

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

D64670 auxiliary control valve (1 spool) cessna no. 30511-AAK

1шт.

11

F37887

O-RING

D64670 auxiliary control valve (1 spool) cessna no. 30511-AAK

1шт.

12

NSS

NOT SOLD SEPARAT

BODY, D64670 auxiliary control valve (1 spool) cessna no. 30511-AAK

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL, D64670 auxiliary control valve (1 spool) cessna no. 30511-AAK

1шт.
