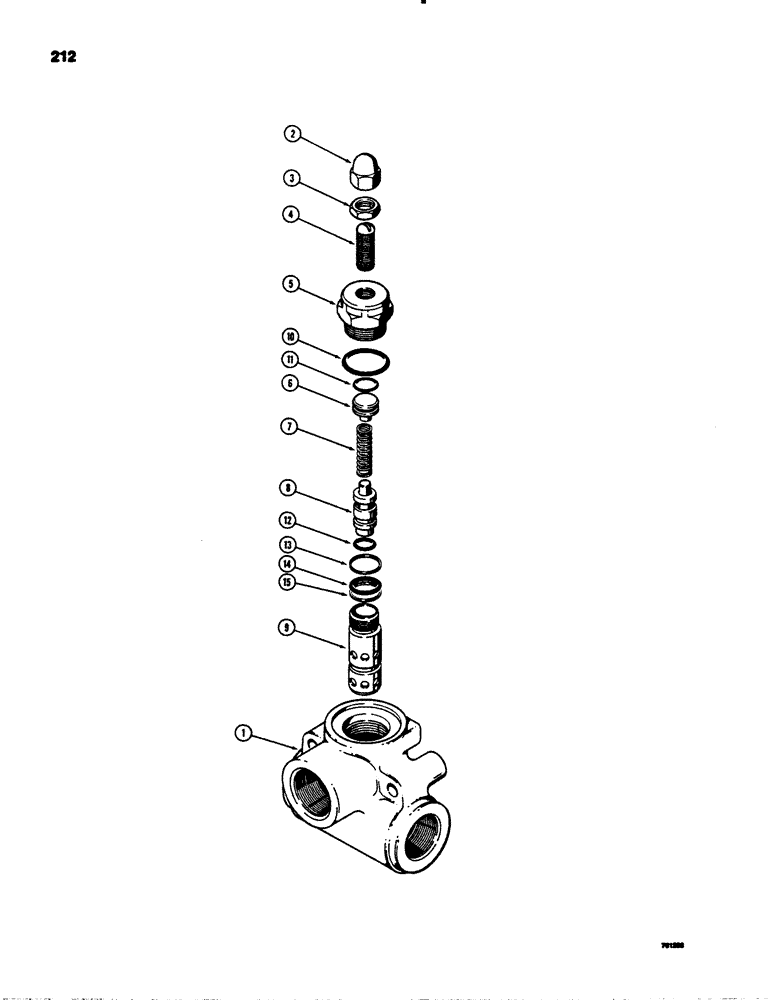

Запчасти Case IH 1845 (212) - D77897 RELIEF VALVE (35) - HYDRAULIC SYSTEMS

D77897

VALVE

RELIEF VALVE Includes Ref. 1-15

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

129-526

CROWN NUT,Low, 3/8" - 24

acorn, 3/8" - 24 NF

1шт.

3

86585245

SPECIAL NUT,JAM, 5/8" - 18

hex, lock, 3/8" - 24 NF

1шт.

4

D55933

SCREW

adjusting

1шт.

5

D55934

HOUSING

BODY relief, upper

1шт.

6

D55932

PISTON

SEAT spring

1шт.

7

D55931

SPRING

poppet

1шт.

8

D55936

HOOK

POPPET relief

1шт.

9

D55935

HOUSING

BODY relief, lower

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4" ID

1шт.

11

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

3/8" ID

1шт.

12

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

1шт.

13

L30443

BACK-UP RING,0.547" ID x 0.049" Width

WASHER backup

1шт.

14

D65918

BRACKET

O-RING 9/16" ID

1шт.

15

W12244

RING

WASHER backup

1шт.
