Запчасти Case IH 1845 (206) - AUXILIARY HYDRAULIC CIRCUITS, LOADER ARM AND REAR HYDRAULIC CIRCUITS WITH SELECTOR VALVE (35) - HYDRAULIC SYSTEMS

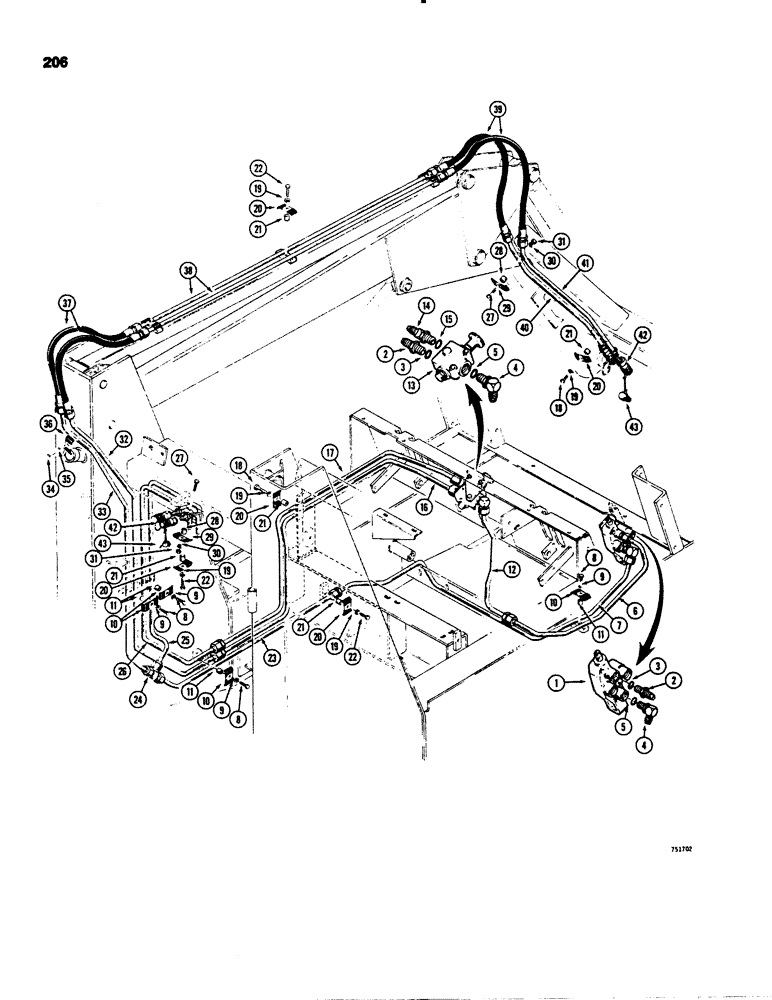

Схема запчастей Case IH 1845 - (206) - AUXILIARY HYDRAULIC CIRCUITS, LOADER ARM AND REAR HYDRAULIC CIRCUITS WITH SELECTOR VALVE (35) - HYDRAULIC SYSTEMS
29
28
18
33
2
22
24
7
8
36
9
21
32
3
10
29
4
15
10
6
31
37
4
10
23
30
11
22
21
20
8
8
1
18
41
19
14
11
9
5
21
2
16
27
17
26
39
20
21
20
19
19
40
43
27
13
22
9
9
21
28
34
11
12
31
19
20
43
38
20
35
42
5
30
3
42
25
19

Артикул

Название

Примечание

Количество

1

D64670

VALVE

auxiliary, parts list Figure 216 (1)

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Straight, Male, Incl. Ref 3 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

FITTING adjustable, 90 degree, Includes Ref. 5

2шт.

6

D87629

HYD TUBE,0.5" OD x 20.6, 5.46" L

TUBE hydraulic

1шт.

7

D87627

HYD TUBE,0.5" OD x 23.93, 27.76" L

TUBE hydraulic

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

5шт.

9

92-6

LOCK WASHER,3/8"

5шт.

10

D42504

CLAMP

tube

5шт.

11

D33551

BUSHING

SPACER clamp

5шт.

12

D69440

TUBE,0.5" OD x 18.1, 2" L

hydraulic

1шт.

13

G34981

VALVE

selector, parts list Figure 216

1шт.

14

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

FITTING adjustable, 45 degree, Incl. Ref 15

1шт.

16

D69442

HYD TUBE,0.5" OD x 33.3, 15.75" L

TUBE hydraulic

1шт.

17

D69444

TUBE,0.5" OD x 33.8, 16.57" L

hydraulic

1шт.

18

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex head, 5/16" - 18 NC x 1-1/4"

2шт.

19

92-5

LOCK WASHER,5/16"

7шт.

20

R17319

CLAMP

tube

7шт.

21

D33551

BUSHING

SPACER clamp

7шт.

22

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex head, 5/16" - 18 NC x 1-1/4"

5шт.

23

D70297

HYD TUBE,0.5" OD x 4.58, 33.15" L

TUBE hydraulic

1шт.

24

218-594

TEE,3/4"-16, 37 Degree

street

1шт.

25

D69446

TUBE,0.5" OD x 26.47, 20.6" L

hydraulic

1шт.

26

D69452

HYD TUBE,0.5" OD x 37, 18.58" L

TUBE hydraulic

1шт.

27

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

hex head, 5/16"-18 NC x 1-1/2"

2шт.

28

D33551

BUSHING

SPACER clamp

1шт.

29

R17319

CLAMP

tube

1шт.

30

92-5

LOCK WASHER,5/16"

1шт.

31

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" - 18 NC

1шт.

32

D69450

HYD TUBE,0.5" OD x 48.77, 22.35" L

TUBE hydraulic

1шт.

33

D69448

HYD TUBE,0.5" OD x 38.6, 5.95" L

TUBE hydraulic

1шт.

34

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

35

92-5

LOCK WASHER,5/16"

1шт.

36

R17319

CLAMP

tube

1шт.

37

D61484

HOSE

hydraulic, 29", 737 mm long

2шт.

38

D64344

TUBE

hydraulic

2шт.

39

D70824

HOSE

hydraulic, 24", 610 mm long

2шт.

40

D69276

HYD TUBE,0.5" OD x 21.24, 5.55" L

TUBE hydraulic

1шт.

41

D69274

HYD TUBE,0.5" OD x 20.06, 5.43" L

TUBE hydraulic

1шт.

42

D60707

COUPLING, BREAK AWAY

QUICK DISCONNECT female

4шт.

43

D62402

PLUG

dust

4шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
