Запчасти Case IH 1845 (194) - LOADER DUMP HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

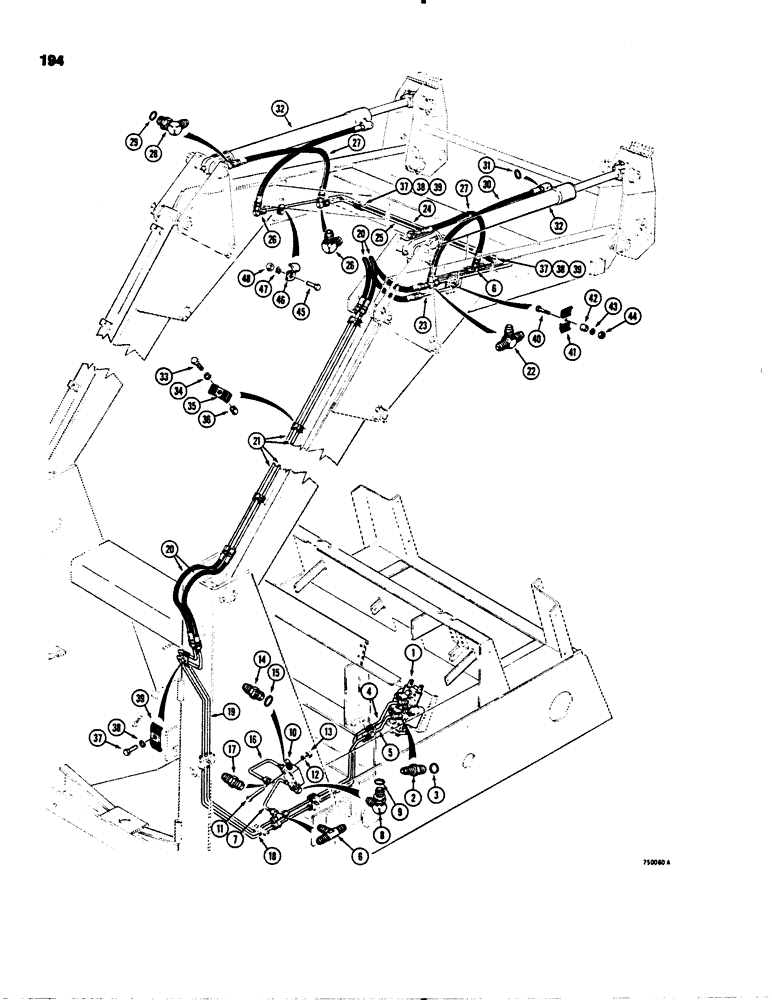

Схема запчастей Case IH 1845 - (194) - LOADER DUMP HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS
4
33
27
8
23
6
30
1
34
11
13
25
10
37
44
7
37
48
22
2
29
24
20
28
26
18
20
39
12
42
47
16
39
6
5
27
38
21
19
14
9
3
41
26
31
46
40
32
36
45
32
15
35
39
38
17
37
38
43

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE two spool, parts list Figure 208

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting, straight, male, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D68847

HYD TUBE,0.5" OD x 19.11, 18.32" L

TUBE at valve, upper

1шт.

5

D68849

HYD TUBE,0.5" OD x 18.4, 11.8" L

TUBE at valve, lower

1шт.

6

218-594

TEE,3/4"-16, 37 Degree

male

2шт.

7

D64468

TUBE

to relief valve

1шт.

8

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

FITTING 90 degree, Includes Ref. 9

1шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

D64493

VALVE

RELIEF VALVE parts list Figure 210

1шт.

11

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

12

92-5

LOCK WASHER,5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" x 18 NC

2шт.

14

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

FITTING straight, male connector, Includes Ref. 15

1шт.

15

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

16

D64470

TUBE

relief, Serial Range: valve-tank

1шт.

17

218-4444

FITTING straight connector

1шт.

18

D69081

HYD TUBE,0.5" OD x 43.5, 21.2" L

TUBE hydraulic

1шт.

19

D69079

HYD TUBE,0.5" OD x 42.05, 21.1" L

TUBE hydraulic

1шт.

20

D61484

HOSE

hydraulic, 29", 736.6 mm long

4шт.

21

D64344

TUBE

hydraulic

2шт.

22

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

male

1шт.

23

D68609

HYD TUBE,0.5" OD x 9.2, 2.27" L

TUBE hydraulic

1шт.

24

D71682

TUBE,0.5" OD x 14.7, 32.24" L

hydraulic, crossover

1шт.

25

D67055

PIPE

TUBE hydraulic, crossover

1шт.

26

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

male 90º, 3/4"-16, 37º x 3/4"-16, 37º

2шт.

27

D64604

HOSE,9.53mm ID x 558.8mm L, SAE 100R1

hydraulic, 22", 559 mm long

2шт.

28

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

FITTING adjustable, 90 degree, Includes Ref. 29

4шт.

30

D70254

HOSE,9.53mm ID x 762mm L, SAE 100R2

hydraulic, 30", 762 mm long, Includes Ref. 31

2шт.

32

G34926

CYLINDER

dump, parts list Figure 220

2шт.

118156A1R

1845 - CASE UNI-LOADER SKID STEER LOADER (NORTH AMERICA), 1845S - CASE UNI-LOADER SKID STEER LOADER; Reman for new P/N G34926

REMAN-HYD CYLINDER

2шт.

118156A1C

Return Number

CORE-HYD CYLINDER

1шт.

33

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex head, 5/16" - 18 NC x 1-1/4"

6шт.

34

92-5

LOCK WASHER,5/16"

6шт.

35

R17319

CLAMP

tube

7шт.

36

D33551

BUSHING

SPACER clamp

6шт.

37

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

38

92-5

LOCK WASHER,5/16"

2шт.

39

R17319

CLAMP

tube

2шт.

40

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

hex head, 5/16"-18 NC x 1-1/2"

1шт.

41

R17319

CLAMP

tube

1шт.

42

D33551

BUSHING

SPACER clamp

1шт.

43

92-5

LOCK WASHER,5/16"

1шт.

44

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" - 18 NC

1шт.

45

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

46

49778

CLAMP

tube

1шт.

47

92-5

LOCK WASHER,5/16"

1шт.

48

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" - 18 NC

1шт.

29

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
