Запчасти Case IH 1845 (192) - BASIC EQUIPMENT HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

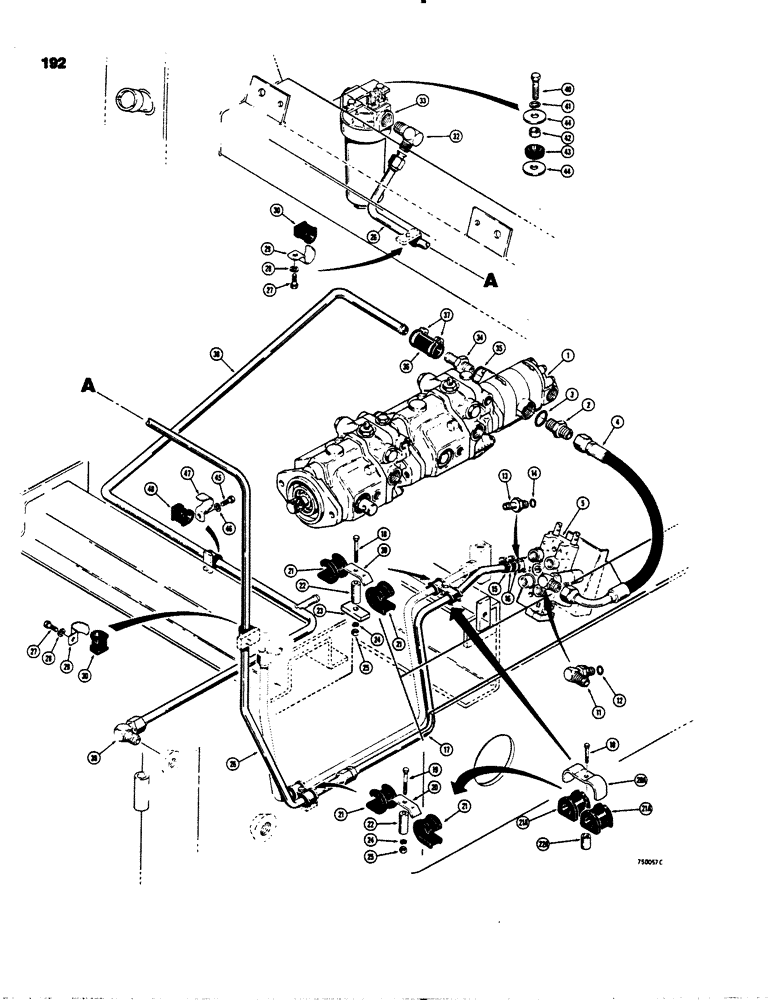

Схема запчастей Case IH 1845 - (192) - BASIC EQUIPMENT HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS
22
22a
21a
10
16
40
29
30
4
24
34
21
11
13
42
21
27
27
17
21
36
43
20
33
47
20
44
33
23
18
46
20a
4
3
25
26
35
18
15
22
25
36
29
44
28
14
2
24
28
12
45
21
48
32
37
26
5
1
21a
30

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP tandem, parts list Figure 152

1шт.

2

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING straight, male, Includes Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D69011

HOSE

ASSEMBLY, hydraulic

1шт.

5

REF

INSTRUCTION

VALVE hydraulic, parts list Figure 208

1шт.

6

RESERVED

1шт.

7

RESERVED

1шт.

8

RESERVED

1шт.

9

RESERVED

1шт.

10

RESERVED

1шт.

11

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING adjustable, 90 degree, Includes Ref. 12

1шт.

13

217-398

FITTING,3/4" Hose Barb x 7/8" - 14 Male ORB

hose barb, Includes Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

D24728

HOSE

3/4" ID x 4-1/2", 19 mm x 114.3 mm

1шт.

16

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

17

D69012

TUBE,0.75" OD x 22.4, 7.74" L

hydraulic, models without auxiliary hydraulics

1шт.

17

REF

INSTRUCTION

TUBE hydraulic, models with auxiliary hydraulics, see Figure 201

1шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1-2шт.

19

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Used with D67447 clamp Hex, 3/8"-16 x 2 1/4", G5

1шт.

20

D67447

CLAMP

tube, if used

2шт.

20a

D74185

CLAMP

tube, if used

2шт.

21

D95794

PAD

rubber, used with D67447 clamp

4шт.

21a

D74182

GROMMET,3/4" ID x 1.46" L

PAD rubber, used with D74185 clamp

4шт.

22

D53393

SPACER

clamp, used with D67447 clamp

2шт.

22a

D121476

BUSHING

SPACER clamp, used with D74158 clamp

2шт.

23

D76302

BLOCK

1шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

2шт.

26

D68809

TUBE,0.75" OD x 32.98, 19.47" L

hydraulic

1шт.

27

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

D74192

CLAMP

tube

2шт.

30

D74182

GROMMET,3/4" ID x 1.46" L

PAD rubber

2шт.

31

RESERVED

1шт.

32

218-1046

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

FITTING male, 90 degree

1шт.

33

D64076

FILTER

oil, parts list Figure 214

1шт.

34

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

Connector hose barb, Includes Ref. 35 1" Hose X 1 5/16"-12 ORB, Beaded

1шт.

35

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

36

R12351

LARGE HOSE

HOSE 1" ID x 4", 25.4 mm x 101.6 mm long

1шт.

37

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP worm screw type

2шт.

38

D69024

TUBE,1" OD x 46.06, 26" L

hydraulic

1шт.

39

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

FITTING male, 90 degree

1шт.

40

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

41

92-8

LOCK WASHER,1/2"

2шт.

42

F20779

SCREW

SPACER

2шт.

43

H114272

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

CUSHION rubber

2шт.

44

A31223

WASHER flat

4шт.

45

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

46

92-6

LOCK WASHER,3/8"

1шт.

47

D68846

CLAMP

tube

1шт.

48

D67297

BLOCK

PAD rubber

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
