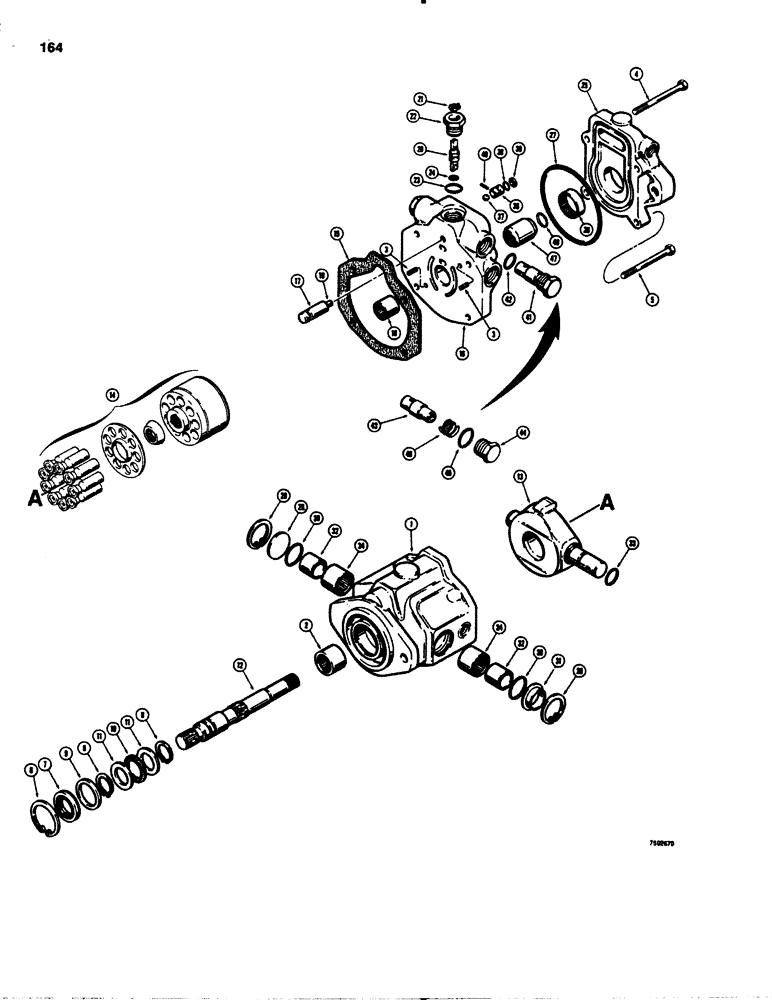

Запчасти Case IH 1845 (164) - D66340 VARIABLE DISPLACEMENT PUMP, CESSNA NO. 70442-DAF (35) - HYDRAULIC SYSTEMS

D66340

PUMP

variable displacement, right hand drive, order D75925 for service, Includes Ref. 1-43 and P/N D80497

1шт.

1

D73658

HOUSING

front, Includes Ref. 2-3

1шт.

2

F60368

NEEDLE BEARING

BEARING housing

1шт.

3

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

4

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

5

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

hex head, 3/8" - 16 NC x 3-3/4"

2шт.

6

D41419

RING

RETAINING RING

1шт.

Part of repair kit D73637

1шт.

7

D73667

SEAL,28.57mm ID x 50.98mm OD x 6.35mm Thk

shaft

1шт.

8

F62235

SNAP RING,#112, Ext

Ring, Snap, #112, Ext

2шт.

9

D66330

WASHER

seal

1шт.

10

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

BEARING thrust

1шт.

11

C13212

WASHER

RACE thrust bearing

2шт.

12

D66366

SHAFT

drive

1шт.

13

NSS

NOT SOLD SEPARAT

SWASH PLATE right hand

1шт.

Repair kit D77395 replaces Ref. 13 and 14 as a set

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON BLOCK ASSEMBLY

1шт.

Repair kit D77395 replaces Ref. 13 and 14 as a set

1шт.

15

N7804

GASKET

housing

1шт.

Part of repair kit D73637

1шт.

D66361

PLATE

BACKING PLATE ASSEMBLY, Includes Ref. 16-19, P/N D66362

1шт.

16

NSS

NOT SOLD SEPARAT

PLATE backing

1шт.

17

NSS

NOT SOLD SEPARAT

STOP cam

1шт.

18

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING shaft

1шт.

19

NSS

NOT SOLD SEPARAT

ROLL PIN 3/8" x 1-1/2"

1шт.

D66362

VALVE

tow, Includes Ref. 20-24

10шт.

20

NSS

NOT SOLD SEPARAT

SPREADER

1шт.

21

G46146

SNAP RING,#37, Ext

Ring, Snap, #37, Ext

1шт.

22

NSS

NOT SOLD SEPARAT

SEPARATOR plug

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

large

1шт.

24

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

small

1шт.

25

N6467

ADAPTER

HOUSING adapter, Includes Ref. 26-33

1шт.

26

REF

INSTRUCTION

BEARING adapter, do not replace

1шт.

27

D63347

O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro

1шт.

Part of repair kit D73637

1шт.

28

NLS

NO LONGER SERVICED

Ring, Snap, 1.625", Int, #162

2шт.

Part of repair kit D73637

1шт.

29

D66359

COVER

trunnion

1шт.

30

A62193

O-RING,1.424" ID x 1.63" OD

2шт.

Part of repair kit D73637

1шт.

31

D66354

SLEEVE

cover

2шт.

32

D66352

BUSHING

RACE bearing

2шт.

33

D73669

O-RING

O-RING

1шт.

Part of repair kit D73637

1шт.

REF

INSTRUCTION

PUMP

1шт.

34

A14858

NEEDLE BEARING,Needle, 28.56mm ID x 34.94mm OD x 19.05mm W

BEARING needle

2шт.

35

D61966

VALVE

CHECK VALVE not shown, Includes Ref. 36-40

2шт.

36

NSS

NOT SOLD SEPARAT

BODY check

1шт.

37

211-309

BALL

steel, 5/16" diameter

1шт.

38

D61967

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

Part of repair kit D73637

1шт.

39

D54861

BACK-UP RING

WASHER backup

1шт.

Part of repair kit D73637

1шт.

40

138-37

LOCK PIN,3/32" x 1/2", Slotted

PIN, 3/32" x 1/2", Slotted

1шт.

D66351

VALVE

RELIEF VALVE early production, for service order D66351, Ref. 43, and D80497, Ref. 44, 45, and 46, Includes Ref. 41-42

2шт.

41

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY

1шт.

42

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

Part of repair kit D73637

1шт.

43

D66351

VALVE

RELIEF VALVE used with Ref. 44, 45, 46, if used

2шт.

D80497

PLUG

ASSEMBLY, used with Ref. 43, Includes Ref. 44-46

2шт.

44

NSS

NOT SOLD SEPARAT

PLUG

1шт.

45

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

plug

1шт.

Part of repair kit D73637

1шт.

46

D80498

SPRING

internal, plug

1шт.

47

D66356

SPLINED COUPLING

COUPLER shaft, not included with pump, order separately

1шт.

48

D66349

RING, SNAP

RING lock, not included with pump, order separately

1шт.

D73637

KIT

repair, Includes Refs. 6, 15, 27, 28, 30, 33, 38, 39, 42 and 45, Figures 152, 156 thru 170

1шт.

D77395

KIT

repair, Replaces: Refs.13 and 14 as a set. This repair kit changes D66340 pump to D75925 pump, order parts form Figure 168

1шт.
