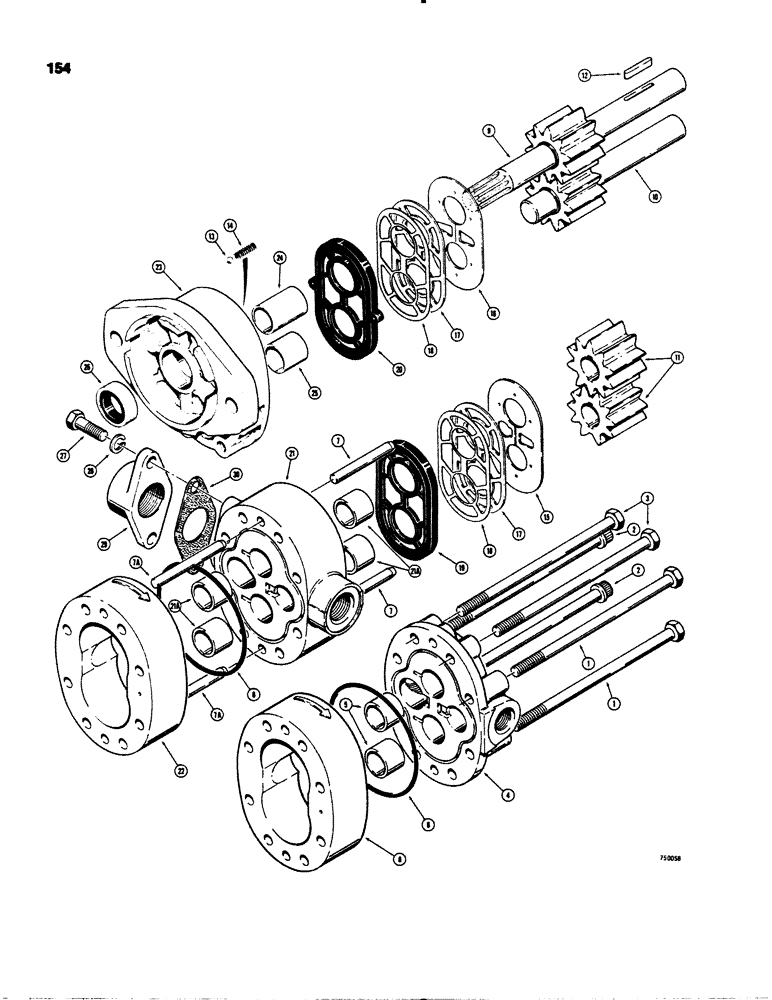

Запчасти Case IH 1845 (154) - D82186 AND D71203 DUAL PUMP (35) - HYDRAULIC SYSTEMS

D71203

PUMP

hydraulic, CESSNA no. 24388 RAJ, order D82186 for service

1шт.

363595A1R

REMAN-HYD PUMP

1845, 1845S Reman for new P/N D71203

1шт.

363595A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

D82186

PUMP

hydraulic, CESSNA no. 24388-RAM, Includes Ref. 1-30

1шт.

363595A1R

REMAN-HYD PUMP

1845, 1845S Reman for new P/N D82186

1шт.

363595A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

113-115

BOLT,Hex, 5/16" - 18 x 6", Gr 5

2шт.

2

166-40

12 PT SCREW,Flg, 5/16" - 18 x 6", Gr 8

BOLT ferry cap, 12 point, 5/16" - 18 NC x 6"

2шт.

3

13-592

BOLT,Hex, 5/16" - 18 x 5-3/4", Gr 5

4шт.

D71204

COVER

rear, used on D71203 pump, use N6031 for service

1шт.

4

N6031

COVER

rear, used on D82186 pump, Includes Ref. 5

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING cover

2шт.

6

F30415

O-RING,3" ID

2шт.

Part of seal kit N6030

1шт.

7

A7975

PIN

DOWEL PIN 2-1/4", 57 mm long

2шт.

7a

D51707

PIN

DOWEL PIN 2-1/2", 64 mm long

2шт.

8

D71206

HOUSING

BODY rear

1шт.

9

D71207

GEAR

AND SHAFT drive

1шт.

10

D71208

GEAR

idler, used on D71203 pump, use N6032 for service

1шт.

10

N6032

GEAR

idler, used on D82186 pump

1шт.

11

D71205

GEAR

rear

2шт.

12

D71209

KEY

1/8" x 3/16" x 13/32"

2шт.

13

211-306

BALL,7/32" Dia

steel

1шт.

Part of seal kit N6030

1шт.

14

F9883

SPRING

ball

1шт.

Part of seal kit N6030

1шт.

15

H325613

DIAPHRAGM

center body

1шт.

Part of seal kit N6030

1шт.

16

D77645

DIAPHRAGM

front cover

1шт.

17

H366922

GASKET

backup

2шт.

18

H262477

GUARD

PROTECTOR gasket

2шт.

19

H264994

SEAL

diaphragm, center body

1шт.

Part of seal kit N6030

1шт.

20

H262469

SEAL

diaphragm, front cover

1шт.

Part of seal kit N6030

1шт.

21

N6618

HOUSING

BODY center, used on D71203 pump

1шт.

21

H226910

PLATE ASSY.

BODY center, used on D82186 pump, Includes Ref. 21A

1шт.

21a

NSS

NOT SOLD SEPARAT

BUSHING body

4шт.

22

D56912

HOUSING

BODY front

1шт.

23

R33009

COVER

front, mounting, used on D71203 pump

1шт.

23

R33009

COVER

front, mounting, used on D82186 pump, Includes Ref. 24-25

1шт.

24

NSS

NOT SOLD SEPARAT

BUSHING cover, long

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING cover, short

1шт.

26

F11406

SEAL

shaft

1шт.

Part of seal kit N6030

1шт.

27

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

hex head, 3/8" - 16 NC x 1"

2шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

H173831

ADAPTER

PORT adapter

1шт.

30

H173823

GASKET

port

1шт.

N6030

SEAL KIT

seal, Includes Refs. 6, 13, 14, 15, 19, 20 and 26

1шт.
