Запчасти Case IH 1845 (092) - FUEL FILTER, (188) DIESEL ENGINE (10) - ENGINE

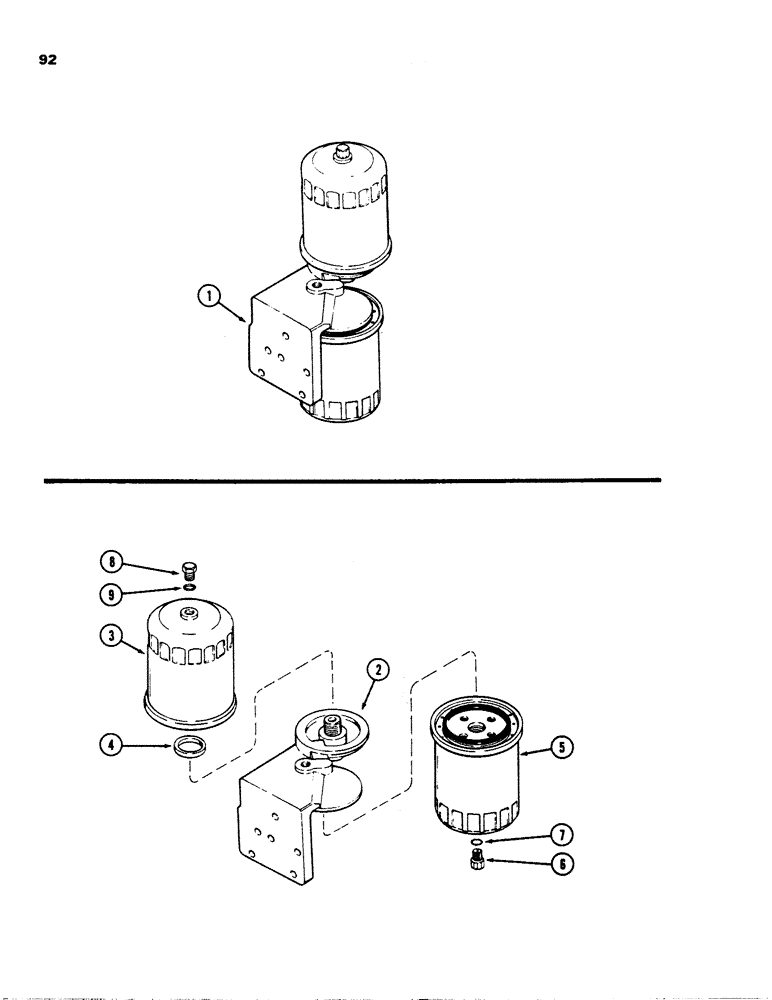

Схема запчастей Case IH 1845 - (092) - FUEL FILTER, (188) DIESEL ENGINE (10) - ENGINE
4
3
8
6
5
9
7
2
1

Артикул

Название

Примечание

Количество

1

A154934

FILTER

ASSEMBLY, fuel, Replaces: A51739, Includes Ref. 2 and P/N A151281

1шт.

2

A154909

HEAD

filter base, Replaces: A51738

1шт.

A151281

FUEL FILTER

FILTER KIT fuel, Includes Ref. 3-5

1шт.

3

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY, secondary, 15/16" threads

1шт.

4

A42315

GASKET

filter to head, 15/16" x 1-1/4" x 1/4", 23.81 mm x 31.75 mm x 6.35 mm

1шт.

5

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY, primary, threads, 13/16"

1шт.

6

G49080

PLUG

drain, primary filter, 12 point head, nylon, 3/8" NF

1шт.

7

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, drain plug

1шт.

8

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Assy, Drain, Secondary filter, Includes Ref. 9 Hex Hd, 3/8"-24 ORB

1шт.

9

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, drain plug

1шт.

Please be advised, the 1845's, 1840, & 1838 Uniloaders do not, and did not, come from the plant with In-Line Fuel Filters. The 1835 did come with an In-Line Fuel Filter (H413666). This has been verified by Engineering. The D145357 does not show being used on Skid Steers. Hicks, George R. 6-4-97

1шт.
