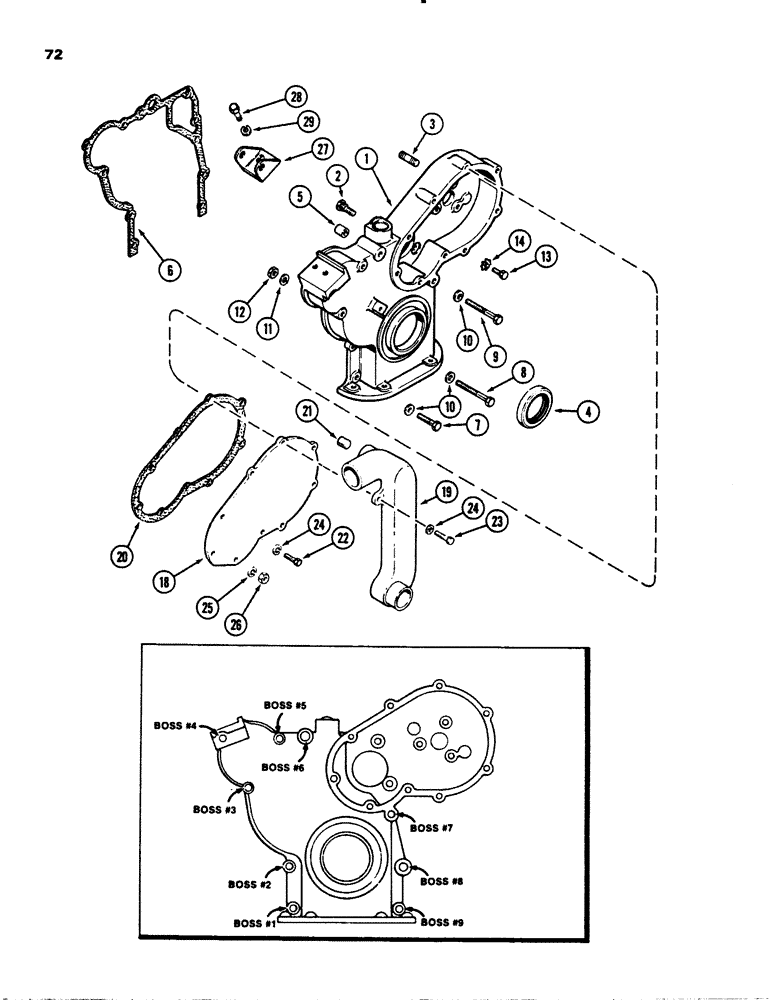

Запчасти Case IH 1845 (072) - TIMING GEAR COVER, (188) DIESEL ENGINE (10) - ENGINE

1

A51981

COVER

ASSEMBLY, timing gear, Includes Ref. 2-4

1шт.

2

A51649

STUD

timing gear cover

2шт.

3

G102128

BOLT

injection pump, 3/8" NC x 1-7/16"

3шт.

4

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

oil, crankshaft, front, 2" x 3" x 1/2", 50.8 mm x 76.2 mm x 12.7 mm

1шт.

5

A29442

RING

DOWEL cover locating, 9/16" x 3/8" x 5/8", 14.29 mm x 9.52 mm x 15.87 mm

2шт.

6

A51529

GASKET

, Serial Range: cover-block

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover, Boss #1, 2, 9 Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

cover, Boss #8, 3/8" x 1-1/2" NC hex

1шт.

8

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

cover, Boss #7, 3/8" x 2-3/4" NC hex

1шт.

9

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

cover, Boss #6, 3/8" x 3" NC hex

1шт.

9

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

cover, Boss #3, 4, 5, 3/8" x 3-1/2" NC hex

3шт.

10

A50820

WASHER

3/8" x 3/4" x 1/8", 9.52 mm x 19.05 mm x 3.17 mm

9шт.

10

95-6

WASHER,3/8"

7/16" x 1" x 1/16", 11.11 mm x 25.4 mm x 1.59 mm

1шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

25-106

NUT,3/8"-16, G5

3/8" NC hex

3шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Cover (inside) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

14

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

18

A51908

COVER

COVER injection pump gears

1шт.

19

A51907

TUBE

water passage

1шт.

20

A39925

GASKET

drive gear cover

1шт.

21

221-843

PLUG,Hex Soc, 3/8"-18

tube, socket head, 3/8" PT

1шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

5шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

cover, 3/8" x 1-1/2" NC hex

2шт.

24

A50820

WASHER

3/8" x 3/4" x 1/8", 9.52 mm x 19.05 mm x 3.17 mm

7шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

25-106

NUT,3/8"-16, G5

3/8" NC hex

2шт.

27

A160391

BRACKET

alternator mounting, Replaces: A38492

1шт.

28

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Bracket to cover Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.
