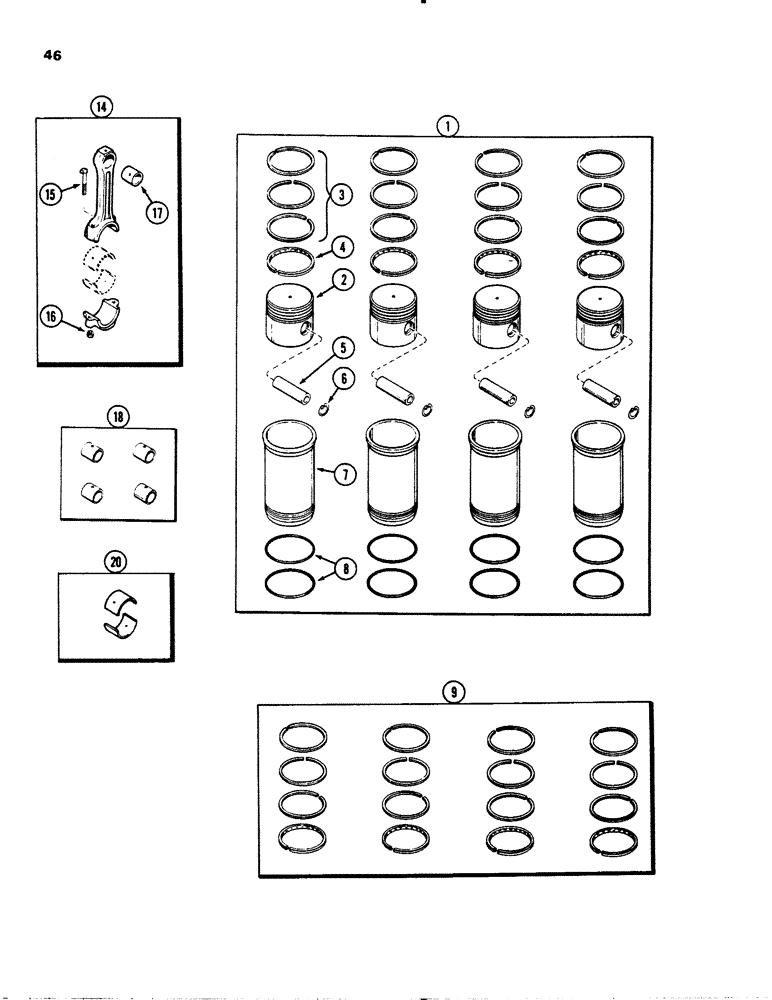

Запчасти Case IH 1845 (046) - PISTONS, (159) SPARK IGNITION ENGINE, CONNECTING RODS (10) - ENGINE

1

G11958

SET

PISTON ASSEMBLY, set of 4, Includes Ref. 2-8

1шт.

2

G2105

PISTON

engine

4шт.

3

G4810

RING, PISTON

RING compression, see Ref. 9

12шт.

4

G4811

RING, PISTON

RING oil control, see Ref. 9

4шт.

5

A36060

PIN

piston

4шт.

6

A26915

RING, SNAP

RING piston pin retaining

8шт.

7

G2104

SLEEVE CYLINDER

liner

4шт.

8

G46909

O-RING,3.112" ID x 3.344" OD

sleeve packing

8шт.

9

G11994

PACKAGE, RINGS

RING KIT piston re ring, set of 4

1шт.

14

G11172

STEM

ROD ASSEMBLY, connecting, Includes Ref. 15-17, connecting rods

4шт.

15

G11701

BOLT

bearing cap, connecting rods

2шт.

16

A51904

NUT

NUT bearing cap bolt, 3/8" NF hex, connecting rods

2шт.

17

NSS

NOT SOLD SEPARAT

BUSHING piston pin, order Ref.18, connecting rods

1шт.

18

G11922

BUSHING

SET piston pin, set of 4, connecting rods

1шт.

20

A46050

BEARING LINER,53.66mm ID x 56.82mm OD x 26.67mm W

INSERT connecting rod bearing, standard, set of 2, connecting rods

4шт.

20

A46051

BEARING LINER

INSERT connecting rod bearing, set of 2, 0.002" undersize, 0.0508 mm, connecting rods

4шт.

20

A46052

BEARING LINER,53.4mm ID x 56.82mm OD x 26.67mm W

INSERT connecting rod bearing, set of 2, 0.010" undersize, 0.254 mm, connecting rods

4шт.

20

A46053

BEARING LINER,53.15mm ID x 56.82mm OD x 26.67mm W

INSERT connecting rod bearing, set of 2, 0.020" undersize, 0.508 mm, connecting rods

4шт.

20

A46054

BEARING LINER

INSERT connecting rod bearing, set of 2, 0.030" undersize, 0.762 mm, connecting rods

4шт.
