Запчасти Case IH 1845 (018) - MUFFLER AND EXHAUST SYSTEM (10) - ENGINE

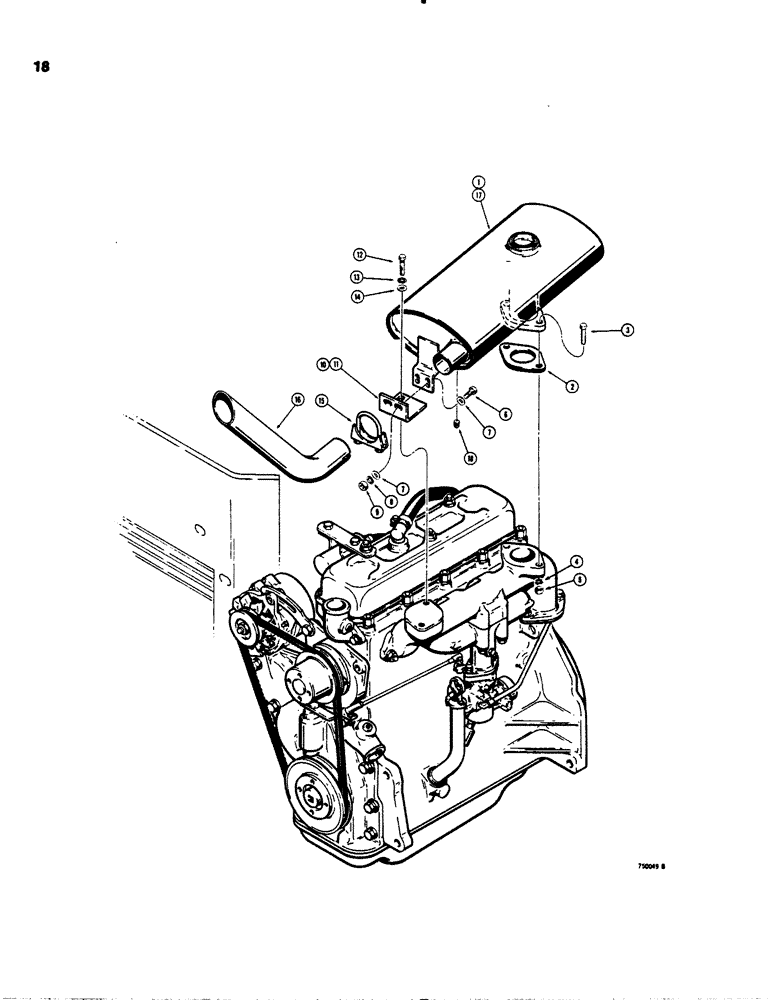

Схема запчастей Case IH 1845 - (018) - MUFFLER AND EXHAUST SYSTEM (10) - ENGINE
17
6
13
9
14
15
1
8
18
2
7
10
11
16
7
12
5
3
4

Артикул

Название

Примечание

Количество

1

D64008

MUFFLER

exhaust, standard

1шт.

2

G46853

MANIFOLD GASKET

muffler

1шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex head, 3/8" - 16 NC x 1-1/2"

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

2шт.

6

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

7

95-5

WASHER,3/8" x 7/8" x .083"

flat, 5/16"

4шт.

8

92-5

LOCK WASHER,5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" - 18 NC

2шт.

10

D74927

BRACKET

mounting, diesel models

1шт.

11

D74928

BRACKET

mounting, gasoline models

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

195-25

WASHER,3/8"

flat, 3/8"

2шт.

15

R11500

CLAMP

ASSEMBLY, includes hardware

1шт.

16

D71866

PIPE

exhaust

1шт.

17

D69336

MUFFLER

exhaust, spark arresting, Includes Ref. 18

1шт.

18

217-76

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG hex head, brass, 1/4" NPT

1шт.

Выбрано товаров: 18
